6GHz 802.11ax Wireless Bridge

Unlocking the Full Potential of 6GHz Clean Spectrum

The Zukaka YNW ax Series 6GHz 802.11ax wireless bridges deliver a fresh spectrum choice for professional wireless communications. Unlike the crowded 5GHz band, 6GHz provides 1200MHz of clean spectrum supporting 160MHz ultra-wide channels, achieving 1500Mbps+ throughput. From integrated-antenna plug-and-play models to flexible external antenna solutions, we meet all requirements for PTP, PTMP, and customized deployments.

6GHz Clean Spectrum 802.11ax WiFi 6 1500Mbps+ Throughput 2.5G PoE Port IP67 Protection OEM/ODM Supported Infinity Controller

Key Insight: Under identical hardware conditions, 5GHz and 6GHz wireless bridges achieve the same PHY rate (866Mbps for 2×2 MIMO 80MHz). However, in real-world deployments, 5GHz delivers only 25% of PHY rate due to interference and DFS events, while 6GHz achieves 67% effective throughput.

802.11ax WiFi 6 Core Technologies

• 1024-QAM Modulation: 25% improvement in modulation efficiency compared to WiFi 5's 256-QAM, with single-stream rates up to 1.2Gbps
• 160MHz Channel Width: Doubled channel bandwidth, making it easier to find contiguous free spectrum in 6GHz
• OFDMA (Orthogonal Frequency-Division Multiple Access): Divides channels into sub-channels, enabling simultaneous transmission from multiple devices with significantly reduced latency
• TWT (Target Wake Time): Allows devices to enter sleep mode, reducing power consumption and signal interference
• 2×2 MIMO: Spatial diversity technology delivering double throughput and superior interference resistance

① The True Value of 160MHz Ultra-Wide Channels in 6GHz

While WiFi 5 (802.11ac) also supports 160MHz, all 160MHz channels in the 5GHz band fall within DFS radar frequencies, making them practically unusable. In contrast, all 7 available 160MHz channels in 6GHz operate free from radar interference concerns.

• 5GHz 160MHz: Only 2 channels, all DFS, availability < 80%
• 6GHz 160MHz: 7 channels, no DFS restrictions, 100% availability
• Real Throughput: 6GHz 160MHz delivers stable 1.5Gbps, 2.5x that of 5GHz 80MHz

② OFDMA Latency Advantages in Clean Spectrum

OFDMA technology divides channels into sub-channels, enabling simultaneous transmission from multiple devices. However, OFDMA gains are severely compromised by interference in crowded 5GHz environments. In the clean 6GHz spectrum, OFDMA truly delivers on its low-latency promise.

• 5GHz Latency: Average 30-80ms, peaking at 200ms+ during congestion
• 6GHz Latency: Average 8-15ms, consistently below 5ms in low-interference environments
• PTMP Capacity: 3x higher PTMP throughput than 5GHz at equivalent device density

③ Enhanced Real Throughput with 1024-QAM in Low-Noise Environments

1024-QAM requires higher signal-to-noise ratio for stable demodulation. In high-interference 5GHz environments, devices frequently drop to 256-QAM or lower. 6GHz's low noise floor (-95dBm+) ensures devices remain at peak modulation levels consistently.

• 5GHz Modulation Stability: 1024-QAM active only 40% of the time
• 6GHz Modulation Stability: 1024-QAM active 95%+ of the time
• Effective Throughput Gain: 60%+ improvement over 5GHz

6G ax Value Summary: 6GHz provides the perfect stage for WiFi 6 (802.11ax) to perform at its best. Clean spectrum makes 160MHz channels a practical reality, while the low-noise environment allows 1024-QAM and OFDMA to reach their full potential. This isn't just a frequency upgrade — it's a fundamental paradigm shift in wireless communications.

Application Scenario	Recommended Model	Selection Rationale

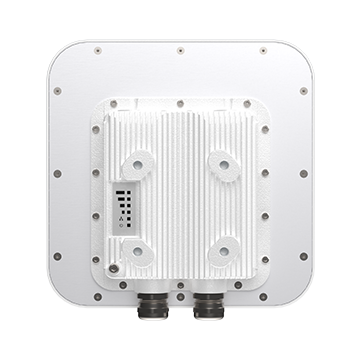

Medium-Short Range PTP (2-10km)	YNW 6-20ax	20dBi integrated antenna, easy installation, excellent value
Long Range PTP (10-15km)	YNW 6-23ax	23dBi high-gain antenna, more robust link budget
PTMP Base Station Coverage	YNW 6-90ax	90° sector antenna, supports high-density client access
Ultra-Long Range PTP (>15km)	YNW 6ax + External High-Gain Antenna	N-type connectors compatible with 30dBi+ parabolic antennas
Customized/Research Scenarios	YNW 6ax	Flexible external antenna options for diverse testing needs
