WiFi 6E Module Tri-band Dual Concurrent+BLE 5.1 QCA2062/2066 WLT206H
- Qualcomm QCA2062 ‘Verona’ series for 2.4+5GHz
- Qualcomm QCA2066 ‘Verona’ series for WiFi 6E 6GHz support
- M.2 E Key with PCIe 3.0 Interface
- USB1.1 host interface for Bluetooth
- Supports up to 1024QAM
- -20°C to 70°C operating temperature
WLT206H WiFi 6/6E Module – Tri-band Dual Concurrent
Product Overview
Tri-band dual-concurrent WiFi 6 (802.11ax) + BLE5.1 module based on Qualcomm QCA2062/QCA2066, delivering up to 2.4Gbps throughput for IoT, Smart Home, and Industrial applications.
Key Overview
Target Users：IoT device manufacturers, smart home solution providers, industrial automation integrators
Core Strengths：Tri-band operation (2.4/5/6GHz), 2×2 MU-MIMO, dual-concurrent, integrated BLE5.1, PCIe 3.0 interface
Typical Applications：Smart Home appliances, Industrial IoT, Transportation, Cybersecurity gateways, SMB networking
Module Layout Diagram

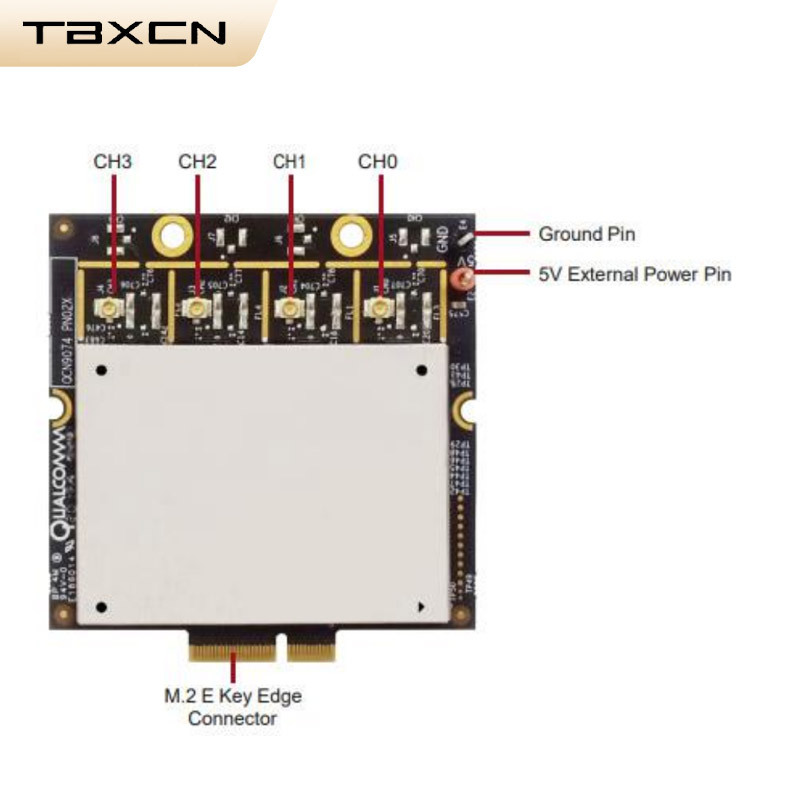

WLT206H WiFi 6/6E Module PCB Layout with Key Components Labeled
Key PCB Components Explained
CH0-CH3 (RF)
4 independent RF channels supporting 2×2 MU-MIMO
Ground Pin
Stable grounding for RF performance & EMI mitigation
Power Pin
External power for high-performance operation
M.2 Connector
PCIe 3.0 & USB 1.1 interface
Technical Specifications
Standard
| Parameter | Specification |
|---|---|
| Chipset(s) | Qualcomm QCA2062/2066 |
| Type of Connector(s) | 2x IPEX MHF4 Connectors |
| WiFi Interface | PCIe 3.0 |
| Bluetooth Interface | USB 1.1 |
Wireless
| Parameter | Specification |
|---|---|
| Wireless Standards | 2.4GHz 802.11b/g/n/ax, max 16dBm per chain 5GHz 802.11a/n/ac/ax, max 16dBm per chain 6GHz 802.11a/n/ac/ax, max 16dBm per chain |
| 2.4GHz Performance | 2×2 MU-MIMO, up to 573.6Mbps |
| 5GHz Performance | 2×2 MU-MIMO, up to 1201Mbps |
| 6GHz (WiFi 6E) | 2×2 MU-MIMO, up to 2402Mbps (QCA2066 only) |
| WLAN Frequency Range | 2.412~2.483GHz 5.150~5.850GHz 5.925~7.125GHz (QCA2066 only) |
| Bluetooth Standard | Bluetooth 5.1 |
| Channel Spectrum Widths | 20/40MHz at 2.4GHz 20/40/80MHz at 5GHz 20/40/80/160MHz at 6GHz |
Power
| Parameter | Specification |
|---|---|
| Power Consumption | TBD |
| Operating Voltage | 3.3V |
Environmental Compliances
| Region | Certifications |
|---|---|
| USA | FCC, REACH |
| EU Region | CE, RoHS, REACH |
Key Features
Tri-band Operation
Supports 2.4GHz, 5GHz, and 6GHz (WiFi 6E) bands simultaneously, providing flexible spectrum options for different applications.
2×2 MU-MIMO
Dual-stream multi-user MIMO technology enables simultaneous data transmission to multiple devices, improving network efficiency.
Dual-Concurrent
Enables simultaneous operation on two different bands, ideal for applications requiring both high-speed data and IoT connectivity.
Bluetooth 5.1
Integrated BLE5.1 support for seamless smart home/IoT product setup during initial configuration.
High Power Output
Up to 16dBm per chain across all bands ensures reliable connectivity in challenging RF environments.
PCIe 3.0 Interface
High-speed PCIe 3.0 interface provides low-latency connectivity for demanding applications.
Target Applications
Smart Home
IoT appliances, smart thermostats, security systems
Industrial IoT
Factory automation, sensor networks, monitoring systems
Transportation
Connected vehicles, telematics, fleet management
Cybersecurity
Secure gateways, network appliances, VPN solutions
SMB Networking
Small business routers, access points, mesh systems
x86 Platforms
Intel-based systems, mini-PCs, embedded solutions
Frequently Asked Questions
Q: What chipset does the WLT206H module use?
The WLT206H module uses Qualcomm QCA2062 for WiFi 6 or QCA2066 for WiFi 6E configurations.
Q: What is the maximum throughput supported?
Up to 1.2Gbps for QCA2062 (WiFi 6) and up to 2.4Gbps for QCA2066 (WiFi 6E) with 160MHz channel width.
Q: Does it support Bluetooth?
Yes, the WLT206H integrates Bluetooth 5.1 via USB 1.1 interface for smart home/IoT device pairing.
Q: What certifications does this module have?
USA: FCC, REACH; EU: CE, RoHS, REACH.
