11ac 48V Gigabit Dual-Ethernet Outdoor Wireless PCBA (30km Range)
High-performance 11ac Gigabit dual-Ethernet PCBA for outdoor wireless bridges. Achieve 500+ Mbps throughput & 30km PTP range with 48V PoE & iPoll protocol. Ideal for robust outdoor networks.

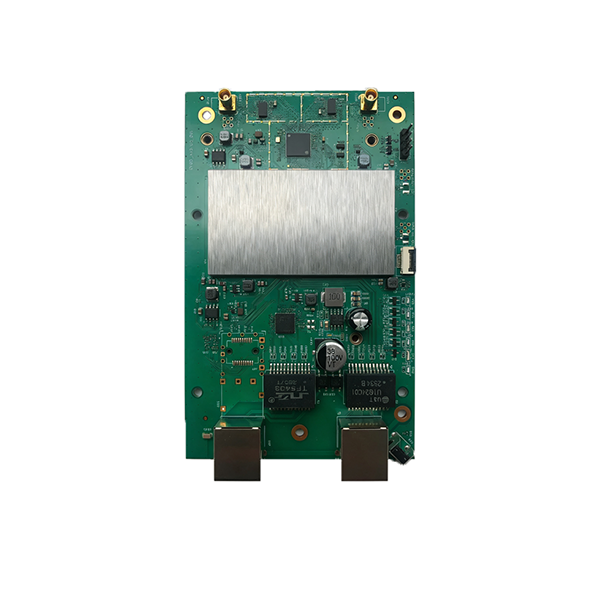

11ac Gigabit Dual-Ethernet 48V High-Performance Outdoor Long-Range 30km Wireless Device Mainboard PCBA
Product Overview
This 11ac Gigabit dual-Ethernet wireless bridge mainboard delivers 500+ Mbps throughput with dual RJ45 ports for flexible network deployment. Based on 802.11ac standard with iPoll protocol, powered by Qualcomm QCA9563 + QCA9882. Supports up to 30km PTP links for point-to-point and point-to-multipoint networking in harsh outdoor environments.
Key Overview
Target Users：ISP operators, enterprise network integrators, industrial wireless bridge installers, outdoor surveillance system builders
Core Strengths：Dual Gigabit Ethernet ports, 500+ Mbps throughput, 30km PTP range, iPoll interference-free protocol, 48V PoE, 23dBi integrated antenna
Typical Applications：Point-to-point wireless bridges, PTMP networks, outdoor wireless backhaul, last-mile connectivity, IP camera deployments
WiFi Standard：802.11a/n/ac
Interface：Dual RJ45 Gigabit
Technical Specifications
Complete hardware and wireless performance specifications for this dual-Ethernet 11ac wireless bridge.
Hardware Configuration
| Component | Specification |
|---|---|
| CPU | Qualcomm QCA9563, 720 MHz |
| Radio Module | Qualcomm QCA9882 |
| RAM | 64 MB |
| Flash | 16 MB |
| Wired Interface | Dual 10/100/1000 Base-T, RJ45 |
Wireless Performance
| Parameter | Specification |
|---|---|
| Wireless Standard | IEEE 802.11a/n/ac, iPoll |
| MIMO | 2×2 |
| Operating Frequency | 5 GHz (5.150-5.850 GHz); FCC: 5.150-5.250 / 5.725-5.850 GHz |
| Channel Bandwidth | 5/10/20/40/80 MHz |
| Transmit Power | Up to 30 dBm (varies by region, Typical) |
| Receiver Sensitivity | -97 ~ -75 dBm (varies by modulation) |
| Modulation | 802.11a/n: OFDM (64-QAM/16-QAM/QPSK/BPSK); 802.11ac: OFDM (256-QAM/64-QAM/16-QAM/QPSK/BPSK) |
| Duplex Mode | TDD (Time Division Duplex) |
| Packet Processing | 80,000 PPS |
Link Distance
| Mode | Distance |
|---|---|
| PTMP (Typical) | 10 km |
| PTP | 12 km |
| PTP (Full Load) | 30 km |
TX/RX Performance (40 MHz)
| Data Rate (Mbps) | TX Power (dBm) | RX Sensitivity (dBm) |
|---|---|---|
| 400 | 26 | -70 |
| 360 | 27 | -72 |
| 300 | 28 | -76 |
| 240 | 30 | -80 |
| 120 | 30 | -87 |
| 60 | 30 | -94 |
TX/RX Performance (80 MHz)
| Data Rate (Mbps) | TX Power (dBm) | RX Sensitivity (dBm) |
|---|---|---|
| 866 | 24 | -64 |
| 650 | 25 | -70 |
| 520 | 27 | -74 |
| 260 | 28 | -81 |
| 130 | 29 | -88 |
| 65 | 29 | -90 |
Antenna
| Parameter | Specification |
|---|---|
| Type | Integrated Dual-Polarized Directional Panel Antenna |
| Frequency Band | 5.1 – 5.9 GHz |
| Antenna Gain | 23 dBi |
| Polarization | Vertical/Horizontal Dual Polarization |
Physical, Power & Environmental
| Parameter | Specification |
|---|---|
| Dimensions | 220 mm x 85 mm x 15 mm |
| Weight | 70 g |
| Power Supply | IEEE 802.3af/at (48V PoE adapter included) |
| Power Input | 48-56 V PoE |
| Power Consumption | 10 W (Typical) |
| Operating Temperature | -40C to +65C |
| Operating Humidity | 0-90% (non-condensing) |
Management
| Function | Details |
|---|---|
| System Monitoring | SNMP, Syslog, Web UI, WNMS |
| Device Configuration | Web UI, WNMS |
Key Features
Dual Gigabit Ethernet
Two independent RJ45 Gigabit ports enable flexible network topologies – connect to multiple downstream devices or create redundant uplink paths without additional switches.
500+ Mbps Throughput
Delivers 500+ Mbps actual throughput with 80,000 PPS packet processing. Handles HD video streaming, large file transfers, and bandwidth-intensive industrial IoT applications.
30km Point-to-Point Range
Integrated 23dBi directional antenna supports PTP links up to 30km at full load. Perfect for connecting remote sites without intermediate infrastructure.
iPoll Protocol
Proprietary iPoll intelligent dynamic polling protocol eliminates interference and ensures stable wireless performance in congested RF environments.
Dual-Firmware Protection
Dual firmware images ensure safe upgrades and operational continuity. If an upgrade fails, the system automatically reverts to the backup firmware.
HTML5 Web Interface
New HTML5-based GUI works in any modern browser without plugins. Unified configuration logic across the product line simplifies deployment and management.
Target Applications
- Point-to-point (PTP) wireless bridges for last-mile connectivity up to 30km
- Point-to-multipoint (PTMP) networks for coverage extension
- Outdoor wireless backhaul for IP camera surveillance networks
- Industrial IoT wireless backhaul with dual Ethernet devices
- Rural broadband deployment in underserved areas
Need a Custom Solution?
Contact our engineering team for pricing, sample requests, or technical questions.
Frequently Asked Questions
Q: What is the difference between this dual-Ethernet model and the single-port model?
This model (4463) has two independent Gigabit RJ45 Ethernet ports instead of one. This allows connecting multiple downstream devices directly, or creating redundant uplink paths without additional network switches.
Q: What is the actual throughput of this device?
The device delivers 500+ Mbps actual throughput with 170 Mbps typical throughput capability. Real-world performance depends on distance, antenna setup, interference, and channel conditions.
Q: Can this really achieve 30km range?
Yes, in PTP mode at full load the device can achieve 30km links. Typical PTMP links are around 10km. Actual range depends on antenna height, terrain, interference, and regulatory power limits in your region.
Q: Does this device support IPv6?
Yes, this device supports IPv6 addressing and networking, compatible with modern network infrastructure and future-proofing requirements.
Q: What power options are available?
The device supports IEEE 802.3af/at PoE at 48V. A compatible 48V PoE adapter is included with the package.
