2.4G Mobile Wireless Ad-Hoc Network Motherboard – YN300C
Product Overview
YN300C is a high-performance development platform featuring non-line-of-sight (NLOS) wireless transmission capability, designed for emergency communications and mobile ad-hoc networking applications.
Key Overview
Target Users：System integrators, emergency communication solution providers, defense and public safety engineers requiring robust NLOS wireless transmission.
Core Advantages：Qualcomm chipset design with 30dBm transmit power, MANET scale > 50 nodes, relay capability > 10 hops, fail-safe U-Boot and OpenWrt SDK open support.
Typical Applications：Emergency communications for firefighting, armed police, military, water conservancy, civil defense search & rescue, emergency medical command, and outdoor surveillance.
Product Introduction
YN300C is a high-performance development platform featuring non-line-of-sight (NLOS) wireless transmission capability. The YN300C adopts a Qualcomm chipset design with onboard 30dBm 5GHz 802.11a/n; peak throughput up to 96Mbps. The platform provides fail-safe U-Boot and OpenWrt SDK open support, and can be widely used for emergency communications in firefighting, armed police, and military applications.
Key Features
- Water conservancy; civil defense search & rescue / emergency medical command / emergency communications vehicles
- Real-time emergency networking / emergency deployment drills / mobile wireless networking
- Ports and terminals / outdoor power and surveying / airborne and maritime transmission
- HD IP camera backhaul / computer networking data transport / wireless video transmission equipment
Product Advantages
- Elevated LOS transmission range 10–20 km; ground-level LOS communications range 1.5–2 km (1 W)
- In high-rise communities and other heavy-obstruction scenarios: coverage exceeds 16 floors and penetrates 6–10 residential buildings (1 W)
Product Features
- Supports point-to-point, point-to-multipoint, multipoint-to-multipoint, and mesh modes
- MANET scale > 50 nodes; relay capability > 10 hops
- Provides fail-safe U-Boot and OpenWrt SDK open support
After-Sales Service
- Complete-device solutions available to help customers accelerate time-to-market
- Provides bare-board delivery and integrated solution technical guidance
- End-to-end customization for equipment enclosure, functions, and software
Technical Specifications

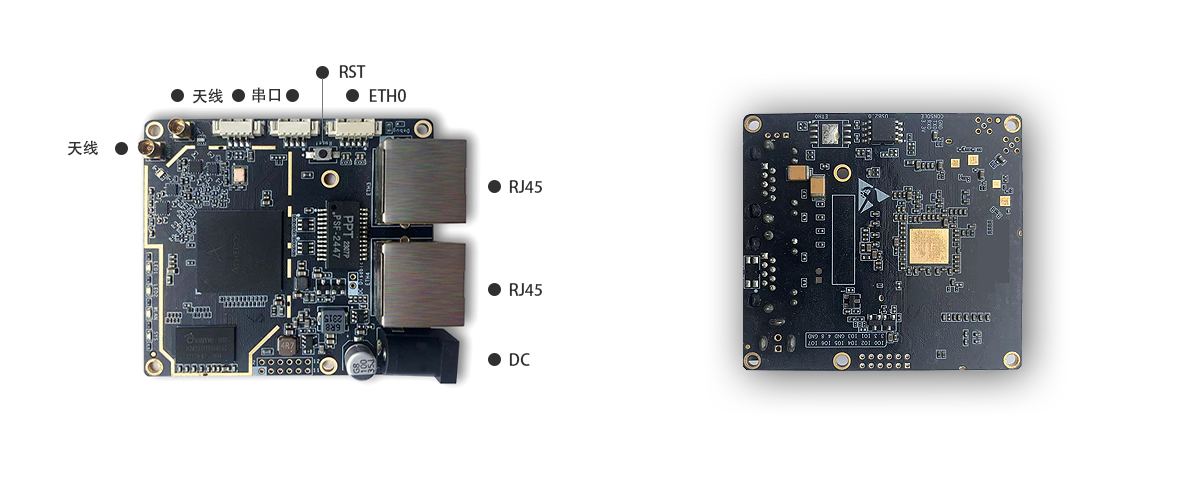

Interface Description
Application Scenarios

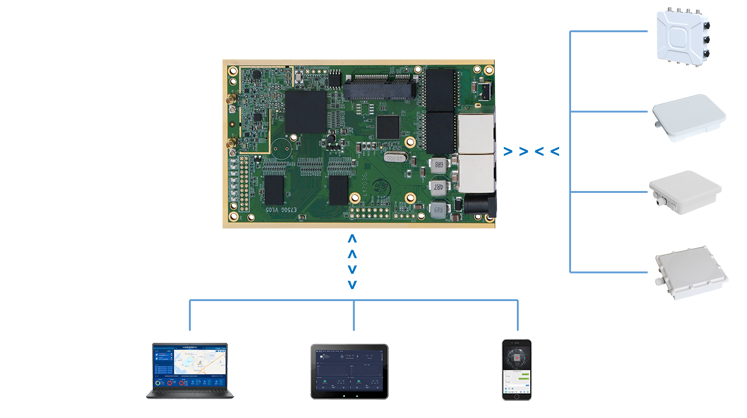

This diagram illustrates the AP management system hardware and interaction logic:
- The central mainboard is the system control core;
- On the right, four AP devices in different form factors are connected (e.g., access points with different enclosures);
- At the bottom, terminals such as PCs, tablets, and smartphones connect to support cross-platform management;
- Arrows and lines indicate network communications and management data interactions between devices.
Key Features
- Automatic AP discovery; zero-touch AP deployment;
- Dedicated management IP allocation without consuming user DHCP addresses;
- AP group management supported; different groups can use different ESSID and other configuration profiles;
- Alias management supported: map AP MAC addresses to room numbers for more intuitive operations;
- Cross-VLAN management supported, enabling this function without major changes to the user network;
- Centralized AP management across Layer 3 networks supported;
- JS + AJAX enables cross-platform terminal management (mobile phones, tablets, and Mac computers) via standard browsers.
Frequently Asked Questions
Q: What is the maximum transmission range of the YN300C platform?
The YN300C platform delivers elevated LOS transmission range of 10–20 km and ground-level LOS communications range of 1.5–2 km at 1 W transmit power. In high-rise obstruction scenarios, it can cover over 16 floors and penetrate 6–10 residential buildings.
Q: What wireless networking modes does the YN300C support?
The YN300C supports point-to-point, point-to-multipoint, multipoint-to-multipoint, and mesh networking modes. It features MANET scale of more than 50 nodes with relay capability exceeding 10 hops, making it ideal for large-scale ad-hoc network deployments.
Q: What development support is provided with the YN300C?
The platform provides fail-safe U-Boot and OpenWrt SDK open support, enabling customers to customize and develop their own applications. Complete-device solutions, bare-board delivery, and end-to-end customization for enclosure, functions, and software are also available.
Q: What are the power supply requirements for the YN300C?
The YN300C accepts 7V-48V DC power input and supports 15V-48V standard/non-standard PoE. The average power consumption is approximately 10W, making it suitable for field-deployed and battery-powered applications.
Q: What are the main applications of the YN300C MANET platform?
The YN300C is widely used in emergency communications for firefighting, armed police, and military operations, as well as water conservancy monitoring, civil defense search & rescue, emergency medical command, emergency communications vehicles, outdoor power and surveying, airborne and maritime transmission, and wireless video surveillance backhaul.
