Technical Solution for Vehicular Ad-hoc Networks (VANET Mesh)
Key Overview
Target Audience: Automotive network engineers, V2X system architects, intelligent transportation system integrators, and embedded systems developers working on connected vehicle solutions.
Core Issue: Traditional vehicle communication relies on cellular networks with 100-500 ms latency, insufficient for safety-critical real-time applications. VANET mesh networks enable direct, infrastructure-free communication with sub-50 ms latency, supporting autonomous driving and intelligent transportation systems.
Key Conclusions: This guide covers the complete technical architecture of VANET-based vehicular communications across four V2X domains: V2V (Vehicle-to-Vehicle), V2I (Vehicle-to-Infrastructure), V2P (Vehicle-to-Pedestrian), and V2C (Vehicle-to-Cloud). Each section details communication protocols, latency requirements, security frameworks, and proven implementation strategies based on real-world deployments.

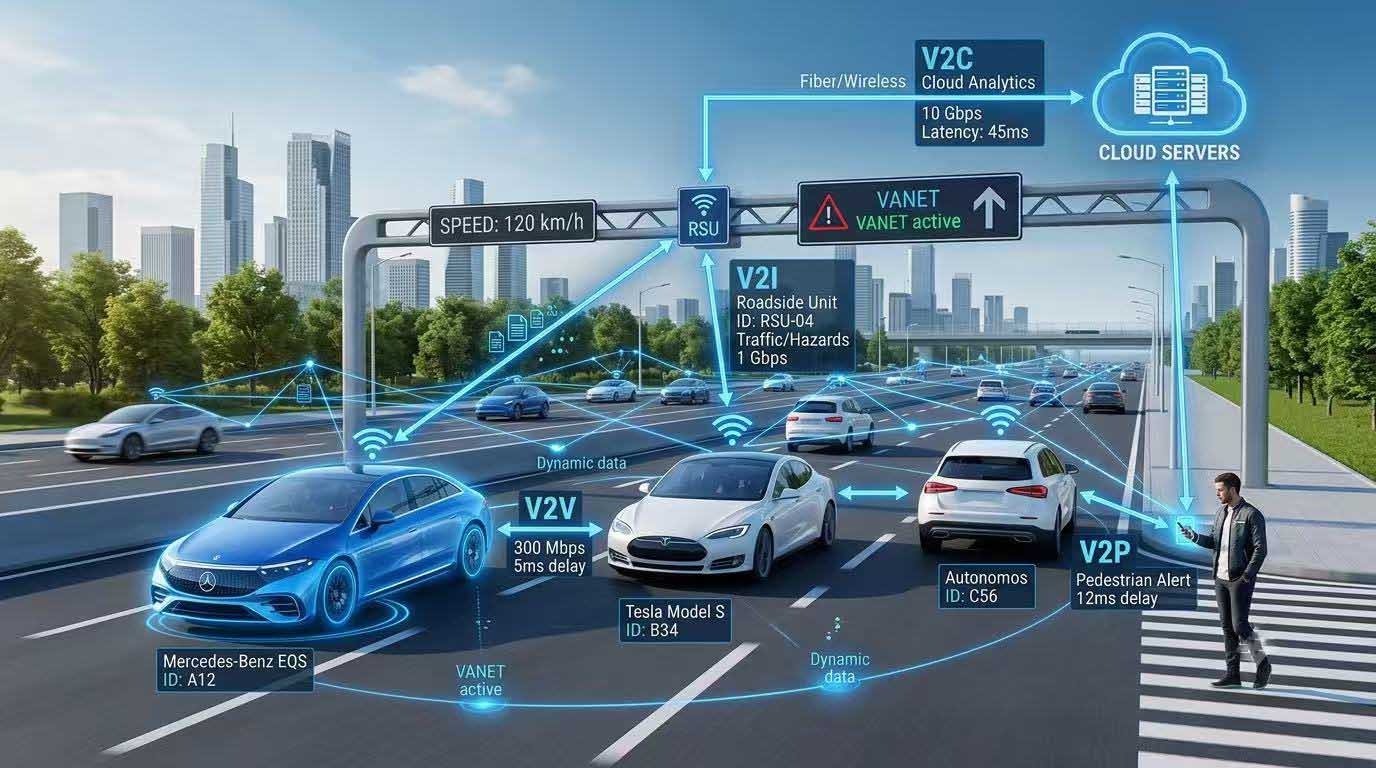

VANET Technology Overview
Vehicular Ad Hoc Networks (VANET) represent a specialized application of MANET technology for intelligent transportation systems. Unlike traditional cellular-based telematics (which route data through base stations), VANET enables direct peer-to-peer communication using Dedicated Short-Range Communication (DSRC) at 5.9 GHz or C-V2X (Cellular Vehicle-to-Everything) at LTE/5G bands.
Communication Standards Comparison
| Standard | Frequency | Latency | Range | Data Rate | Mobility Support | Deployment Status |
|---|---|---|---|---|---|---|
| IEEE 802.11p (DSRC) | 5.850-5.925 GHz | < 50 ms | 300-1000 m | 3-27 Mbps | 0-200 km/h | Mature, deployed in EU, US, Japan |
| 3GPP C-V2X PC5 (LTE-V2X) | 5.9 GHz band | < 50 ms | 500-1500 m | 10-50 Mbps | 0-500 km/h | Growing, China mandate, US trials |
| 3GPP NR-V2X (5G) | 5.9 GHz + mmWave | < 10 ms | 300-2000 m | 50-1000 Mbps | 0-500 km/h | Emerging, 3GPP Release 16+ |
| Wi-Fi 802.11ac/ax (2.4/5GHz) | 2.4/5 GHz ISM | 50-200 ms | 100-500 m | 100-1200 Mbps | 0-60 km/h | Consumer, limited mobility |
VANET Network Architecture – Protocol Stack
• Application Layer (1609.1): V2X safety messages (BSM, CAM, DENM), tolling, infotainment
• Transport Layer: WSMP (WAVE Short Message Protocol) for safety messages, UDP/TCP for non-safety
• Network Layer (1609.3): IPv6, GeoNetworking, geographic routing for location-based forwarding
• LLC Sublayer (802.2): Multiplexing between IPv6 and WSMP, EtherType 0x88DC
• MAC Sublayer (1609.4): Multi-channel operation (CCH + SCH), channel switching interval 50 ms
• PHY Layer (802.11p): OFDM at 5.9 GHz, 10 MHz channels, BPSK to 64-QAM
Channel Allocation:
• Control Channel (CCH – Ch 178): Safety messages, service announcements
• Service Channels (SCH – Ch 172, 174, 176, 180, 182, 184): Non-safety applications
• Channel Switching: Alternates between CCH and SCH every 50 ms (sync interval)
VANET Message Types and Standards
| Message Type | Standard | Frequency | Payload Size | Latency Requirement | Application |
|---|---|---|---|---|---|
| BSM (Basic Safety Message) | SAE J2735 | 10 Hz (100 ms) | ~40-100 bytes | < 100 ms | Position, speed, heading, brake status |
| CAM (Cooperative Awareness) | ETSI EN 302 637-2 | 1-10 Hz (100-1000 ms) | ~50-200 bytes | < 100 ms | Vehicle status, dimensions, dynamics |
| DENM (Decentralized Environmental Notification) | ETSI EN 302 637-3 | Event-triggered | ~100-500 bytes | < 100 ms | Hazard warnings, road conditions |
| MAP (Intersection Topology) | SAE J2735 | 1 Hz | ~500-2000 bytes | < 1 second | Intersection geometry, lane information |
| SPAT (Signal Phase and Timing) | SAE J2735 | 2-10 Hz | ~50-200 bytes | < 100 ms | Traffic light status, timing |
V2V (Vehicle-to-Vehicle) – Technical Architecture & Implementation
Vehicle-to-Vehicle (V2V) communication enables vehicles to exchange real-time position, velocity, heading, and status information directly without any infrastructure. This forms the foundation for several safety-critical applications and autonomous driving coordination.
V2V Communication Protocol: DSRC-Based Implementation
The most widely deployed V2V protocol stack uses IEEE 802.11p (DSRC) with the WAVE (Wireless Access in Vehicular Environments) framework:
• WSMP Header (8 bytes): Version, PSID (Provider Service Identifier), Channel Number, Data Rate, TX Power
• BSM Part 1 (Mandatory, ~40 bytes):
– Temporary ID (4 bytes)
– UTC Time (8 bytes)
– Latitude/Longitude (8 bytes)
– Elevation (4 bytes)
– Speed (2 bytes), Heading (2 bytes), Brake Status (1 byte)
– Vehicle Length/Width (3 bytes)
• BSM Part 2 (Optional, ~30-60 bytes):
– Steering Wheel Angle, Acceleration (3-axis)
– Path History, Path Prediction
– Trailer Weight, Load Status
Transmission Parameters:
• Frequency: 5.855-5.925 GHz (DSRC band)
• Channel Bandwidth: 10 MHz per channel
• Modulation: OFDM, BPSK to 64-QAM
• Data Rate: 6 Mbps (most common) to 27 Mbps
• TX Power: 23 dBm (200 mW) max
• Broadcast Rate: 10 Hz (every 100 ms)

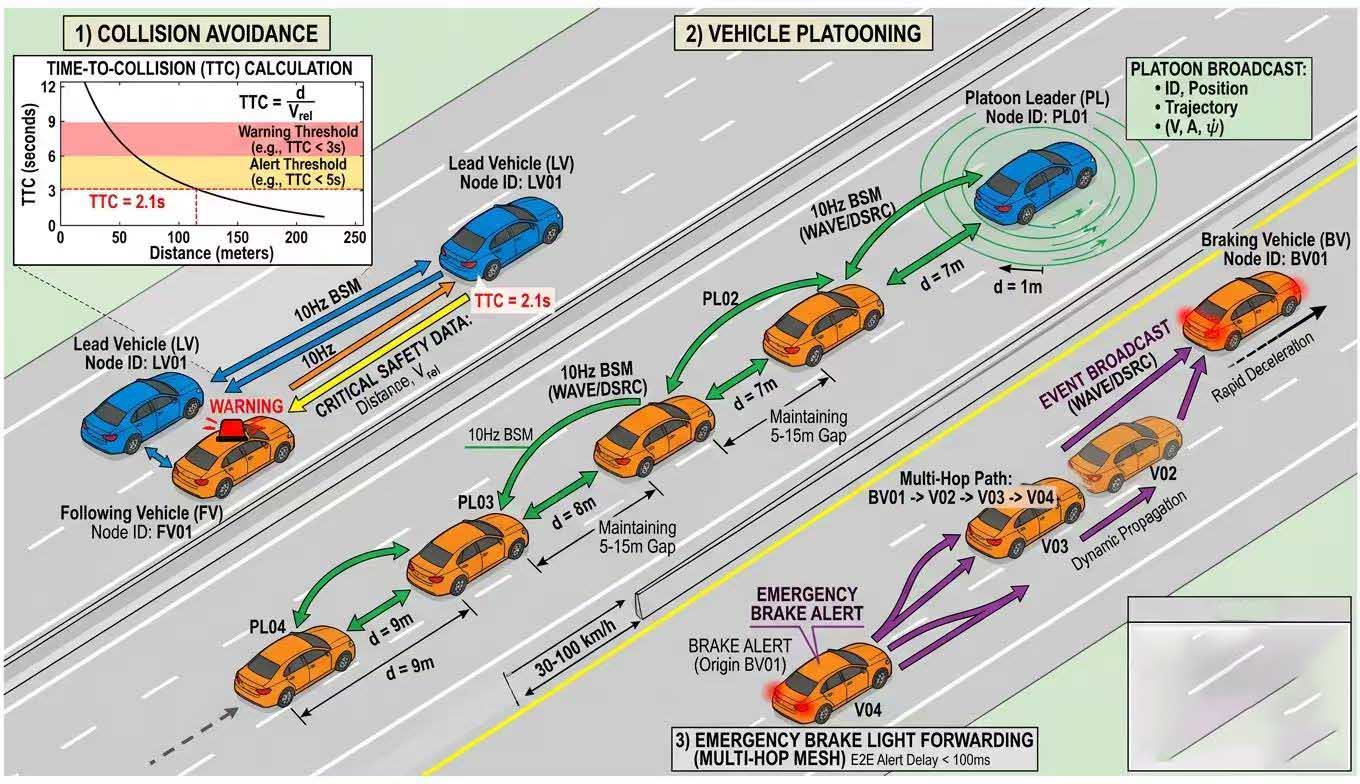

V2V Technical Implementation: End-to-End Architecture
1. V2V Mesh Network Formation
V2V networks use a distributed mesh topology where each vehicle acts as both a transmitter and a router. The network formation process follows these steps:
- Neighbor Discovery: Each vehicle broadcasts HELLO messages with its position, speed, and heading. Vehicles detect neighbors within 300-1000 m range. Discovery latency: 100-500 ms.
- Link State Estimation: Each vehicle maintains a neighbor table with RSSI (Received Signal Strength Indicator), SNR (Signal-to-Noise Ratio), and link quality metrics. Threshold for reliable link: RSSI > -75 dBm, SNR > 15 dB.
- Routing Table Maintenance: Using geographic routing (GPSR, Geographic Perimeter Stateless Routing) or position-based AODV (P-AODV), each node maintains routes to vehicles within 2-3 hops.
- Cluster Formation: In dense traffic, vehicles self-organize into clusters with a Cluster Head (e.g., the slowest-moving vehicle in a traffic jam). Cluster size: 5-20 vehicles optimal.
2. Collision Avoidance Implementation
The most critical V2V safety application uses the following algorithmic pipeline:
Step 1 – Data Acquisition:
• Receive BSM from neighboring vehicles (every 100 ms)
• Parse position (lat/lon/elevation), speed, heading, brake status
Step 2 – Collision Probability Calculation:
• Compute relative speed: ΔV = |V_host – V_target|
• Compute closing rate: based on heading vectors
• Time-to-Collision (TTC) = Distance / Closing Rate
• Time-to-React (TTR) = TTC – Driver Reaction Time (1.5s) – Latency (100ms)
Step 3 – Threat Assessment:
• TTC < 4.0 seconds: Warning threshold
• TTC < 2.5 seconds: Critical warning
• TTC < 1.5 seconds: Automatic braking intervention
Step 4 – Message Generation:
• Generate warning alerts to driver (audible + visual)
• Optional: Send autonomous braking command via CAN bus
• Broadcast collision warning DENM to nearby vehicles
3. Platooning Implementation
Vehicle platooning (road train) is an advanced V2V application where vehicles form a closely-spaced convoy to reduce air resistance and improve traffic efficiency:
- Communication Architecture: Lead vehicle broadcasts trajectory and speed commands at 10-50 Hz. Following vehicles respond with their status at 10 Hz.
- Adaptive Cruise Control (ACC) Integration: V2V data feeds into the ACC system with PID controllers. Following distance: 5-15 m at highway speeds. Reaction latency: < 50 ms.
- Gap Control Algorithm: Target gap = constant time gap (0.3-1.0 seconds). Implicit trust coordination: each vehicle controls its own acceleration based on lead vehicle’s broadcast.
- Safety Override: If communication is lost for > 500 ms, each vehicle reverts to standard ACC with increased following distance (minimum 2.0 seconds gap).
4. Emergency Electronic Brake Light (EEBL) Implementation
When a vehicle performs hard braking, it broadcasts an emergency brake warning to following vehicles:
1. Trigger Condition: Deceleration > 4 m/s² (0.4G) detected via CAN bus brake sensor
2. Message Generation: Create DENM with incident type = “Hard Braking”, position, speed, heading
3. Broadcast: Transmit on CCH at maximum power (23 dBm), repeated 10 times at 100 ms intervals
4. Multi-Hop Relay: Vehicles within range rebroadcast the message with hop count < 5, TTL = 3 seconds
5. Warning Generation: Receiving vehicles calculate if they are in the affected lane. If TTC < 4s, generate driver alert
Performance Targets:
• End-to-end latency: < 100 ms from event to driver alert
• Message delivery rate: > 99% within 300 m
• Range: Up to 5 km with multi-hop relay (limited by TTL)
V2V Mesh Routing Protocol Comparison
| Protocol | Routing Type | Packet Delivery Ratio | Average Latency | Control Overhead | Best For |
|---|---|---|---|---|---|
| GPSR (Geographic Perimeter Stateless Routing) | Geographic | 85-95% | 10-30 ms | Very Low | Highway scenarios, sparse traffic |
| P-AODV (Position-based AODV) | Reactive + Geographic | 90-98% | 30-150 ms | Low | Urban scenarios, dense traffic |
| GPCR (Geographic Perimeter City Routing) | Geographic + Topology | 80-92% | 15-50 ms | Low | City intersections, grid layouts |
| MOPR (Mobile Optimized Predictive Routing) | Predictive + Reactive | 93-99% | 20-80 ms | Medium | High-speed highway (> 100 km/h) |
| CLWPR (Contention-based Low Weight Position-based Routing) | Geographic + QoS | 88-96% | 10-40 ms | Low | Urban, QoS-sensitive applications |
V2V Security Implementation
- IEEE 1609.2 Security Services: All V2V messages must be signed using ECDSA (Elliptic Curve Digital Signature Algorithm) with P-256 curve. Certificate-based authentication using IEEE 1609.2 certificate format.
- Certificate Management: SCMS (Security Credential Management System) provides certificate enrollment, revocation, and misbehavior detection. Certificate validity: 1 year, with 100,000+ certificates per year per vehicle to preserve privacy.
- Message Authentication: Each BSM includes a digital signature (64 bytes ECDSA) and certificate (158 bytes). Processing time: < 10 ms on automotive-grade hardware.
- Privacy Protection: Vehicles change their temporary ID (pseudonym) every 5 minutes to prevent tracking. Pseudonym pool: 20,000+ per year per vehicle.
V2I (Vehicle-to-Infrastructure) – Roadside Communication Systems
Vehicle-to-Infrastructure (V2I) communication enables vehicles to exchange data with fixed roadside infrastructure. This extends the VANET mesh network by adding static nodes (RSUs) that relay messages, provide local services, and connect to traffic management centers.
V2I Infrastructure Architecture
• Communication Interfaces:
– DSRC 802.11p: 5.9 GHz, 10 MHz channels, up to 27 Mbps
– Cellular Backhaul: 4G LTE or 5G NR (for cloud connectivity)
– Ethernet: 1000BASE-T for local management
• Coverage: 300-1000 m per RSU, depending on antenna height and environment
• Processing: ARM Cortex-A72 or equivalent, 2+ cores
• Memory: 4 GB RAM, 32 GB storage for local data buffering
• Power: 15-30W, PoE+ (Power over Ethernet) or solar with battery backup
• Environmental: IP65, -40°C to +70°C operating range
RSU Deployment Spacing:
• Urban Intersections: One RSU per intersection (300-500 m spacing)
• Highway: RSU every 500-1000 m (based on coverage overlap)
• Tunnel: RSU every 200-300 m (limited signal propagation)
V2I Key Applications – Implementation Details
1. Traffic Signal Priority and Preemption
Emergency vehicles and public transit can communicate with traffic signals to request priority:
- Message Protocol: Emergency vehicle broadcasts SRM (Signal Request Message, SAE J2735) to RSU. RSU processes request and sends SSM (Signal Status Message) back.
- Priority Levels: Level 1: Emergency vehicle (preemption, immediate green). Level 2: Transit bus (priority, extend green). Level 3: Commercial fleet (advisory only).
- Latency Budget: Vehicle → RSU: < 50 ms. RSU → Traffic Controller: < 100 ms (Ethernet/serial). Traffic Controller response: < 500 ms. Total: < 1 second from request to signal change.
- Implementation Requirements: Vehicle must have OBU (On-Board Unit) with DSRC radio. RSU must be connected to traffic signal controller via NTCIP (National Transportation Communications for ITS Protocol).
2. Red Light Violation Warning (RLVW)
RSU broadcasts intersection topology (MAP message) and signal phase and timing (SPAT message) to approaching vehicles:
RSU Side:
• Broadcast MAP message at 1 Hz (intersection geometry, lane configuration, stop bar position)
• Broadcast SPAT message at 10 Hz (current phase, remaining time, next phase)
• Coverage: 300 m approach zone before stop bar
Vehicle OBU Side:
1. Receive MAP + SPAT messages from approaching RSU
2. Determine current phase and time to next phase change
3. Calculate whether vehicle can safely stop or pass based on:
– Current speed, distance to stop bar, road friction coefficient
– Deceleration capacity: 3.4 m/s² (comfortable braking)
4. If current speed exceeds safe approach speed:
– Generate driver warning: “Signal Change: Prepare to Stop”
– If time-to-red < 3 seconds: Critical warning with audio-visual alert
5. Optional: Automatic brake intervention if driver does not respond
Performance Metrics:
• Warning accuracy: > 95% (validated in US DOT Connected Vehicle Pilot)
• False positive rate: < 1%
• End-to-end latency: < 100 ms
3. Curve Speed Warning (CSW)
RSUs at hazardous curves broadcast recommended safe speed based on road geometry and conditions:
- Data Elements: Curve radius, bank angle, road surface condition (dry/wet/icy), recommended speed, curve length.
- Safe Speed Calculation: V_max = √(μ × g × R) where μ = friction coefficient (0.7 dry, 0.4 wet, 0.2 icy), g = 9.81 m/s², R = curve radius.
- Broadcast: RSU sends TIM (Traveler Information Message, SAE J2735) with road segment data at 1 Hz. Coverage: 500 m before curve approach.
- Vehicle Response: Compare recommended speed with current speed. If current speed exceeds recommendation by > 10 km/h, generate driver warning with audible alert.
4. E-ZPass / Electronic Toll Collection Integration
DSRC-based tolling extends beyond simple payment to support dynamic tolling and traffic management:
- Protocol: IEEE 1609.3 + SAE J2735 TollMessage. DSRC OBU communicates with toll RSU at 5.9 GHz.
- Transaction Flow: Vehicle OBU sends vehicle class and account ID. RSU processes toll deduction and sends receipt. Total transaction time: < 50 ms at highway speed.
- Multi-Lane Free Flow: Supports tolling at speeds up to 200 km/h. RSU antenna overhead coverage: 3-6 lanes.
5. Road Surface Condition Monitoring
RSUs equipped with environmental sensors broadcast real-time road conditions:
- Sensors: Temperature, humidity, rain sensor, road surface temperature, friction sensor.
- Message Types: TIM (Traveler Information Message) for road conditions, DENM for hazard warnings.
- Data Aggregation: RSU aggregates sensor data and broadcasts every 60 seconds or on event trigger. Updates are forwarded to TMC (Traffic Management Center) via backhaul.
V2P (Vehicle-to-Pedestrian) – Vulnerable User Safety
Vehicle-to-Pedestrian (V2P) communication is the most challenging V2X domain due to the asymmetry between vehicle and pedestrian devices. Vehicles have dedicated OBUs with high-power DSRC radios, while pedestrians rely on smartphones or wearable devices with limited wireless capabilities.
V2P Communication Architecture
• Vehicle Side (OBU):
– DSRC 802.11p: 5.9 GHz, 23 dBm, range 300-1000 m
– BLE 5.0: 2.4 GHz, 10 dBm, range 50-100 m (direct pedestrian detection)
– Cellular V2X (PC5): LTE/5G, range 500-1500 m
• Pedestrian Side:
– Smartphone App: Uses cellular + WiFi + BLE for V2P
– BLE Beacon: Low-power, coin cell battery, range 10-50 m
– Wearable Device: Smartwatch, fitness tracker with BLE
• Infrastructure Relay (RSU):
– Receives pedestrian BLE broadcasts, relays to vehicle via DSRC
– Extends pedestrian detection range: 300-500 m from intersection
Communication Modes:
• Mode 1 (Direct): Pedestrian device → Vehicle (BLE + DSRC)
• Mode 2 (Relay): Pedestrian device → RSU → Vehicle (BLE + DSRC)
• Mode 3 (Cloud): Pedestrian device → Cloud → Vehicle (Cellular)
V2P Implementation: Pedestrian Collision Warning
1. Smartphone-Based V2P Protocol
Pedestrian Safety Message (PSM, SAE J3138) defines the standard message format:
- Message Content: Position (lat/lon ±3m accuracy with GNSS), speed (0-20 km/h typical), heading, motion state (standing/walking/running/cycling), device type, user classification (adult/child/elderly).
- Broadcast Frequency: 1-10 Hz depending on motion state. Walking: 1 Hz. Running: 5 Hz. Crosswalk: 10 Hz.
- Latency Requirement: < 100 ms from pedestrian position change to vehicle warning.
- Protocol: PSM encapsulated in WSMP over DSRC, or as MQTT/CoAP payload over cellular.
2. Collision Risk Assessment Algorithm
Input Data:
• Vehicle: Position (lat_v, lon_v), speed_v, heading_v
• Pedestrian: Position (lat_p, lon_p), speed_p, heading_p, motion state
Risk Calculation:
• Predicted Vehicle Path: Extrapolate trajectory based on current speed and heading
• Predicted Pedestrian Path: Extrapolate trajectory (using motion model for pedestrians)
• Minimum Distance (D_min): Calculate minimum separation between predicted paths
• Time to Closest Approach (TCA): Time until minimum distance is reached
Warning Thresholds:
• GREEN (No Warning): D_min > 10 m OR TCA > 8 seconds
• YELLOW (Advisory): 5 m < D_min < 10 m AND TCA < 5 seconds
• ORANGE (Warning): 2 m < D_min < 5 m AND TCA < 3 seconds
• RED (Critical): D_min < 2 m AND TCA < 2 seconds → automatic braking
3. BLE Beacon-Based Implementation
Low-cost BLE beacons provide a practical V2P solution for high-risk areas:
- Beacon Specifications: Bluetooth 5.0, advertising interval 100-500 ms, TX power 0-10 dBm, coin cell battery life: 1-2 years.
- Detection Range: 10-50 m (adjustable by TX power setting). Optimal for crosswalk and school zone applications.
- Vehicle Integration: Vehicle OBU scans for BLE advertisements. Multiple beacons enable triangulation for position estimation (±5m accuracy).
- Limitations: BLE does not support V2P message standards (PSM). Position accuracy limited. Device density can cause channel congestion in crowded areas.
4. Crosswalk Safety Implementation
At signalized crosswalks, RSUs coordinate V2P communication for maximum safety:
- RSU Role: Detects pedestrians at crosswalk via BLE scanning. Broadcasts PSM to approaching vehicles via DSRC at 10 Hz.
- Vehicle Response: Receive PSM from RSU, calculate collision risk. If pedestrian is in crosswalk and vehicle is approaching: generate driver warning.
- Signal Integration: RSU connects to traffic signal controller. Pedestrian Walk phase activates enhanced V2P warning mode.
- Performance Metrics: Detection accuracy: > 95% (validated in NYC Connected Vehicle Pilot). False positive rate: < 2%.
5. Smartphone V2P App Architecture
Production V2P apps use a hybrid approach for maximum compatibility:
- Background Operation: Uses iOS/Android location services for continuous position updates. Energy-efficient geofencing triggers high-accuracy mode near intersections.
- Communication Transport: MQTT over cellular for cloud-based V2P. Direct BLE advertisement for local detection. WiFi RTT (Round Trip Time) for indoor positioning.
- Privacy Protection: Pedestrian identity is anonymized. Temporary device IDs change every 15 minutes. Position data fuzzed to ±10m for non-critical applications.
- Battery Impact: < 5% additional battery drain per day (optimized with adaptive location polling).
V2C (Vehicle-to-Cloud) – Telematics & Connected Services
Vehicle-to-Cloud (V2C) communication connects vehicles to cloud-based services via cellular networks (4G LTE, 5G NR) or through RSU backhaul. V2C enables applications that require cloud processing, historical data aggregation, or human interaction.
V2C Network Architecture
• Vehicle Telematics Unit (TCU):
– Cellular Modem: 4G LTE Cat 4/6 or 5G NR (3GPP Release 15+)
– GNSS Receiver: GPS + GLONASS + BeiDou
– Processor: ARM Cortex-A, 1-2 GHz, 2-4 GB RAM
– Storage: 32-128 GB for local data buffering
– CAN Bus Interface: OBD-II, vehicle data bus
• Cloud Platform:
– IoT Hub: MQTT/CoAP message broker (AWS IoT Core, Azure IoT Hub)
– Data Pipeline: Stream processing (Kafka/Spark) for real-time analytics
– Storage: Time-series DB (InfluxDB/TimescaleDB) for telemetry
– APIs: RESTful APIs for mobile/web frontends
Communication Protocols:
• MQTT (v3.1.1/v5): Primary protocol, QoS 0/1/2, persistent session
• HTTP/2: For large file transfers (map updates, logs)
• gRPC: For low-latency command/control
• WebSocket: For real-time dashboards
V2C Key Applications – Implementation
1. Remote Vehicle Diagnostics and Predictive Maintenance
- Data Collection: TCU reads CAN bus data at 1-10 Hz: engine RPM, coolant temperature, battery voltage, DTC (Diagnostic Trouble Codes). Data is compressed and sent to cloud every 60 seconds.
- Cloud Processing: ML models detect anomalies: vibration patterns indicating bearing wear, temperature trends predicting cooling system failure. Models trained on fleet-wide data, achieving > 85% prediction accuracy.
- Alert Generation: Critical alerts sent to driver via in-vehicle notification. Non-critical alerts queued for service scheduling.
- Data Volume: 10-100 MB per vehicle per day (compressed). Fleet of 1000 vehicles generates 10-100 GB/day.
2. Over-the-Air (OTA) Firmware Updates
- Update Types: SOTA (Software OTA): Infotainment, navigation maps. FOTA (Firmware OTA): ECU firmware, TCU firmware, ADAS software.
- Protocol: Uptane TUF (The Update Framework) for secure OTA. Differential updates reduce download size by 70-90%.
- Update Flow: Cloud packages update → Vehicle downloads via cellular → Verify signature → Install at next ignition cycle. For safety-critical updates: requires vehicle in PARK, ignition OFF, battery > 50%.
- Bandwidth: Typical update size: 50 MB (map) to 2 GB (ECU firmware). Download at 4G LTE speeds (10-50 Mbps).
3. Fleet Management Platform
• Real-Time Tracking: Vehicle position reported every 10-30 seconds via MQTT. Geofencing zones defined in cloud, trigger alerts on entry/exit.
• Driver Behavior Monitoring: Accelerometer + gyroscope data analyzed for harsh braking (> 4 m/s²), rapid acceleration, sharp cornering.
• Route Optimization: Historical data used to predict ETAs. Dynamic rerouting based on traffic and weather data.
• Fuel/Energy Monitoring: Fuel consumption (ICE) or battery SOC (EV) tracked per route. Anomalies flagged for investigation.
Data Flow:
• CAN Bus → TCU (10 Hz) → Cellular (60 second batch) → Cloud IoT Hub → Stream Processor → Database
• Cloud → Vehicle: Command messages (lock/unlock, climate control, route push) via MQTT topic subscription
4. Map and HD Map Updates
- Data Types: Standard navigation maps (update quarterly). HD maps for autonomous driving (update monthly). Points of interest (update weekly via streaming).
- Crowdsourced Mapping: Vehicles upload road condition data (lane markings, signs, construction zones). Cloud aggregates data from multiple vehicles to validate and update maps.
- Distribution: Incremental updates only. Map tile updates: 5-50 MB per region. HD map updates: 200-500 MB per city.
5. In-Vehicle Infotainment
- Streaming Services: Music, video, podcast streaming via cellular. Adaptive bitrate based on signal quality (HLS/DASH).
- Voice Assistants: Cloud-based ASR (Automatic Speech Recognition) for navigation, media control, climate control. Latency: < 1 second for voice query.
- Personalization: Driver profiles synced to cloud: seat positions, climate preferences, audio settings, navigation history.
Technical Challenges & Solutions
1. High Mobility and Rapid Topology Changes
| Challenge | Impact | Solution | Implementation |
|---|---|---|---|
| Link breakage at highway speeds | Packet loss, rerouting overhead | Predictive routing (MOPR) | Use GPS + speed to predict future positions, pre-emptively establish backup routes |
| Frequent neighbor changes | Control channel congestion | Adaptive beacon rate | Reduce HELLO broadcast to 1 Hz in dense traffic, increase to 10 Hz on open road |
| Network fragmentation | Disconnected components | Store-carry-forward routing | Vehicles buffer messages until they connect to another fragment, then forward |
2. Latency and Reliability
• Application Processing: 5-10 ms (BSM generation, sensor data fusion)
• Security Signing: 5-10 ms (ECDSA signature generation)
• MAC Layer Access: 10-50 ms (CSMA/CA contention, backoff)
• Transmission Time: < 1 ms (OFDM symbol at 6 Mbps)
• Propagation Delay: < 5 μs (300-1000 m distance)
• Security Verification: 5-10 ms (ECDSA signature verification)
• Application Processing: 5-10 ms (threat assessment, warning generation)
Total End-to-End Latency: 30-100 ms
Target for safety applications: < 100 ms (mandated by NHTSA, EU C-ITS)
3. Security and Privacy
- Threat Models: Denial of Service (channel jamming), Sybil attacks (fake vehicles), message falsification, replay attacks, tracking attacks.
- Mitigation: PKI-based authentication (IEEE 1609.2), digital signatures on all safety messages, misbehavior detection using ML anomaly detection.
- Privacy: Pseudonym certificates that change every 5 minutes. Mix zones where multiple vehicles change pseudonyms simultaneously.
Hardware Implementation with Zukaka Products
The Zukaka product line provides the mesh networking foundation for VANET deployments. Each product is optimized for different vehicular use cases:
YN300A (2.4GHz Wireless Mesh Motherboard) for RSU Backbone
- Deployment: Roadside infrastructure backbone. Connects RSUs via 2.4GHz mesh at up to 1.5 km range.
- Throughput: 300 Mbps PHY rate supports multiple RSUs per backhaul link. Aggregates V2V/V2I data for cloud forwarding.
- Industrial Grade: -40°C to +85°C, suitable for roadside cabinets and pole mounting. IP65 enclosure compatible.
- Mesh Support: 802.11s, AODV, OLSR routing enables self-healing RSU mesh backbone with < 1 second failure recovery.
YN300C (2.4G Mobile Wireless Ad-Hoc Network Motherboard) for Vehicle OBU
- Deployment: Vehicle on-board unit. Compact 117x68x17mm module fits in vehicle telematics box. Based on Qualcomm chipset with 30dBm TX power for reliable vehicular connectivity.
- Fast Network Formation: Automatic mesh/ad-hoc network formation within 30 seconds. Supports MANET scale > 50 nodes with relay capability > 10 hops.
- Power Consumption: ~10W average, with wide input range 7V-48V DC or 15V-48V PoE. Suitable for vehicle battery with appropriate power conditioning.
- MANET Routing: OpenWrt SDK support enables implementation of custom routing protocols including AODV/DSR/OLSR via software configuration.
YN300B (5.8GHz Single-Client Ad Hoc Network PCBA) for Long-Distance Backhaul
- Deployment: Long-distance backhaul between RSU clusters or between command vehicles. 5.8GHz band provides reduced interference in urban environments.
- Throughput: Up to 96 Mbps (802.11n, 30dBm TX power). Supports HD video surveillance backhaul (H.264/H.265 at 1080p30) and multi-hop data relay.
- Range: 10-20 km with elevated antennas, 1.5-2 km over ground obstacles. Suitable for highway backhaul and emergency communication vehicles.
- Multi-Topology: Supports P2P, P2MP, MP2MP, and mesh networking. MANET scale > 50 nodes with relay capability > 10 hops.
Product Selection for VANET Deployment Scenarios
| Deployment Scenario | Recommended Product | Role | Configuration |
|---|---|---|---|
| RSU Mesh Backbone | YN300A + YN300B | RSU interconnect | YN300A for 2.4GHz mesh, YN300B for 5.8GHz backhaul |
| Vehicle OBU (Basic V2V) | YN300C | In-vehicle unit | 2.4GHz ad-hoc mode, OpenWrt routing, BSM forwarding |
| Vehicle OBU (Advanced V2X) | YN300A | In-vehicle with mesh routing | 2.4GHz mesh mode, 300Mbps throughput for sensor data aggregation |
| Highway Backhaul | YN300B | Long-range point-to-point backbone | 5.8GHz, 30dBm TX, 10-20 km elevated LOS |
| Platoon Coordination | YN300C | Inter-vehicle ad-hoc mesh | 2.4GHz ad-hoc, multi-hop relay > 10 hops |
Frequently Asked Questions
Q: What is the difference between DSRC and C-V2X for V2V communication?
DSRC (IEEE 802.11p) and C-V2X (3GPP PC5) are competing V2V communication standards. DSRC is more mature and deployed in EU, US, and Japan. C-V2X offers longer range (1000m vs 500m), better high-speed performance (up to 500 km/h), and 5G evolution path. Current US FCC ruling allocates the 5.9 GHz band to both technologies, with C-V2X gaining preference in China and emerging markets. See our detailed DSRC vs C-V2X comparison.
Q: What is the minimum hardware required for V2V collision avoidance?
Each vehicle needs: (1) DSRC OBU (IEEE 802.11p radio, 5.9 GHz), (2) GPS receiver with 3m accuracy at 10 Hz update rate, (3) CAN bus interface for brake status and vehicle dynamics data, (4) Application processor for BSM generation and threat assessment. Total BOM cost: approximately $200-500 per vehicle at production scale.
Q: How does VANET handle intersection safety without RSU infrastructure?
Without RSUs, VANET relies on V2V communication for intersection safety. Vehicles broadcast BSMs with position, speed, and heading. Each vehicle independently calculates collision risk using trajectory prediction algorithms. The “hidden intersection” problem is mitigated through: (1) infrastructure-free cooperative sensing via vehicle relay, (2) multi-hop intersection warning using adjacent vehicles as intermediaries, (3) Intersection Movement Assist (IMA) messages defined in SAE J2735.
Q: What is the BSM transmission frequency and why 10 Hz?
BSMs are broadcast at 10 Hz (every 100 ms) per SAE J2735 standard. At 60 mph (100 km/h), a vehicle travels 27m in 1 second. At 10 Hz, position updates every 2.7m. Higher frequencies would saturate the DSRC control channel in dense traffic (200+ vehicles). The 10 Hz rate fits within the 46 ms CCH interval. Safety-critical events trigger higher-priority messages outside the regular 10 Hz schedule.
Q: How accurate is V2V positioning and what happens in GPS-denied environments?
Standard GPS accuracy for V2V is ±3m (unaided) and ±0.5m with DGPS/RTK corrections. In GPS-denied environments (tunnels, urban canyons), VANET uses: (1) IMU dead reckoning with 5-10% drift over distance, (2) RSSI/ToF relative positioning from nearby vehicles (±1-3m), (3) RSU-based triangulation, (4) visual odometry. Minimum ±5m absolute accuracy required for safety applications.
Q: What frequency bands and channels are used for VANET in different regions?
US: 5.850-5.925 GHz (7 channels of 10 MHz, DSRC band). EU: 5.875-5.905 GHz (ITS-G5). Japan: 5.77-5.85 GHz. China: 5.905-5.925 GHz (C-V2X dedicated). Some implementations use 2.4 GHz ISM band (Zukaka YN300A) for backhaul and non-safety mesh. The 5.9 GHz DSRC band provides 75 MHz of licensed spectrum with priority for transportation safety.
▶ Related Cluster Articles:
