YNW-6502BK Emergency Video Surveillance MESH Camera | 30X PTZ
Portable wireless video surveillance broadband MESH device with an integrated HD PTZ camera dome, high-performance Li-ion battery, and COFDM multi-carrier wireless module. Provides a point-to-point throughput peak of 70Mbps, 30X/20X optical zoom, 12X digital zoom, 60-80m IR night vision, 360° PTZ with 200 presets, built-in WiFi and GPS/BeiDou positioning, and operates in areas with no 4G signal or public infrastructure.
ModelYNW-6502BK
Product NameEmergency Video Surveillance Broadband Wireless MESH Ad-Hoc Network Equipment
SeriesYNW-6500 Series MESH Ad-Hoc Network Equipment
Core TechnologyCOFDM + MESH Multi-hop Ad-Hoc Network + Integrated HD PTZ Camera Dome + Built-in Li-ion Battery
1. Product Overview
The YNW-6502BK video surveillance broadband wireless MESH Ad-Hoc product is a newly launched portable wireless video surveillance MESH device from our company. Developed on COFDM technology and MESH multi-hop Ad-Hoc networking, it achieves free-form networking among different device form factors, enabling users to rapidly build reliable wireless links in complex environments. With a built-in HD camera, high integration, and a high-performance internal Li-ion battery, it satisfies the special requirements of temporary surveillance and rapid deployment. As a broadband Ad-Hoc radio that forms a centerless, Ad-Hoc, self-adaptive, self-healing Mesh network, it is the optimal choice for point-to-point, point-to-multipoint, or multipoint-to-multipoint integrated-services communications. The Mesh radio delivers dynamic routing, multi-hop relay of HD video, multi-channel data, and high-fidelity voice between different nodes within the same network under complex conditions such as fast movement, non-line-of-sight (NLOS) obstruction, and environmental interference.
It can operate in areas with no 4G signal and no public infrastructure (such as fiber optic or network cable), and is a HD PTZ camera dome with an integrated wireless broadband Ad-Hoc module, purpose-built for outdoor fixed HD surveillance. The dome integrates a 1/2.8″ high-performance progressive-scan CMOS sensor and a high-performance multimedia processor, an embedded Linux system, an H.265 encoding module, and so on, making it a highly integrated network camera dome that integrates video acquisition, image processing, and wireless transmission in one unit.
This product is highly suitable for the emergency sector and temporary surveillance. With its built-in centerless Ad-Hoc communications function, it can rapidly form a centerless broadband Ad-Hoc network together with the other product series of our company.
- Core Selling Points: One-piece structural design integrating an HD PTZ camera dome, a COFDM wireless MESH module, and a high-performance Li-ion battery — turn it on and it works, with no extra power supply, and it can operate in the field with no 4G signal or no public infrastructure coverage
- Target Users: Users in emergency communications, public safety, public-security surveillance, firefighting command, temporary monitoring, and rescue and disaster relief
- Applicable Scenarios: Emergency communications, temporary surveillance, outdoor monitoring, rescue and disaster relief, firefighting command, forest-area monitoring, and border monitoring — scenarios where there is no public-network coverage or the public network is down

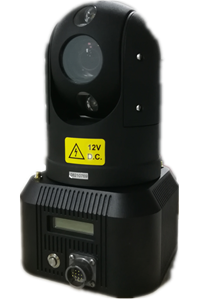

2. Product Views
3. Key Features
4. Technical Specifications
4.1 Wireless Characteristics
| Category | Parameter | Specification | Custom Option |
|---|---|---|---|
| Wireless Characteristics | Frequency Range | 1437±15MHz | 225MHz ~ 1.5GHz customizable |
| Bandwidth | 5 / 10 / 20MHz adjustable | — | |
| Modulation | COFDM | — | |
| Constellation Modulation | BPSK / QPSK / 16QAM / 64QAM (adaptive) | — | |
| Data Rate | Peak 70Mbps @ 20MHz | — | |
| Digital Sensitivity | -92dBm @ 5MHz | — |
4.2 Camera Characteristics
| Category | Parameter | Specification | Custom Option |
|---|---|---|---|
| Camera Characteristics | Video Encoding | H.265 Main Profile | — |
| Minimum Illumination | Color: 0.05Lux @ (F1.6, AGC ON); B/W: 0.01Lux @ (F1.6, AGC ON) | — | |
| Day/Night Conversion Mode | ICR IR-cut filter | — | |
| Resolution | 1920×1080 / 1280×720, 25fps / 30fps | — | |
| Optical Zoom | 30X, 20X optional | — | |
| IR Range | 60-80m | — | |
| Digital Zoom | 12X | — | |
| 3D Noise Reduction | Supported | — | |
| Image Sensor | 1/2.8″ high-performance progressive-scan CMOS | — |
4.3 PTZ Specifications
| Category | Parameter | Specification | Custom Option |
|---|---|---|---|
| PTZ Specifications | Horizontal Rotation Angle | 360° | — |
| Vertical Rotation Angle | -15° ~ 90° | — | |
| Presets | 200 | — | |
| Battery | 10400mAh | — |
4.4 Physical Characteristics
| Category | Parameter | Specification | Custom Option |
|---|---|---|---|
| Physical Characteristics | Charging Time | <3 hours | — |
| Operating Time | >10 hours | — | |
| Operating Temperature | -20°C ~ 60°C | — | |
| Dimensions | 155 × 150 × 260mm (incl. battery) | — | |
| Weight | 5kg (incl. battery) | — |
5. Applications
The YNW-6502BK is a self-contained, battery-powered mobile surveillance station: an HD PTZ camera dome, 30X/20X optical zoom, 12X digital zoom, 60-80 m IR night vision, 360-degree pan with 200 presets plus an integrated COFDM MESH radio up to 70 Mbps. Fully portable with built-in WiFi and GPS/BeiDou, it raises a wireless vault where there is no 4G or infrastructure.
1. Border & Coastal Surveillance MESH
Border and coastal watch points that need quick, mobile camera coverage over wide, uncovered terrain.
Deployment Solution
- Mobile observation vault: the all-in-one unit parks anywhere and feeds the live PTZ view over the MESH.
- Long-reach capture: 30X optical zoom watches distant activity without a fixed tower.
- Relocatable watch points: repositioned quickly as patrol priorities shift.
Application Value
Patrol commands get immediately-deployable, long-zoom video at the frontier, with night vision extending watch hours and a MESH backhaul returning it to command.
2. Convoy & Route Watch MESH
Convoy and route monitoring at chokepoints, bridges and staging areas that need temporary camera coverage.
Deployment Solution
- Drop-and-watch node: deployed at a chokepoint to monitor convoy passage on the mesh.
- PTZ follow-through: operator or preset-driven tracking keeps vehicles in frame.
- Battery independence: built-in Li-ion power runs the vault without grid or cables.
Application Value
Route commands mount temporary HD coverage exactly where needed, watching convoy flow live without waiting for permanent camera installs.
3. Coastal & Port Video MESH
Ports, coastal facilities and boarding areas needing rapid temporary video from points of interest.
Deployment Solution
- Ad-hoc port vault: deployed at key quay and anchorage viewpoints to cover boarding and traffic.
- Zoom-edged evidence: high zoom captures vessel and personnel details at distance.
- Mesh-wired reporting: video returns over the wireless backhaul to the harbor office.
Application Value
Harbor authorities gain temporary, high-detail video coverage of boarding and movement points, improving maritime surveillance and evidence quality.
4. Event & Security Surveillance MESH
Major-event security, checkpoints and emergency scenes needing deployable, covert-capable camera coverage.
Deployment Solution
- Quick post coverage: placed at entry and crowd points for full-area watching.
- Preset sweep automation: 200 presets sweep large venues with scheduled scanning.
- MESH backhaul to command: PTZ views flow to the security command console.
Application Value
Security staff stand up broad temporary video coverage at venues and checkpoints, seeing live PTZ views at command for faster detection and response.
5. Fire-scene & Rescue Surveillance MESH
Fire scenes and rescues where an elevated, movable camera supports incident visibility.
Deployment Solution
- Scene look-out: deployed near the perimeter for a high view of the fire.
- Night-fire awareness: thermal-adjacent IR vision keeps working after dark.
- Relocatable as fire moves: easily moved to follow the incident.
Application Value
Incident command holds a persistent, movable scene view during fires and rescues, supporting situational judgment and firefighter safety.
6. Disaster Zone Observation MESH
Earthquake and flood zones needing temporary damage and victim-status observation.
Deployment Solution
- Immediate zone vault: raised quickly to observe the affected area.
- Zoom damage survey: high zoom inspects structures and access remotely.
- Self-powered watch: no power grid needed in the devastated zone.
Application Value
Responders get fast, remote visual reconnaissance of damaged zones, guiding safe access and rescue prioritization before ground teams enter.
7. Forest Fire Observation MESH
Forest-fire look-out and early-warning watch points providing persistent views of woodland.
Deployment Solution
- Portable look-out: placed on vantage points for fire-line observation.
- Zoom smoke detection: long-zoom and IR catch early smoke and hotspots.
- Mesh alarm feed: video and alarms return to the fire-prevention center.
Application Value
Fire-prevention staff gain relocatable, high-zoom lookout coverage that catches ignitions early and returns watch video to command for rapid suppression.
