YNW-6502SW outdoor broadband MESH base station 70Mbps peak 10+km range
Compact, high-throughput outdoor wireless broadband MESH Ad-Hoc network device based on multi-carrier COFDM and MESH multi-hop Ad-Hoc networking. Point-to-point throughput peak of 70Mbps, transmission range >10km, 16-node (up to 32-node customizable) Ad-Hoc with >8 hops, IP65 rating, H.265/H.264 video compression, and low 7W power consumption.
ModelYNW-6502SW
Product NameBroadband Wireless MESH Outdoor Base Station (Ad-Hoc Network Product)
SeriesYNW-6500 Series MESH Ad-Hoc Network Equipment
Core TechnologyCOFDM + MESH Multi-hop Ad-Hoc Network
1. Product Overview
The YNW-6502SW broadband wireless MESH outdoor base station Ad-Hoc network product is a newly launched compact, high-throughput outdoor wireless broadband MESH device from our company. Developed on COFDM technology and MESH multi-hop Ad-Hoc networking, it achieves free-form networking among different device form factors, enabling users to rapidly build reliable wireless links in complex environments and providing fast, flexible solutions for various application requirements (e.g., HD video, voice intercom, and IP data transmission).
As a broadband Ad-Hoc radio that forms a centerless, Ad-Hoc, self-adaptive, self-healing Mesh network, the YNW-6502SW is the optimal choice for point-to-point, point-to-multipoint, or multipoint-to-multipoint integrated-services communications. The Mesh radio delivers dynamic routing, multi-hop relay of HD video, multi-channel data, and high-fidelity voice between different nodes within the same network under complex conditions such as fast movement, non-line-of-sight (NLOS) obstruction, and environmental interference.
- Core Selling Points: Multi-carrier COFDM technology with a peak throughput of 70Mbps; multi-hop Ad-Hoc networking supporting seamless 32-node coverage
- Target Users: System integrators and engineering contractors in military communications, public safety, emergency communications, and industry information private networks

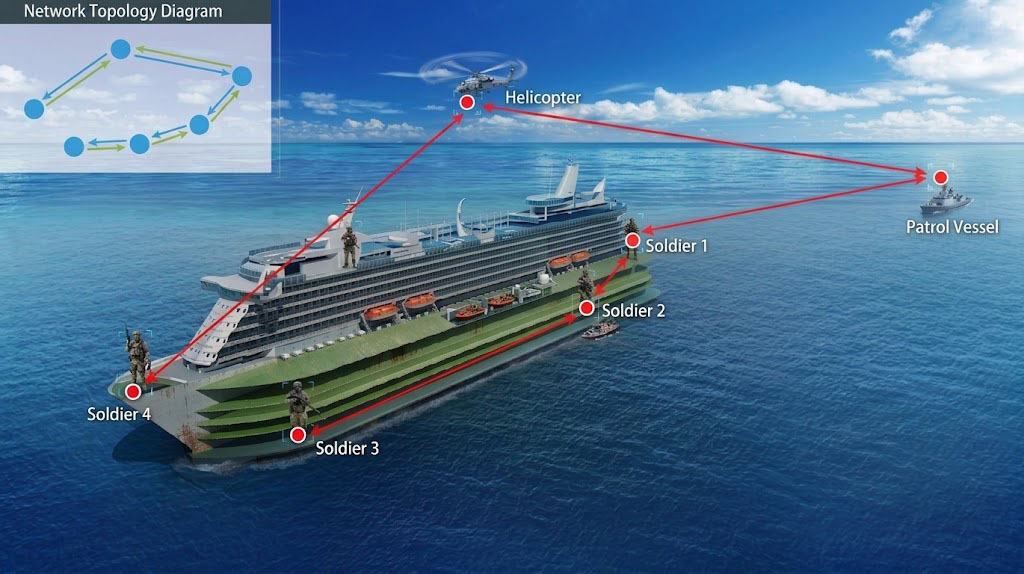

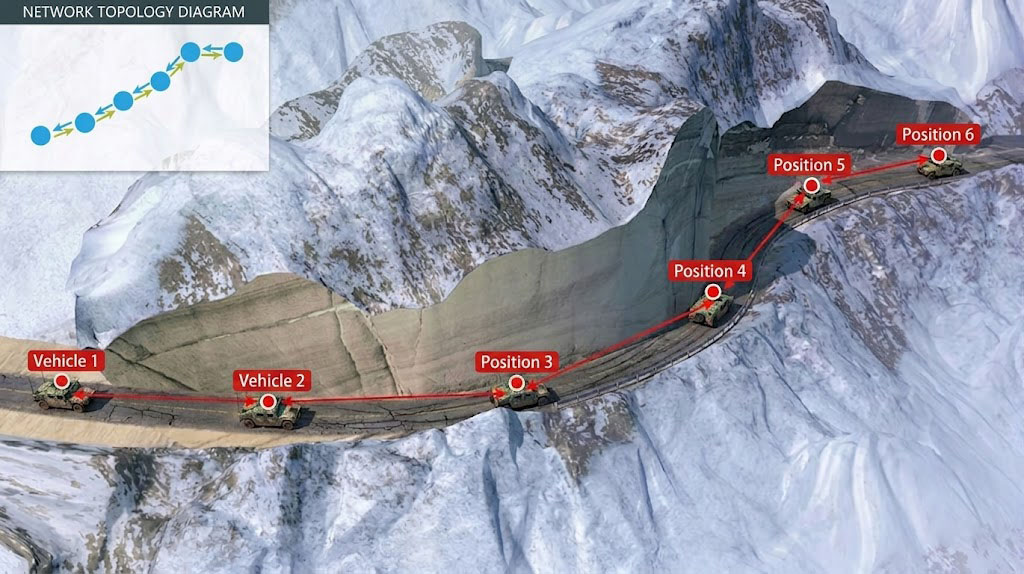

- Applicable Scenarios: Counter-terrorism and emergency response, public-security law enforcement, security operations, rescue and disaster relief, firefighting command, forest fire prevention, power-line patrol, UAV swarms, fleet interoperability, vessel formations, and maritime communications

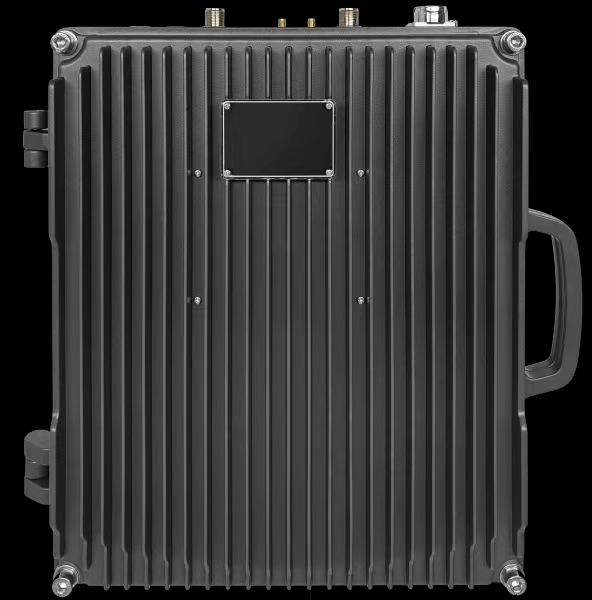

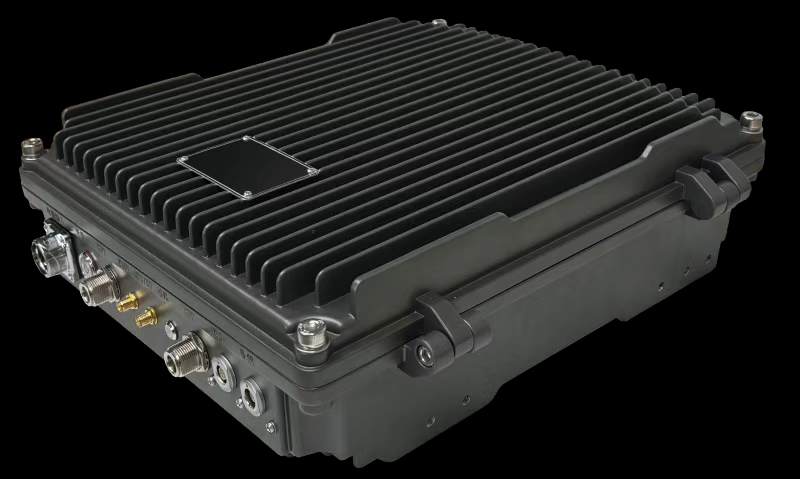

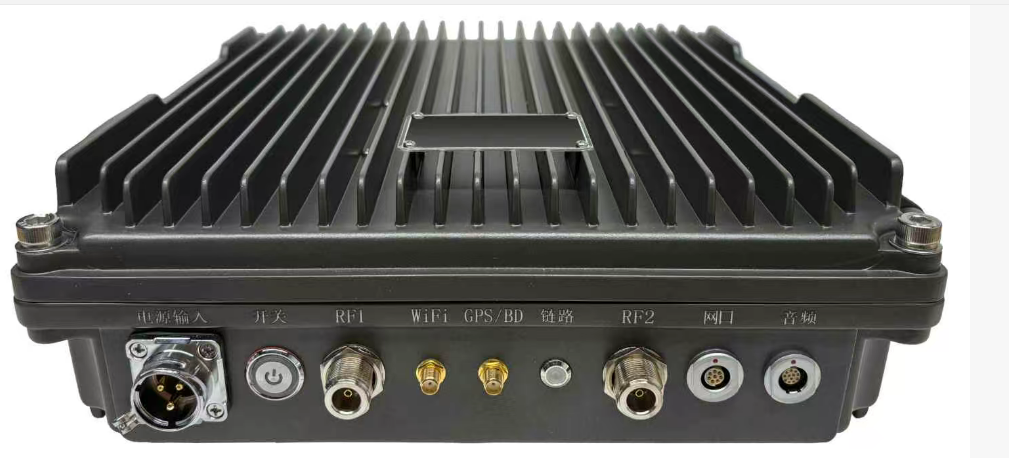

2. Product Views
3. Key Features
4. Technical Specifications
4.1 Wireless Characteristics
| Category | Parameter | Specification | Custom Option |
|---|---|---|---|
| Wireless Characteristics | Frequency Range | 1437 ± 15MHz | 200MHz ~ 1.5GHz customizable |
| Bandwidth | 5 / 10 / 20MHz adjustable | — | |
| Modulation | COFDM | — | |
| Constellation Modulation | BPSK / QPSK / 16QAM / 64QAM (adaptive) | Fixed data rate customizable | |
| Data Rate | Peak 70Mbps @ 20MHz | — | |
| Digital Sensitivity | -92dBm @ 5MHz | — | |
| Transmission Distance | >10km (line of sight) | — | |
| Transmit Power | 20~30dBm per channel (adjustable) | Power customizable |
4.2 Networking Functions
| Category | Parameter | Specification | Custom Option |
|---|---|---|---|
| Networking Functions | Networking Capability | Supports 16 nodes | Up to 32 nodes customizable |
| Networking Hops | >8 | — | |
| Network Topology | Centerless network, star network, chain network, mesh network, etc. | — | |
| Network Transparent Relay | Supports network transparent relay function | — |
4.3 System Functions
| Category | Parameter | Specification | Custom Option |
|---|---|---|---|
| System Functions | Peripheral Interfaces | Network port, headset | — |
| Video Input | Supports IP video input | HDMI / AV / VGA / SDI input customizable | |
| Video Compression | H.265 / H.264 | Customizable | |
| Control Functions | Supports network management system platform | — | |
| System Upgrade | Supports one-key upgrade and remote upgrade | — | |
| Other Functions | GPS / BeiDou, WiFi | — |
4.4 Physical Characteristics
| Category | Parameter | Specification | Custom Option |
|---|---|---|---|
| Physical Characteristics | Power Consumption | ≤ 7W | — |
| Power Supply | DC 14.6-14.8V or AC 220V | — | |
| Operating Temperature | -20°C ~ 55°C | — | |
| Operating Humidity | 10% ~ 90% | — | |
| Protection Rating | IP65 | — | |
| Dimensions | 320 × 225 × 132mm | — | |
| Total Weight | < 8kg | — |
5. Applications
The YNW-6502SW is a compact outdoor MESH base-station radio: a 70 Mbps multi-carrier COFDM engine, about 10 km point-to-point range, a 16-node (up to 32-node custom) Ad-Hoc mesh with more than 8 hops, IP65 protection and only 7 W power draw. Light and low-power, it acts as the backbone for permanent outdoor wireless networks.
1. Border-longevity Backbone MESH
Long-term border networks where low-power, weather-proof base stations must run continuously along exposed terrain.
Deployment Solution
- Permanent low-power node: only 7 W sustain 24/7 operation on solar or utility power.
- All-weather fielding: IP65 housing withstands sun, rain and dust on frontier towers.
- 10 km cell spacing: fewer, wider cells lower the cost of covering long borders.
Application Value
Weather-proof, power-lean base stations knit permanent frontier coverage that runs around the clock, returning patrol and sensor data to command reliably.
2. Campus & Route Backbone MESH
Campus, industrial and route corridors needing reliable outdoor broadband links between buildings and waypoints.
Deployment Solution
- Building-to-building trunk: base units link campus and industrial blocks with 70 Mbps.
- Multi-hop seamlessness: 8+ relays thread signals around obstructions.
- Low-OpEx always-on: tiny power draw keeps always-on links financially sustainable.
Application Value
Campuses, plants and corridors get dependable outdoor broadband between points, with low power budget and weather-proof reliability.
3. Port & Harbour Base MESH
Port yards, quays and coastal facilities linking monitoring cameras and systems over outdoor wireless.
Deployment Solution
- Zonal camera base: base stations aggregate PTZ and sensor video from a port area.
- Weatherized maritime node: IP65 suits exposed quay and yard mounting.
- Scale-up to 32 nodes: custom 32-node meshes cover larger facilities.
Application Value
Ports run a dependable outdoor MESH that draws camera and operational video from across the yard to central monitoring.

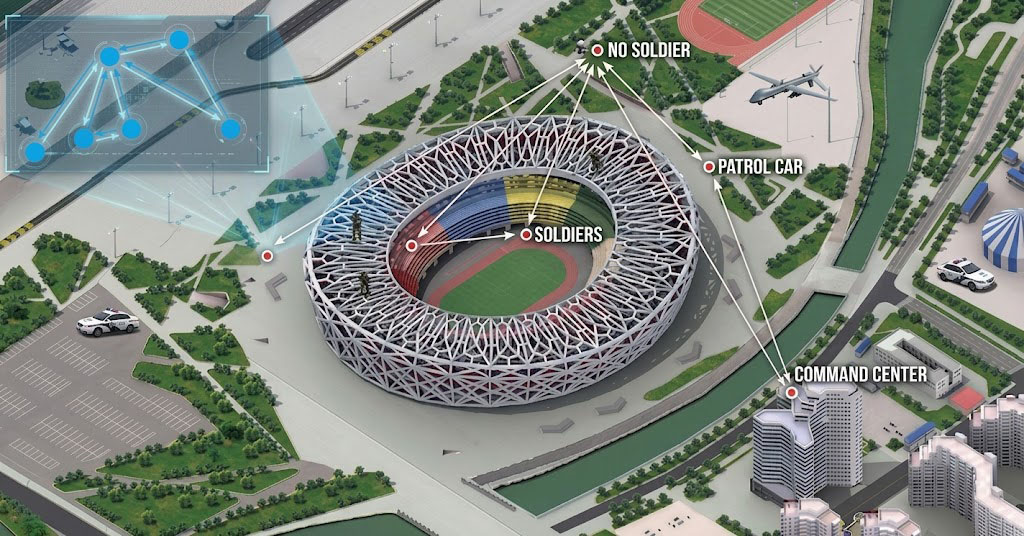

4. City Security Backbone MESH
Municipal surveillance linking outdoor cameras and checkpoints on a permaament wireless fabric.
Deployment Solution
- Camera-sector base: each station aggregates neighborhood camera feeds.
- Resilient sector mesh: a lost node re-routes around, keeping monitoring up.
- Low-footprint install: compact, low-power units mount unobtrusively on poles and masts.
Application Value
City operators aggregate sector video onto a dependable outdoor MESH that stays monitoring through normal failures and weather.
5. Fire-watch Tower Backbone MESH
Watchtower networks linking fire look-outs and early-warning sensors.
Deployment Solution
- Tower-to-tower links: base units bridge watchtowers across woodland.
- Sensor aggregation: smoke and thermal data converge to the fire center.
- Green-power ready: 7 W draw suits solar-fed towers.
Application Value
Watchtowers and sensors ride a low-power outdoor MESH that returns fire warnings quickly and runs economically in the field.

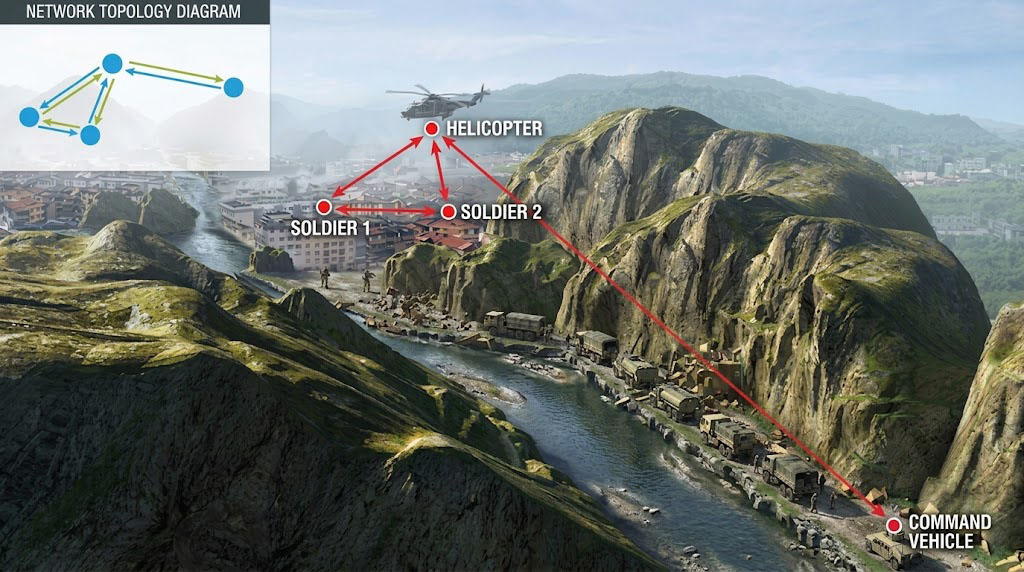

6. Disaster Base Relaunch MESH
Re-establishing outdoor coverage at fixed sites after disasters damage repeaters.
Deployment Solution
- Rapid base re-anchor: portable-lite base units re-open key sites fast.
- Multi-hop relinking: 8+ hops reconnect damaged networks to surviving backbones.
- Self-healing remesh: topology rebuilds automatically as sites return.
Application Value
Disaster sites regain outdoor coverage quickly as fixed bases are restored, chaining damaged areas back to core command networks.

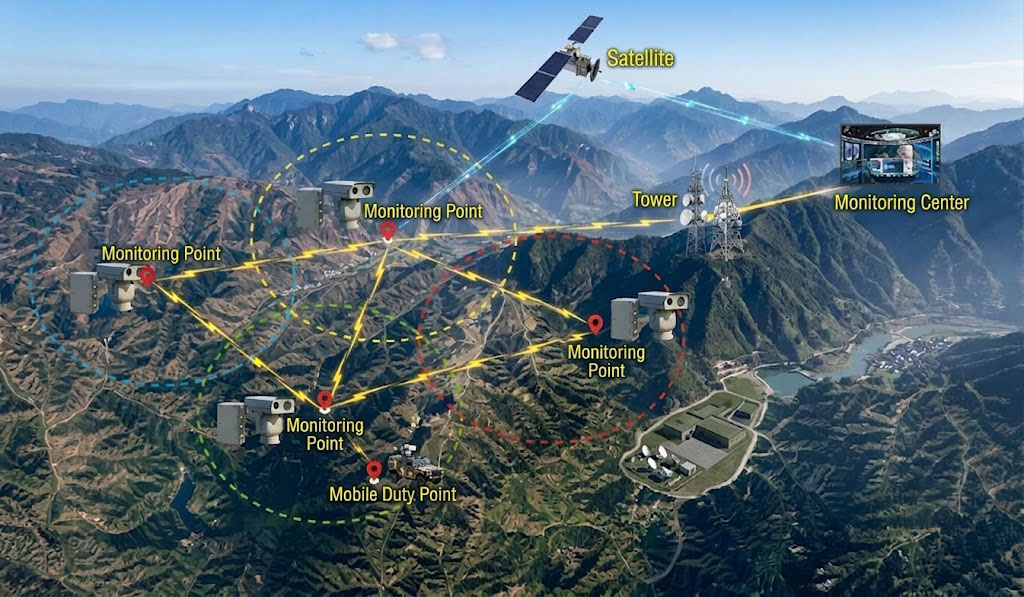

7. Forest Platform Base MESH
Permanent forest-fire monitoring platforms and management stations needing robust outdoor links.
Deployment Solution
- Platform backbone: base stations anchor monitoring platforms across forest areas.
- All-season operation: IP65 and low power keep links through harsh conditions.
- Early-alarm path: thermal reports traverse the base mesh to the fire center.
Application Value
Forest platforms stay on a reliable outdoor MESH that delivers early-warning data year-round with minimal energy spend.
