WiFi 6 2×2 MU-MIMO Dual-Band Selectable Module QCN6024 WLE3002HX
- Qualcomm QCN6024 or QCN9024 ‘Pine’ series for Commercial Grade
- Qualcomm QCN9074 ‘Pine’ series for Industrial Grade
- Standard size MiniPCIe with PCIe 3.0 Interface
- Derived from PN03.1 Reference Design
- Supports up to 1024-QAM
- -20°C to 70°C operating temperature for commercial grade
- -40°C to 85°C operating temperature for industrial grade
WLE3002HX – WiFi 6 2×2 MU-MIMO Dual-Band Selectable Module
Product Overview
WLE3002HX is a Dual-Band Selectable (2.4GHz or 5GHz) WiFi 6 (802.11ax) module based on Qualcomm’s QCN6024, QCN9024, or QCN9074 ‘Pine’ series. This is the first 2T2R (2×2) MU-MIMO solution supporting selectable dual-band operation, available in both commercial grade (QCN6024 or QCN9024) and industrial grade (QCN9074).

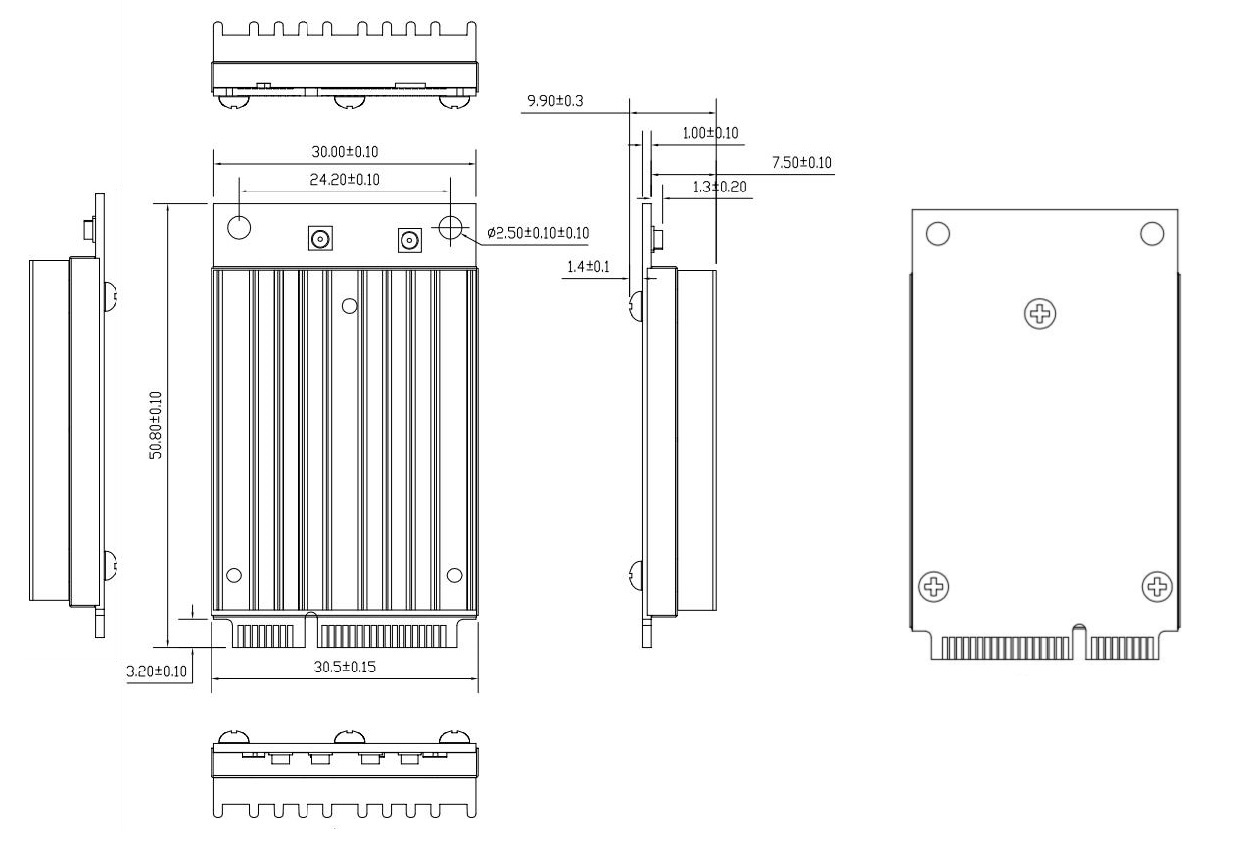

Featuring a standard 30 x 51 mm MiniPCIe form factor, WLE3002HX integrates seamlessly into host systems. With 2 spatial streams, it achieves up to 2.4Gbps at 160MHz bandwidth. Delivers up to 20dBm per chain for both 5GHz and 2.4GHz bands with efficient 3.3V design. Supports concurrent AP + STA mode for backhaul and client connectivity simultaneously.
Supporting up to 1024-QAM with OFDMA, WLE3002HX is ideal for Enterprise, Industrial, Cybersecurity, Transportation, and SMB applications. FIPS L2 is available uniquely on QCN9074 for cryptographic protection. Works with Intel x86 and ARM processors (NXP, Marvell) – not restricted to Qualcomm ecosystem.
Key Overview
Target Users: Enterprise wireless access, Industrial automation, Cybersecurity appliances, Transportation systems, SMB networking equipment.
Core Strengths: Dual-band selectable operation, WiFi 6 with OFDMA, MiniPCIe form factor, FIPS L2 on QCN9074, 3rd party platform support.
Typical Applications: WiFi 6 access points, industrial IoT gateways, security appliances, edge computing, dual-band wireless routers.
Technical Specifications
General
| Parameter | Specification |
|---|---|
| Chipset(s) | Qualcomm QCN6024 (Commercial) / QCN9024 (Commercial) / QCN9074 (Industrial) |
| Type of Connector(s) | 2x U.FL Connectors |
| WiFi Interface | PCIe 3.0 |
| Form Factor | MiniPCIe (30 x 51 mm) |
Wireless
| Parameter | Specification |
|---|---|
| WiFi Standard | IEEE 802.11a/b/g/n/ac/ax (WiFi 6) |
| Frequency Bands | Dual-Band Selectable: 2.4GHz or 5GHz |
| 2.4GHz Band | 802.11b/g/n/ax, max 19dBm per chain, up to 573Mbps |
| 5GHz Band | 802.11a/n/ac/ax, max 20dBm per chain, up to 2402Mbps |
| WLAN Frequency Range | 2.412~2.472GHz / 5.150~5.850GHz |
| Channel Spectrum Widths | 20/40MHz at 2.4GHz / 20/40/80/160MHz at 5GHz |
| MIMO Configuration | 2×2 MU-MIMO (2T2R) |
| Modulation | Up to 1024-QAM |
Power
| Parameter | Specification |
|---|---|
| Operating Voltage | 3.3V DC (±5% tolerance) |
| Power Consumption | 6.6W (Max), Typical: 4.5W |
| Typical Current Draw | 1.36A @ 3.3V |
| Maximum Current Draw | 2.0A @ 3.3V |
Certifications
| Region | Certification |
|---|---|
| USA | FCC |
| EU Region | CE RED |
| Canada | IC |
Environmental Compliances
| Standard | Status |
|---|---|
| REACH | Compliant |
| RoHS | Compliant |
Key Features
WiFi 6 Technology
Supports 802.11ax with 1024-QAM and OFDMA for maximum spectral efficiency and throughput in dense environments.
Dual-Band Selectable
Switch between 2.4GHz and 5GHz bands based on application requirements. 160MHz channels available at 5GHz for up to 2.4Gbps.
2×2 MU-MIMO
2T2R MU-MIMO enables simultaneous data transmission to multiple clients, improving network efficiency.
MiniPCIe Form Factor
Standard 30 x 51 mm MiniPCIe module with 52-pin connector for easy system integration.
FIPS L2 Encryption
Industrial-grade QCN9074 supports FIPS L2 cryptographic protection for security-critical applications.
3rd Party Platform Support
Works with Intel x86 and ARM processors (NXP, Marvell) – not restricted to Qualcomm ecosystem.
Hardware Architecture

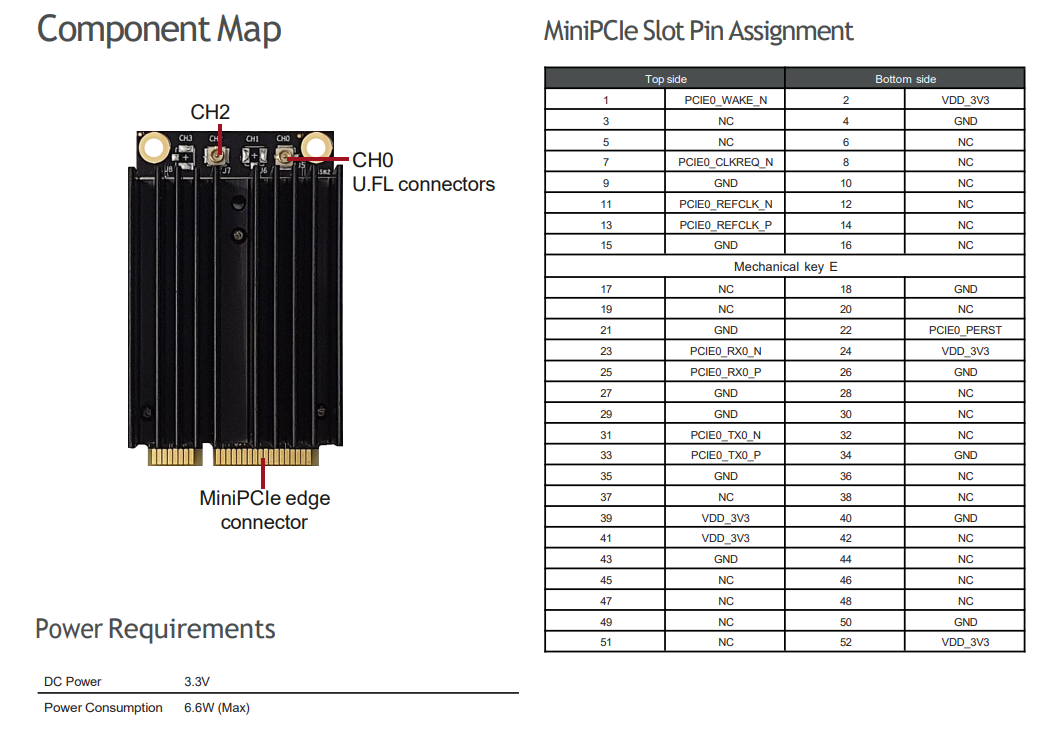

The WLE3002HX module features an integrated heat sink for thermal management, two U.FL RF connectors (CH0, CH2) for 2×2 MIMO operation, and a standard MiniPCIe edge connector.
Key Hardware Components
| Component | Description | Function |
|---|---|---|
| U.FL Connectors (CH0, CH2) | 2x U.FL RF connectors | Connect external antennas for 2×2 MIMO operation, enabling spatial diversity and improved signal reception/transmission |
| MiniPCIe Edge Connector | 52-pin MiniPCIe interface | Provides PCIe 3.0 x1 interface for high-speed data transfer between the module and host system |
| Heat Sink | Integrated aluminum heat dissipation | Efficient thermal management for stable operation under high-performance conditions |
MiniPCIe Pin Assignment
The WLE3002HX module utilizes a standard MiniPCIe Type E connector with 52 pins, providing PCIe 3.0 interface, power delivery, and control signals.
Key Signal Definitions
| Signal Name | Description |
|---|---|
| PCIE0_WAKE_N | PCIe Wake signal (active low) – used for remote wake-up functionality from low-power states |
| PCIE0_CLKREQ_N | Clock Request signal (active low) – requests PCIe reference clock from the host |
| PCIE0_REFCK_N/P | Differential Reference Clock pair (100MHz) for PCIe synchronization |
| PCIE0_PERST | PCIe Peripheral Reset signal – initializes the module on power-up |
| PCIE0_RX0_N/P | Differential receive pair 0 – primary data input from host |
| PCIE0_TX0_N/P | Differential transmit pair 0 – primary data output to host |
| PCIE0_RX1_N/P | Differential receive pair 1 – secondary data input (not used in 1x mode) |
| PCIE0_TX1_N/P | Differential transmit pair 1 – secondary data output (not used in 1x mode) |
| VDD_3V3 | 3.3V power supply input |
| GND | Ground reference |
Full Pin Assignment Table
| Pin # | Top Side Signal | Pin # | Bottom Side Signal |
|---|---|---|---|
| 1 | PCIE0_WAKE_N | 2 | VDD_3V3 |
| 3 | NC | 4 | VDD_3V3 |
| 5 | GND | 6 | NC |
| 7 | PCIE0_CLKREQ_N | 8 | NC |
| 9 | GND | 10 | NC |
| 11 | PCIE0_REFCK_N | 12 | NC |
| 13 | PCIE0_REFCK_P | 14 | NC |
| 15 | GND | 16 | NC |
| 17 | NC | 18 | GND |
| 19 | NC | 20 | NC |
| 21 | GND | 22 | NC |
| 23 | PCIE0_RX0_N | 24 | NC |
| 25 | PCIE0_RX0_P | 26 | GND |
| 27 | GND | 28 | NC |
| 29 | GND | 30 | NC |
| 31 | PCIE0_TX0_N | 32 | NC |
| 33 | PCIE0_TX0_P | 34 | GND |
| 35 | GND | 36 | NC |
| 37 | NC | 38 | NC |
| 39 | GND | 40 | NC |
| 41 | NC | 42 | NC |
| 43 | GND | 44 | NC |
| 45 | NC | 46 | NC |
| 47 | NC | 48 | NC |
| 49 | NC | 50 | PCIE0_PERST |
| 51 | NC | 52 | VDD_3V3 |
Power Requirements
The WLE3002HX module is designed with efficient power management to optimize performance while maintaining low power consumption.
| Parameter | Specification |
|---|---|
| DC Input Voltage | 3.3V DC (±5% tolerance) |
| Maximum Power Consumption | 6.6W (Typical: 4.5W) |
| Typical Current Draw | 1.36A @ 3.3V |
| Maximum Current Draw | 2.0A @ 3.3V |
Power Management Features
- Efficient 3.3V Design: Optimized power architecture reduces energy consumption compared to reference designs
- Dynamic Power Scaling: Adjusts power consumption based on operational load and bandwidth requirements
- Low-Power States: Supports PCIe L1/L2 low-power states for idle operation
- Wake-on-WLAN: Enables remote wake-up functionality for power-sensitive applications
Target Applications
| Application Category | Key Benefits |
|---|---|
| Enterprise Networking | High throughput (up to 2.4Gbps), 160MHz bandwidth, and 2×2 MU-MIMO support for demanding enterprise environments |
| Industrial IoT | Industrial-grade temperature range (QCN9074 variant), reliable connectivity for factory automation and sensor networks |
| Cybersecurity Appliances | FIPS L2 cryptographic support (QCN9074), secure wireless connectivity for security appliances |
| Transportation | Dual-band flexibility for in-vehicle infotainment and telematics applications |
| SMB Networking | Cost-effective WiFi 6 solution for small and medium business access points and routers |
Frequently Asked Questions
Q: What chipsets are available for WLE3002HX?
WLE3002HX supports Qualcomm QCN6024 (commercial), QCN9024 (commercial), and QCN9074 (industrial grade).
Q: Does WLE3002HX support both 2.4GHz and 5GHz bands?
Yes, it is dual-band selectable. You can choose to work on 2.4GHz or 5GHz according to your application.
Q: What is the maximum WiFi speed of WLE3002HX?
It supports up to 2402Mbps on 5GHz with 160MHz channel width, and up to 573Mbps on 2.4GHz.
Q: Does this module support AP and STA mode at the same time?
Yes, WLE3002HX supports both AP and STA mode, which allows backhaul and client connectivity simultaneously.
Q: What is the power supply and power consumption?
Operating voltage is 3.3V DC. Maximum power consumption is 6.6W, typical current is 1.36A @ 3.3V.
Q: What interface does WLE3002HX use?
It uses a standard MiniPCIe 52-pin slot with PCIe 3.0 x1 interface and 2x U.FL antenna connectors.
Q: Does QCN9074 version support FIPS L2 encryption?
Yes, FIPS L2 cryptographic protection is only available on the QCN9074 industrial-grade version.
Q: What certifications does WLE3002HX have?
It has FCC, CE RED, IC certifications, and complies with RoHS and REACH environmental standards.
