high-performance, industrial-grade dual-band selectable WiFi 5 (802.11ac) module WLE600VX-I
QCA9892 WiFi 5 (802.11ac Wave 1) 2×2 MIMO Dual Band Selectable Module
Qualcomm Atheros QCA9892 ‘Peregrine’ series
Standard size MiniPCIe with PCIe 1.1 Interface
Derived from XB140 reference design
Supports up to 256-QAM
-40°C to 85°C operating temperature

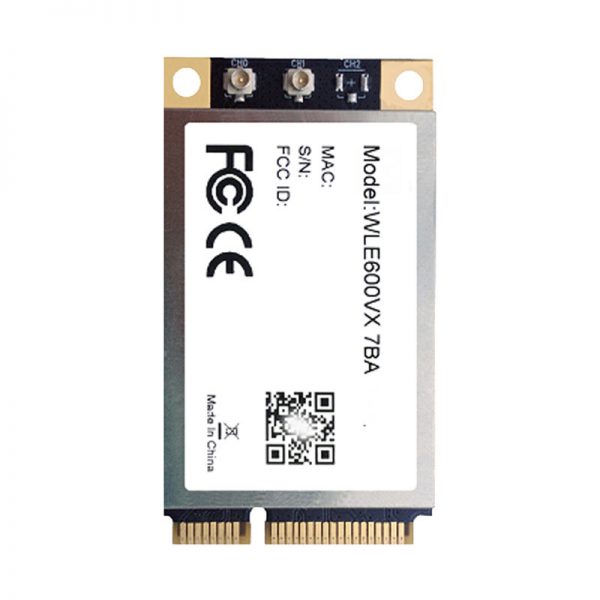

WLE600VX-I – Industrial Dual-Band WiFi 5 802.11ac Module
Product Overview
High-performance, industrial-grade dual-band selectable WiFi 5 (802.11ac) module powered by Qualcomm QCA9892 Peregrine chipset. Supports 2.4GHz and 5GHz concurrent-free operation with 2×2 MIMO, delivering up to 867Mbps on 5GHz and 600Mbps on 2.4GHz. Engineered for enterprise, industrial IoT, transportation, and cybersecurity applications with -40°C to +85°C operating temperature range.
Key Overview
Target Users：Enterprise wireless AP manufacturers, Industrial IoT system integrators, Transportation wireless solution providers, Cybersecurity appliance builders
Core Strengths：Qualcomm QCA9892 stable performance, dual-band selectable operation, ultra-low 3.5W power consumption, single 3.3V supply design, ath10k/QSDK driver support
Typical Applications：Enterprise APs, Industrial IoT gateways, Vehicle wireless systems, Outdoor wireless bridges, Public safety communications
Technical Specifications
WLE600VX-I delivers enterprise-grade wireless performance with industrial reliability. The module integrates Qualcomm QCA9892 chipset with optimized power design for demanding environments.
| Parameter | Specification |
|---|---|
| Chipset | Qualcomm QCA9892 (Peregrine Series) |
| WiFi Standard | 2.4GHz: 802.11b/g/n | 5GHz: 802.11a/n/ac |
| MIMO Configuration | 2×2 Spatial Streams |
| 2.4GHz Speed | Up to 600Mbps (256 QAM) |
| 5GHz Speed | Up to 867Mbps (256 QAM) |
| 2.4GHz Tx Power | 20dBm per chain (Typical) |
| 5GHz Tx Power | 21dBm per chain (Typical) |
| Frequency Range | 2.412 ~ 2.472GHz | 5.150 ~ 5.825GHz (4.9GHz public safety band optional) |
| Channel Bandwidth | 2.4GHz: 20/40MHz | 5GHz: 20/40/80MHz |
| Antenna Connector | 2× U.FL Connectors |
| Host Interface | PCIe 1.1 |
| Module Dimension | 30 × 51mm (Standard miniPCIe form factor) |
| Max Power Consumption | 3.5W (Full Load, Typical) |
| Operating Voltage | Single 3.3V DC (vs. standard QCA9892 reference design using dual voltage) |
| Operating Temperature | -40°C to +85°C (Industrial grade) |
| Storage Temperature | -40°C to +85°C |
| Operating Modes | AP + STA concurrent mode (wireless backhaul supported) |
| Driver Support | ath10k (open-source), Qualcomm QSDK |
| Platform Compatibility | x86, NXP ARM, Marvell ARM |
| FCC Certification | FCC (USA) |
| CE Certification | CE RED (EU) |
| IC Certification | IC (Canada) |
| Environmental Compliance | RoHS (EU), REACH (USA) |
Key Features
Qualcomm QCA9892 Chipset
Peregrine series delivers stable, high-speed wireless transmission with proven enterprise track record. Supports 256 QAM modulation for enhanced throughput.
Dual-Band Selectable Operation
2.4GHz (802.11b/g/n) and 5GHz (802.11a/n/ac) operate in concurrent-free mode. Optional 4.9GHz public safety band support for critical communications.
2×2 MIMO with High Tx Power
21dBm per chain at 5GHz and 20dBm per chain at 2.4GHz provide extended coverage for enterprise and industrial deployments.
Ultra-Low Power Design
3.5W maximum power consumption with single 3.3V supply. Simplified power rail design reduces system complexity and heat dissipation.
Industrial Temperature Range
-40°C to +85°C operating temperature ensures stable performance in harsh environments, outdoor installations, and vehicle applications.
Flexible Driver Support
Compatible with ath10k open-source driver and Qualcomm QSDK. Works with x86, NXP, and Marvell ARM platforms for broad system integration.
Model Variants
| Model | Band Support | MIMO | Max Speed | Temp Range |
|---|---|---|---|---|
| WLE600VX-I | Dual-Band (2.4/5GHz + 4.9GHz optional) | 2×2 | 867Mbps (5GHz) / 600Mbps (2.4GHz) | -40°C to +85°C |
Target Applications
- Enterprise Wireless Access Points (APs)
- Industrial IoT Gateways and Remote Monitoring Systems
- Vehicle and Transportation Wireless Systems
- Cybersecurity and Network Security Appliances
- Small and Medium Business (SMB) Network Devices
- Outdoor and Industrial-grade Wireless Bridges
- Public Safety and Critical Communications (4.9GHz optional)
Comparison Table
| Parameter | WLE600VX-I | Typical Competitor (QCA9882) |
|---|---|---|
| Chipset | QCA9892 (Peregrine) | QCA9882 |
| WiFi Standard | 802.11ac Wave 1 | 802.11ac Wave 1 |
| MIMO | 2×2 | 2×2 |
| Max Speed | 867Mbps (5GHz) / 600Mbps (2.4GHz) | 867Mbps (5GHz) / 600Mbps (2.4GHz) |
| 5GHz Tx Power | 21dBm per chain | 20dBm per chain (Typical) |
| Power Supply | Single 3.3V | Dual voltage (3.3V + others) |
| Max Power Consumption | 3.5W | 4W+ |
| Operating Temp | -40°C to +85°C | -20°C to +70°C (Commercial grade) |
| Form Factor | 30 × 51mm miniPCIe | 30 × 51mm miniPCIe |
Ordering Information
| Model | Description | Temperature | Ordering Code |
|---|---|---|---|
| WLE600VX-I | 2×2 MIMO, 802.11ac, Dual-Band, miniPCIe, QCA9892 | -40°C to +85°C | WLE600VX-I |
Frequently Asked Questions
Q: What is the difference between WLE600VX-I and standard QCA9882 modules?
WLE600VX-I uses optimized power supply design with single 3.3V operation, reducing system complexity. It features higher transmit power (21dBm at 5GHz) and industrial temperature grade (-40°C to +85°C) compared to commercial-grade alternatives. The module also supports concurrent AP+STA operation for wireless backhaul applications.
Q: Does WLE600VX-I support mesh networking?
Yes, WLE600VX-I supports AP+STA concurrent mode, which enables wireless mesh networking functionality. The ath10k driver fully supports mesh point operation, and the module’s low power consumption makes it suitable for battery-powered mesh nodes.
Q: What platforms are compatible with WLE600VX-I?
WLE600VX-I is compatible with x86 (Intel/AMD), NXP ARM (Layerscape series), and Marvell ARM (Armada series) platforms. It works with standard ath10k Linux drivers and Qualcomm QSDK. The module has been tested with OpenWrt, LEDE, and mainstream embedded Linux distributions.
Q: Can WLE600VX-I operate in the 4.9GHz public safety band?
Yes, WLE600VX-I supports optional 4.9GHz public safety band (4.940 ~ 4.990GHz) in addition to standard 2.4GHz and 5GHz bands. This makes it suitable for first responder communications and other critical infrastructure applications.
Q: What antenna connectors does WLE600VX-I use?
WLE600VX-I is equipped with 2× U.FL antenna connectors. These compact Hirose connectors are industry standard for miniPCIe wireless modules. Users should select appropriate antennas based on their gain requirements and deployment environment.
