WiFi 7 (802.11be) 2×2 MU-MIMO 5+6GHz Dual Band Module with Diplexer QCN6274/9274 WLTE7002E56
- Qualcomm QCN6274 ‘Waikiki’ series for Commercial Grade
- Qualcomm QCN9274 ‘Waikiki’ series for Industrial Grade
- M.2 E Key Interface with PCIe 3.0
- The diplexer combines the 5GHz and 6GHz signals into one single dual-band antenna
- Based on WK01.7 reference design
- Supports up to 4096-QAM
- -20°C to 70°C operating temperature
WiFi 7 (802.11be) 2×2 MU-MIMO 5+6GHz Dual Band Module – WLTE7002E56
Product Overview
WLTE7002E56 is a high-performance Dual-Band 5GHz + 6GHz WiFi 7 (802.11be) module based on Qualcomm’s QCN6274/QCN9274 ‘Waikiki’ series, delivering exceptional throughput and spectral efficiency for enterprise, industrial, and SMB applications.
Key Overview
Target Users：Enterprise network integrators, industrial IoT solution providers, network security appliance manufacturers, transportation system developers, SMB networking equipment vendors.
Core Strengths：WiFi 7 (802.11be) with 4096-QAM, OFDMA, Multi-Link Operation (MLO), and preamble puncturing support. Dual 5GHz+6GHz bands with 2×2 MU-MIMO for simultaneous operation.
Typical Applications：Enterprise APs, Industrial IoT gateways, Network security appliances, Transportation systems, SMB networking equipment.
Technical Specifications
The WLTE7002E56 module features dual-band 5GHz+6GHz WiFi 7 connectivity with advanced features for high-performance wireless applications.
| Parameter | Specification |
|---|---|
| Chipset | Qualcomm QCN6274 (Commercial) / QCN9274 (Industrial) |
| WiFi Standard | IEEE 802.11a/n/ac/ax/be |
| MIMO Configuration | 2×2 MU-MIMO (2T2R) |
| Frequency Bands | 5GHz: 5.180~5.925GHz 6GHz: 5.945~7.125GHz |
| Channel Widths | 5GHz: 20/40/80/160/240MHz 6GHz: 20/40/80/160/320MHz |
| Max Throughput | 5GHz: 4324Mbps / 6GHz: 5765Mbps (Combined: ~10Gbps) |
| Transmit Power | Up to 18dBm per chain (Typical) |
| Interface | PCIe 3.0 x1 |
| Form Factor | M.2 2230 E Key |
| Antenna Connectors | 2x U.FL Connectors |
| DC Input Voltage | 3.3V DC (±5%) |
| Maximum Power Consumption | 8.7W (Max) |
| Typical Power (Idle) | 4.5W |
| Certifications | FCC, CE RED, IC, REACH, RoHS |

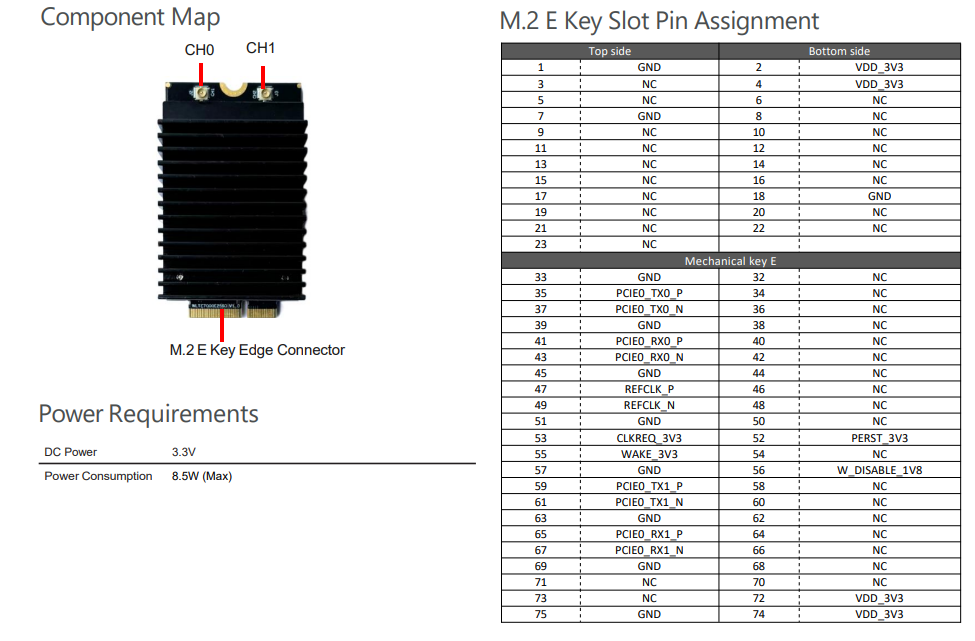

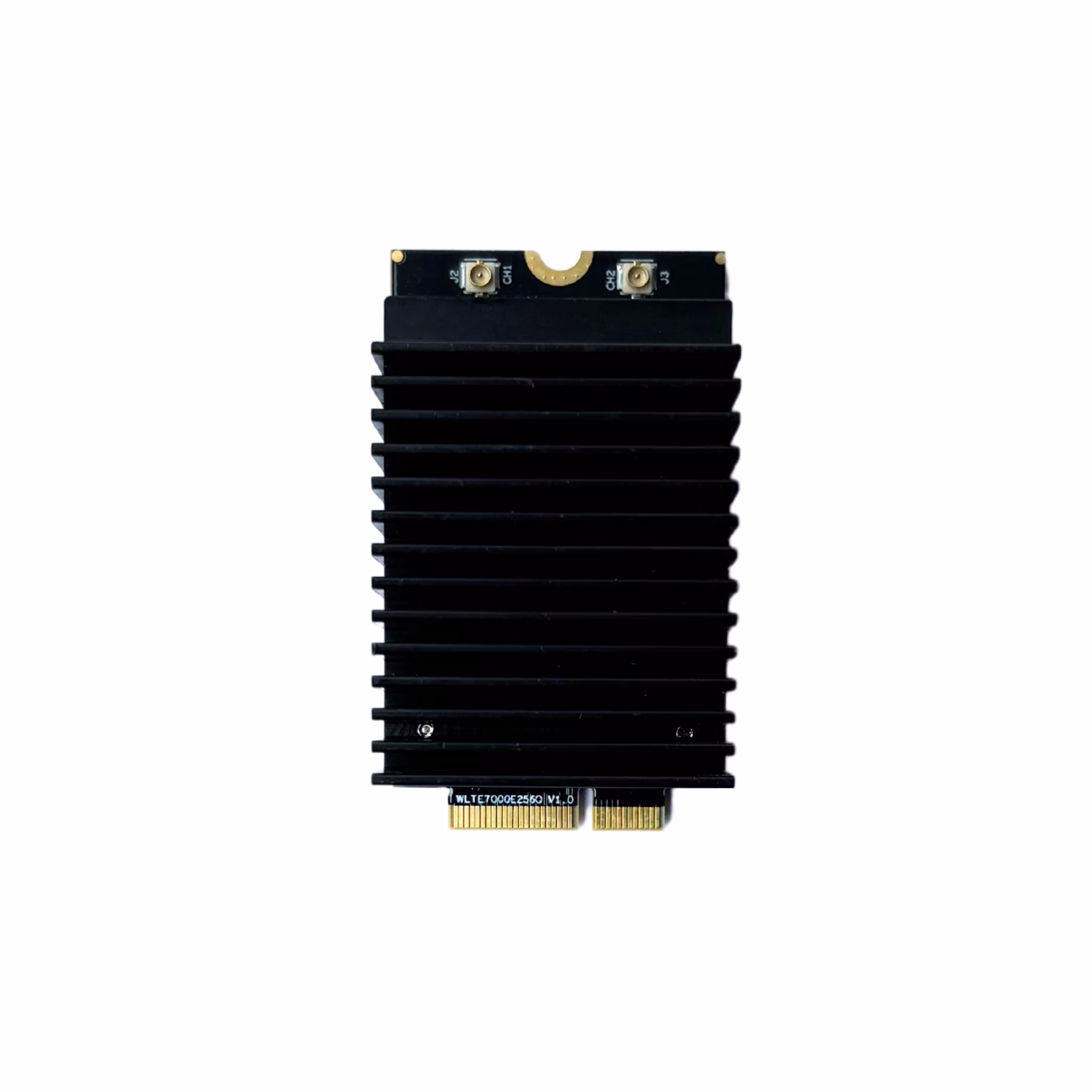

Component Map & Physical Layout
The WLTE7002E56 module features a compact M.2 2230 form factor with a well-organized component layout designed for optimal RF performance and thermal management:
- CH0 / CH1 U.FL Connectors: Dual RF antenna connectors supporting 2×2 MU-MIMO configuration for simultaneous 5GHz and 6GHz operation
- M.2 E Key Edge Connector: Standard M.2 E-Key interface providing PCIe 3.0 x1 lane for high-speed data transfer up to 8Gbps
- Integrated Heatsink: Passive cooling solution with optimized fin design ensuring stable operation under maximum TX/RX load conditions
M.2 E Key Slot Pin Assignment
The WLTE7002E56 utilizes the standard M.2 E-Key interface with PCIe 3.0 x1 signaling. Below is the complete pin assignment:
| Pin # | Top Side Signal | Pin # | Bottom Side Signal |
|---|---|---|---|
| 1 | GND | 2 | VDD_3V3 |
| 3 | NC | 4 | VDD_3V3 |
| 5 | GND | 6 | NC |
| 7 | NC | 8 | NC |
| 9 | NC | 10 | NC |
| 11 | NC | 12 | NC |
| 13 | NC | 14 | NC |
| 15 | NC | 16 | NC |
| 17 | NC | 18 | GND |
| 19 | NC | 20 | NC |
| 21 | NC | 22 | NC |
| 23 | NC | 24 | NC |
| Mechanical Key E (Pin 25-32) | |||
| 33 | GND | 32 | NC |
| 35 | PCIe0_TX0_P | 34 | NC |
| 37 | PCIe0_TX0_N | 36 | NC |
| 39 | GND | 38 | NC |
| 41 | PCIe0_RX0_P | 40 | NC |
| 43 | PCIe0_RX0_N | 42 | NC |
| 45 | GND | 44 | NC |
| 47 | REFCLK_P | 46 | NC |
| 49 | REFCLK_N | 48 | NC |
| 51 | GND | 50 | NC |
| 53 | CLKREQ_N | 52 | NC |
| 55 | WAKE_3V3 | 54 | PERST_3V3 |
| 57 | CLKREO_3V3 | 56 | NC |
| 59 | GND | 58 | W_DISABLE_1V8 |
| 61 | PCIe0_TX1_P | 60 | NC |
| 63 | PCIe0_TX1_N | 62 | NC |
| 65 | PCIe0_RX1_P | 64 | NC |
| 67 | PCIe0_RX1_N | 66 | NC |
| 69 | GND | 68 | NC |
| 71 | NC | 70 | NC |
| 73 | GND | 72 | VDD_3V3 |
| 75 | GND | 74 | VDD_3V3 |
Pin Signal Definitions
| Signal Name | Description & Function |
|---|---|
| VDD_3V3 | 3.3V Power Supply Input – Primary power rail for the module |
| GND | Ground Reference – Signal and power ground connections |
| PCIe0_TX0_P/N | PCIe Lane 0 Transmit Differential Pair – High-speed data transmission |
| PCIe0_RX0_P/N | PCIe Lane 0 Receive Differential Pair – High-speed data reception |
| PCIe0_TX1_P/N | PCIe Lane 1 Transmit Differential Pair – Secondary TX lane |
| PCIe0_RX1_P/N | PCIe Lane 1 Receive Differential Pair – Secondary RX lane |
| REFCLK_P/N | Reference Clock Input (100MHz) – PCIe clock reference |
| PERST_3V3 | PCIe Reset – Active low reset signal for PCIe interface |
| CLKREQ_N | Clock Request – Power management clock request signal |
| WAKE_3V3 | Wake Signal – Wake-on-WLAN indicator signal |
| W_DISABLE_1V8 | WiFi Disable – Active high signal to disable radio (1.8V logic) |
| NC | Not Connected – Reserved pins, do not connect |
Key Features
Dual-Band 5GHz+6GHz Operation
Simultaneous operation on both 5GHz and 6GHz bands provides increased capacity and reduced interference, ideal for high-density environments.
WiFi 7 Technology
Supports 4096-QAM, OFDMA, Multi-Link Operation (MLO), and preamble puncturing for exceptional throughput and spectral efficiency.
2×2 MU-MIMO
Enables simultaneous data streams to multiple clients, improving network efficiency and overall throughput in multi-user scenarios.
Multi-Link Operation (MLO)
Reduces latency and aggregates throughput by utilizing multiple radio links simultaneously, as detailed in Compex MLO integration.
AP + STA Concurrent Mode
Supports simultaneous AP and STA modes, enabling backhaul connectivity while providing client access in a single device.
Industrial-Grade Options
QCN9274 variant offers extended temperature range and FIPS L2 cryptographic security certification for demanding industrial applications.
Wide Platform Support
Compatible with Qualcomm ecosystem as well as 3rd party platforms including Intel x86, NXP, and Marvell ARM processors.
Extended Signal Coverage
Built on a 3.3V design ensuring wide signal coverage, suitable for applications requiring broad wireless reach.
Model Variants
| Model | Description |
|---|---|
| WLTE7002E56 (QCN6274) | Commercial-grade WiFi 7 module with 5GHz+6GHz dual-band, 2×2 MU-MIMO, PCIe 3.0 x1, M.2 2230 form factor |
| WLTE7002E56 (QCN9274) | Industrial-grade variant with extended temperature range and FIPS L2 security certification |
Target Applications
- Enterprise Wireless Access Points: Supporting up to 10Gbps combined throughput with 2×2 MU-MIMO for high-density client environments
- Industrial IoT Gateways: Industrial-grade QCN9274 variant available with extended temperature range and FIPS L2 security certification
- Network Security Appliances: Multi-Link Operation (MLO) support for reduced latency and aggregated throughput
- Transportation Systems: Wide signal coverage ideal for in-vehicle and public transit connectivity solutions
- SMB Networking Equipment: Cost-effective dual-band solution with advanced WiFi 7 features for small to medium business deployments
Comparison Table
| Parameter | WLTE7002E56 (5+6GHz) | WLTE7002E55 (5+5GHz) | WLTE7002E26 (2.4+6GHz) |
|---|---|---|---|
| Frequency Bands | 5GHz + 6GHz | 5GHz Low + 5GHz High | 2.4GHz + 6GHz |
| Chipset | QCN6274/QCN9274 | QCN6274/QCN9274 | QCN6224/QCN6274/QCN9274 |
| MIMO Configuration | 2×2 MU-MIMO | 2×2 MU-MIMO | 2×2 MU-MIMO |
| Max Throughput | ~10Gbps | ~8.6Gbps | ~7.5Gbps |
| Interface | PCIe 3.0 x1 | PCIe 3.0 x1 | PCIe 3.0 x1 |
| Form Factor | M.2 2230 E Key | M.2 2230 E Key | M.2 2230 E Key |
Ordering Information
| Model | Description | Temperature | Ordering Code |
|---|---|---|---|
| WLTE7002E56 | 5GHz+6GHz WiFi 7 Module, QCN6274, 2×2 MU-MIMO, M.2 2230 | 0°C to +70°C | WLTE7002E56-XX |
| WLTE7002E56-I | 5GHz+6GHz WiFi 7 Module, QCN9274, 2×2 MU-MIMO, M.2 2230, FIPS L2 | -40°C to +85°C | WLTE7002E56-I-XX |
Frequently Asked Questions
Q: What is WLTE7002E56?
WLTE7002E56 is a Dual-Band 5GHz + 6GHz WiFi 7 (802.11be) module with 2×2 MU-MIMO, based on Qualcomm QCN6274 / QCN9274, supporting M.2 2230 & PCIe 3.0.
Q: What chipset does WLTE7002E56 use?
Commercial: Qualcomm QCN6274
Industrial: Qualcomm QCN9274
Q: What frequency bands does WLTE7002E56 support?
5GHz (5.180~5.925GHz) + 6GHz (5.945~7.125GHz) dual-band.
Q: What is the MIMO configuration?
2T2R (2×2) MU-MIMO for both 5GHz and 6GHz bands.
Q: What is the maximum throughput?
5GHz: 4324Mbps
6GHz: 5765Mbps
Combined up to ~10Gbps.
Q: What is the transmit power per chain?
Up to 18dBm per chain for both 5GHz and 6GHz.
Q: Does it support concurrent AP + STA mode?
Yes, it supports AP and STA mode simultaneously for backhaul and client access.
Q: What WiFi 7 features are supported?
4096-QAM, OFDMA, Multi-Link Operation (MLO), Preamble Puncturing.
Q: What is the power supply and consumption?
Input: 3.3V DC
Max power: 8.7W
Idle: 4.5W
Q: What form factor and interface?
M.2 2230 E Key, PCIe 3.0 x1, 2× U.FL antenna connectors.
Q: Does QCN9274 support FIPS L2 encryption?
Yes, FIPS L2 cryptographic security is supported on industrial-grade QCN9274.
Q: What certifications does WLTE7002E56 have?
FCC, CE RED, IC, REACH, RoHS compliant.
Q: What are the main applications?
Enterprise AP, Industrial IoT, Network Security, Transportation, SMB Networking.
