WiFi 7 (802.11be) 4×4 MU-MIMO 2.4GHz Single Band Module QCN6274/QCN9274 WLTE7000E2
- Qualcomm QCN6274 ‘Waikiki’ series for Commercial Grade
- Qualcomm QCN9274 ‘Waikiki’ series for Industrial Grade
- M.2 E Key Interface with PCIe 3.0
- Based on WK02.2 reference design
- Supports up to 4096-QAM
- -20°C to 70°C operating temperature
WiFi 7 (802.11be) 4×4 MU-MIMO 2.4GHz Single Band Module – WLTE7000E2
Product Overview
WLTE7000E2 is a high-performance single-band 2.4GHz WiFi 7 (802.11be) module based on Qualcomm QCN6274/QCN9274, featuring 4×4 MU-MIMO for exceptional throughput and wide signal coverage in enterprise and industrial applications.
Key Overview
Target Users：Enterprise network integrators, industrial IoT solution providers, network security appliance manufacturers, transportation system developers, SMB networking equipment vendors.
Core Strengths：WiFi 7 (802.11be) with 4096-QAM, OFDMA, Multi-Link Operation (MLO), and preamble puncturing support. 4×4 MU-MIMO architecture for extended signal coverage and multi-user capacity.
Typical Applications：Enterprise APs, Industrial IoT gateways, Transportation systems, Smart home hubs, SMB networking equipment.
Technical Specifications
The WLTE7000E2 module features 2.4GHz single-band WiFi 7 connectivity with 4×4 MU-MIMO for high-performance wireless applications.
| Parameter | Specification |
|---|---|
| Chipset | Qualcomm QCN6274 (Commercial) / QCN9274 (Industrial) |
| WiFi Standard | IEEE 802.11b/g/n/ax/be |
| MIMO Configuration | 4×4 MU-MIMO (4T4R) |
| Frequency Bands | 2.4GHz: 2.412~2.472GHz |
| Channel Widths | 20/40MHz |
| Max Throughput | 1.376Gbps (1376Mbps) |
| Transmit Power | Up to 20dBm per chain (Typical) |
| Interface | PCIe 3.0 x1 |
| Form Factor | M.2 E Key |
| Antenna Connectors | 4x U.FL Connectors |
| DC Input Voltage | 3.3V DC (±5%) |
| Maximum Power Consumption | 8W (Max) |
| Operating Temperature | QCN6274: 0°C to +70°C / QCN9274: -40°C to +85°C |
| Certifications | FCC, CE RED, IC, REACH, RoHS |

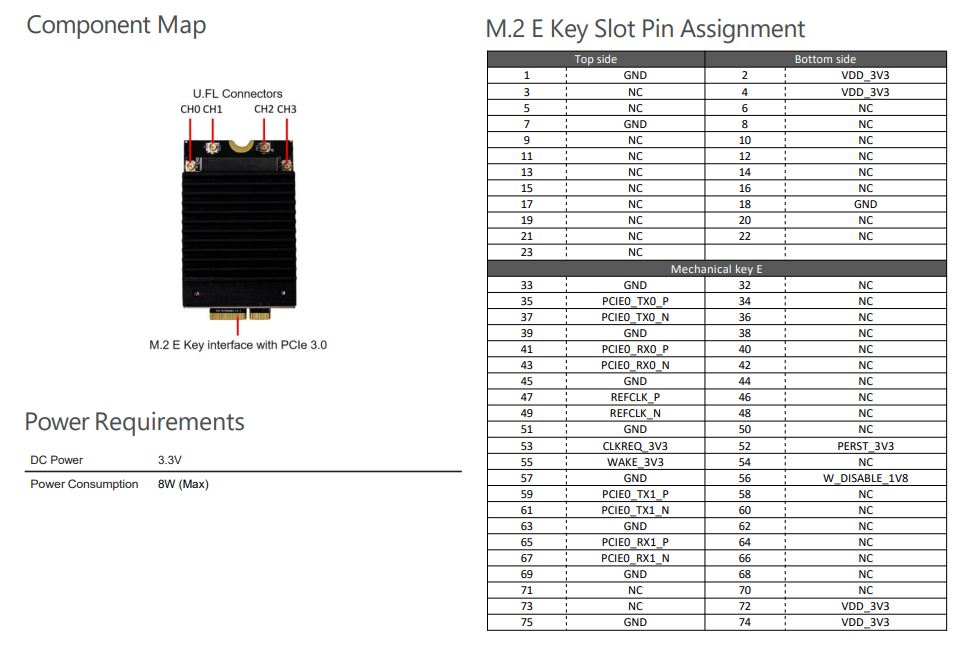

Component Layout
- CH0 / CH1 / CH2 / CH3 U.FL Connectors: Four RF antenna connectors supporting 4×4 MU-MIMO configuration for 2.4GHz band
- M.2 E Key Edge Connector: Standard M.2 E-Key interface providing PCIe 3.0 x1 lane for high-speed data transfer
- Integrated Heatsink: Passive cooling solution ensuring stable operation under maximum TX/RX load conditions
Key Features
4×4 MU-MIMO Architecture
Four spatial streams enabling simultaneous data transmission to multiple devices, improving network capacity and efficiency in high-density environments.
4096-QAM Modulation
Higher data density per symbol compared to 1024-QAM, enabling faster throughput rates for bandwidth-intensive applications.
OFDMA Technology
Allows multiple users to share the same channel simultaneously, improving network efficiency in high-density deployments.
Multi-Link Operation (MLO)
Enables simultaneous transmission across multiple frequency bands, reducing latency and aggregating throughput.
Preamble Puncturing
Improves spectral efficiency by allowing transmission in non-contiguous spectrum segments, avoiding legacy user interference.
AP + STA Concurrent Mode
Supports simultaneous AP and STA modes for wireless backhaul while providing client access in a single device.
Model Variants
| Model | Description |
|---|---|
| WLTE7000E2 (QCN6274) | Commercial-grade 2.4GHz WiFi 7 module, 4×4 MU-MIMO, M.2 E Key, operating temp: 0°C to +70°C |
| WLTE7000E2 (QCN9274) | Industrial-grade variant with extended temperature range (-40°C to +85°C) and FIPS L2 security certification |
Target Applications
- Enterprise Wireless Access Points: 4×4 MU-MIMO supports high-density client environments with improved coverage and capacity.
- Industrial IoT Gateways: Industrial-grade QCN9274 variant with FIPS L2 security for secure industrial deployments.
- Transportation Systems: 2.4GHz band provides better penetration for in-vehicle and public transit connectivity.
- Smart Home Hubs: Wide coverage and multi-device support ideal for smart home automation systems.
- SMB Networking Equipment: Cost-effective single-band solution with advanced WiFi 7 features for small businesses.
Comparison Table
| Parameter | WLTE7000E2 (2.4GHz) | WLTE7002E26 (2.4+6GHz) | WLTE7002E56 (5+6GHz) |
|---|---|---|---|
| Frequency Bands | 2.4GHz Single | 2.4GHz + 6GHz | 5GHz + 6GHz |
| Chipset | QCN6274/QCN9274 | QCN6274/QCN6274/QCN9274 | QCN6274/QCN9274 |
| MIMO Configuration | 4×4 MU-MIMO | 2×2 MU-MIMO | 2×2 MU-MIMO |
| Max Throughput | 1.376Gbps | ~7.5Gbps | ~10Gbps |
| Interface | M.2 E Key | M.2 2230 E Key | M.2 2230 E Key |
Ordering Information
| Model | Description | Temperature | Ordering Code |
|---|---|---|---|
| WLTE7000E2 | 2.4GHz WiFi 7 Module, QCN6274, 4×4 MU-MIMO, M.2 E Key | 0°C to +70°C | WLTE7000E2-XX |
| WLTE7000E2-I | 2.4GHz WiFi 7 Module, QCN9274, 4×4 MU-MIMO, M.2 E Key, FIPS L2 | -40°C to +85°C | WLTE7000E2-I-XX |
Frequently Asked Questions
What is WLTE7000E2?
WLTE7000E2 is a Single-Band 2.4GHz WiFi 7 (802.11be) module with 4×4 MU-MIMO, based on Qualcomm QCN6274/QCN9274, supporting up to 1376Mbps throughput.
What chipset does WLTE7000E2 use?
Commercial: Qualcomm QCN6274
Industrial: Qualcomm QCN9274
What frequency band does WLTE7000E2 support?
Single-band 2.4GHz (2.412~2.472GHz).
What is the MIMO configuration?
4T4R (4×4) MU-MIMO with 4 spatial streams.
What is the maximum throughput?
Up to 1376Mbps (1.376Gbps).
What is the transmit power per chain?
Up to 20dBm per chain.
Does it support AP + STA concurrent mode?
Yes, it supports AP and STA mode at the same time for backhaul and client access.
What WiFi 7 features are supported?
4096-QAM, OFDMA, Multi-Link Operation (MLO), Preamble Puncturing.
What is the power supply and consumption?
Input: 3.3V DC
Max power consumption: 8W
What interface and antenna connectors?
M.2 E Key, PCIe 3.0 x1, 4× U.FL antenna connectors.
Does QCN9274 support FIPS L2 encryption?
Yes, FIPS L2 cryptographic security is supported on industrial-grade QCN9274.
What are the main applications?
Enterprise AP, Industrial IoT, Transportation, Smart Home, SMB Networking.
