WiFi 7 (802.11be) 2×2 MU-MIMO 2.4+5GHz Dual Band Module with Diplexer QCN6224/QCN6274/QCN9274 WLTE7002E25
Qualcomm QCN6224/QCN6274 ‘Waikiki’ series for Commercial Grade Qualcomm QCN9274 ‘Waikiki’ series for Industrial Grade M.2 E Key Interface with PCIe 3.0 The diplexer combines the 2.4GHz and 5GHz signals into one single dual-band antenna Based on WK03.2 reference design Supports up to 4096-QAM -20°C to 70°C operating temperature
WiFi 7 (802.11be) Wireless Module WLTE7002E25
Product Overview
WLTE7002E25 is a Dual-Band Concurrent 2.4+5GHz Wi-Fi 7 (802.11be) M.2 E-key module based on Qualcomm QCN6224/QCN6274/QCN9274, delivering up to 4324 Mbps throughput with 2×2 MU-MIMO for enterprise and industrial applications.
Key Overview
Target Users：Enterprise network integrators, industrial IoT developers, transportation system manufacturers, cybersecurity appliance vendors, SMB network solution providers
Core Strengths：2.4+5GHz dual-band concurrent operation, 4096-QAM support, Multi-Link Operation (MLO), FIPS L2 security on QCN9274, cost-efficient diplexer design
Typical Applications：Enterprise/SMB access points, industrial IoT gateways, transportation systems, wireless bridges, cybersecurity devices
Technical Specifications
Comprehensive technical specifications for WLTE7002E25 WiFi 7 module.
| Parameter | Specification |
|---|---|
| Chipset | Qualcomm QCN6224 / QCN6274 / QCN9274 |
| WiFi Standard | IEEE 802.11a/b/g/n/ac/ax/be |
| MIMO Configuration | 2×2 (2T2R) MU-MIMO |
| Frequency Bands | 2.412~2.472 GHz, 5.15~5.825 GHz |
| Channel Bandwidths | 2.4GHz: 20/40 MHz; 5GHz: 20/40/80/160/240 MHz |
| Peak PHY Rate | 2.4GHz: Up to 688 Mbps; 5GHz: Up to 4324 Mbps |
| Transmit Power | 2.4GHz: 20dBm per chain (Typical); 5GHz: 18dBm per chain (Typical) |
| Host Interface | M.2 E-Key, PCIe 3.0 x2 |
| Antenna Connectors | 2x U.FL connectors (2T2R) |
| Operating Voltage | 3.3V DC |
| Max Power Consumption | 8W |
| Certifications | FCC, CE RED, IC, RoHS, REACH |
Key Features
Dual-Band Concurrent Operation
Supports simultaneous 2.4GHz and 5GHz transmission, enabling concurrent backhaul and client connectivity with up to 20dBm/18dBm transmit power per chain.
WiFi 7 Technologies
Features 4096-QAM, OFDMA, Multi-Link Operation (MLO), and Preamble Puncturing for improved spectral efficiency and reduced latency.
Cost-Efficient Diplexer Design
Integrated diplexer reduces the need for multiple antennas, lowering overall BOM cost while maintaining dual-band performance.
FIPS L2 Security
Industrial-grade QCN9274 variant supports FIPS L2 cryptographic protection for secure wireless communication in sensitive environments.
AP + STA Concurrent Mode
Enables simultaneous access point and station operation, ideal for wireless backhaul applications with client connectivity.
Multi-Platform Support
Works seamlessly with Qualcomm ecosystem and 3rd party platforms including Intel x86, NXP, and Marvell ARM processors.
Hardware Interface & Pinout

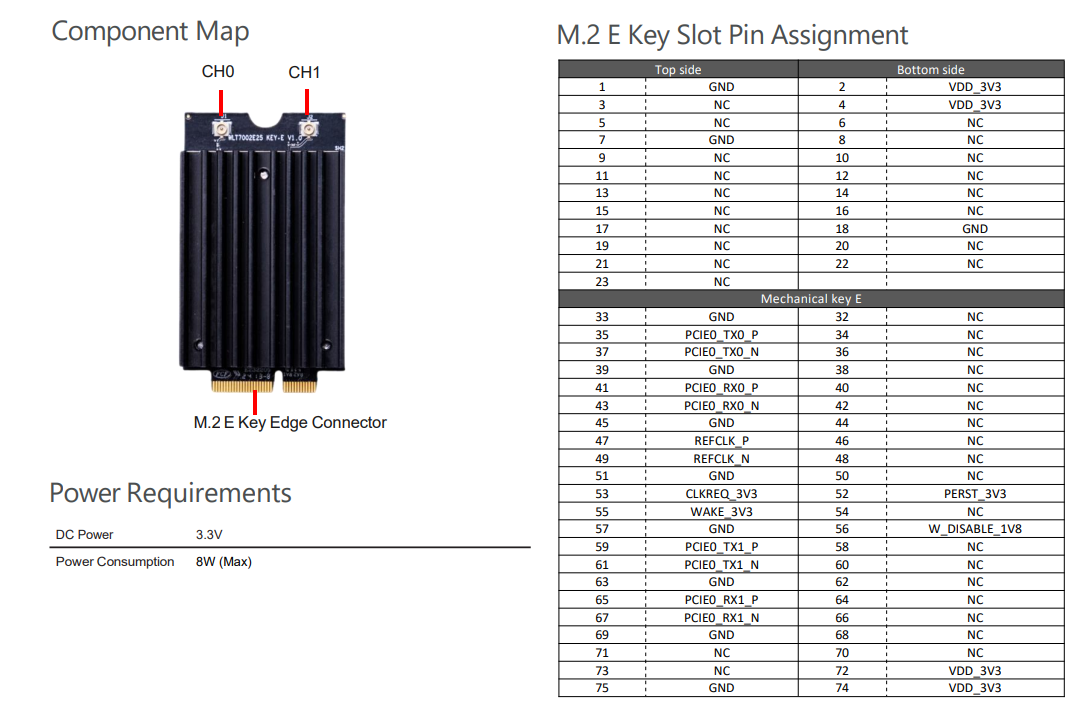

Component Map & M.2 E-Key Pin Assignment
Key Hardware Features
- 2x U.FL antenna connectors (CH0/CH1) for 2T2R dual-band concurrent operation
- Standard M.2 E-Key interface with PCIe 3.0 x2 support
- Onboard heatsink for stable high-load concurrent transmission
- Single 3.3V DC power supply with max 8W power consumption
Pinout Highlights
- PCIe 3.0 x2 differential lanes (TX0/1, RX0/1) for high-speed data transfer
- REFCLK_P/N reference clock for PCIe link stability
- Multiple VDD_3V3 and GND pins for reliable power delivery
- Wake, reset and RF control signals (WAKE_3V3, PERST_3V3, W_DISABLE_1V8)
Target Applications
- Enterprise & SMB Dual-Band Access Points: Concurrent 2.4+5GHz operation supports legacy and modern clients simultaneously, ideal for office and retail environments.
- Industrial IoT & Embedded Gateways: Standard M.2 form factor and low power consumption make it perfect for industrial PCs, edge gateways and smart sensors.
- Transportation & Rail Systems: Industrial-grade QCN9274 variant provides reliable dual-band connectivity for on-board infotainment and trackside communication.
- Cost-Effective Wireless Bridges & CPE: Dual-band diplexer design reduces antenna costs while delivering stable concurrent backhaul and client connectivity.
- Cybersecurity & Network Appliances: FIPS-compliant QCN9274 supports secure wireless communication for sensitive network environments.
Frequently Asked Questions
Q: What is WLTE7002E25?
WLTE7002E25 is a Dual-Band Concurrent 2.4+5GHz WiFi 7 (802.11be) M.2 E-Key module based on Qualcomm QCN6224/QCN6274/QCN9274, with 2T2R MU-MIMO for enterprise & industrial applications.
Q: What chipsets are available for WLTE7002E25?
Commercial: Qualcomm QCN6224 / QCN6274
Industrial: Qualcomm QCN9274
Q: What frequency bands does WLTE7002E25 support?
2.4GHz + 5GHz dual-band concurrent operation.
Q: What is the MIMO configuration?
2T2R (2×2) MU-MIMO for both 2.4GHz and 5GHz bands.
Q: What is the maximum throughput?
2.4GHz: up to 688Mbps
5GHz: up to 4324Mbps
Q: What is the transmit power?
2.4GHz: 20dBm per chain
5GHz: 18dBm per chain
Q: Does it support AP + STA concurrent mode?
Yes, it supports simultaneous AP and STA mode for wireless backhaul and client access.
Q: What WiFi 7 features are supported?
4096-QAM, OFDMA, Multi-Link Operation (MLO), Preamble Puncturing.
Q: What is the power supply and power consumption?
Operating Voltage: 3.3V DC
Maximum Power Consumption: 8W
Q: What form factor and interface?
Form Factor: M.2 E-Key
Interface: PCIe 3.0 x2
Antenna: 2× U.FL connectors
Q: Does QCN9274 support FIPS L2 encryption?
Yes, FIPS L2 cryptographic security is supported exclusively on the industrial QCN9274 version.
Q: What certifications does WLTE7002E25 have?
FCC, CE RED, IC, RoHS, REACH compliant.
Q: What are the main applications?
Enterprise APs, Industrial IoT, Transportation Systems, Wireless Bridges, Cybersecurity Devices.
