WiFi 7 (802.11be) 2×2 MU-MIMO 2.4+6GHz Dual Band Module with Diplexer QCN6274 WLTE7002E26
- Qualcomm QCN6274 ‘Waikiki’ series for Commercial Grade
- Qualcomm QCN9274 ‘Waikiki’ series for Industrial Grade
- M.2 E Key Interface with PCIe 3.0
- The diplexer combines the 2.4GHz and 6GHz signals into one single dual-band antenna
- Based on WK03.2 reference design
- Supports up to 4096-QAM
- -20°C to 70°C operating temperature
WiFi 7 (802.11be) Wireless Module WLTE7000E2560
Product Overview
WLTE7000E2560 is a high-performance dual-band concurrent 2.4+5GHz WiFi 7 (802.11be) wireless module based on Qualcomm’s QCN6224/QCN6274/QCN9274 “Waikiki” series radio solution, delivering exceptional performance for enterprise, industrial, and cybersecurity applications.
Key Overview
Target Users：Enterprise network integrators, industrial IoT solution providers, cybersecurity device manufacturers, transportation system developers
Core Strengths：WiFi 7 (802.11be) with MLO support, 2×2 MU-MIMO, high-power transmit (20dBm/18dBm), integrated heatsink for stable operation, FIPS L2 cryptographic protection (QCN9274)
Typical Applications：Enterprise APs, industrial IoT gateways, railway communication systems, secure network appliances
Technical Specifications
The WLTE7000E2560 offers comprehensive wireless capabilities with support for both commercial and industrial-grade chipsets.
| Parameter | Specification |
|---|---|
| Chipset | Qualcomm QCN6224 / QCN6274 / QCN9274 (Industrial Grade) |
| WiFi Standard | IEEE 802.11a/b/g/n/ac/ax/be (WiFi 7) |
| Frequency Bands | 2.4GHz (2.412~2.472GHz) + 5GHz (5.150~5.850GHz) |
| MIMO Configuration | 2×2 (2T2R) MU-MIMO |
| Channel Bandwidth | 20/40MHz (2.4GHz); 20/40/80/160MHz (5GHz) |
| Throughput | 2.4GHz: up to 688Mbps; 5GHz: up to 2882Mbps (Typical) |
| Transmit Power | 2.4GHz: 20dBm per chain; 5GHz: 18dBm per chain (Max) |
| Form Factor | M.2 22x30mm with integrated aluminum heatsink |
| Interface | PCIe 3.0 (M.2 E-Key) |
| Antenna | 2× U.FL connectors (CH1/CH2) |
| Operating Voltage | 3.3V DC |
| Power Consumption | 8.3W (Max) |
| Certifications | FCC, CE RED, IC, RoHS, REACH |

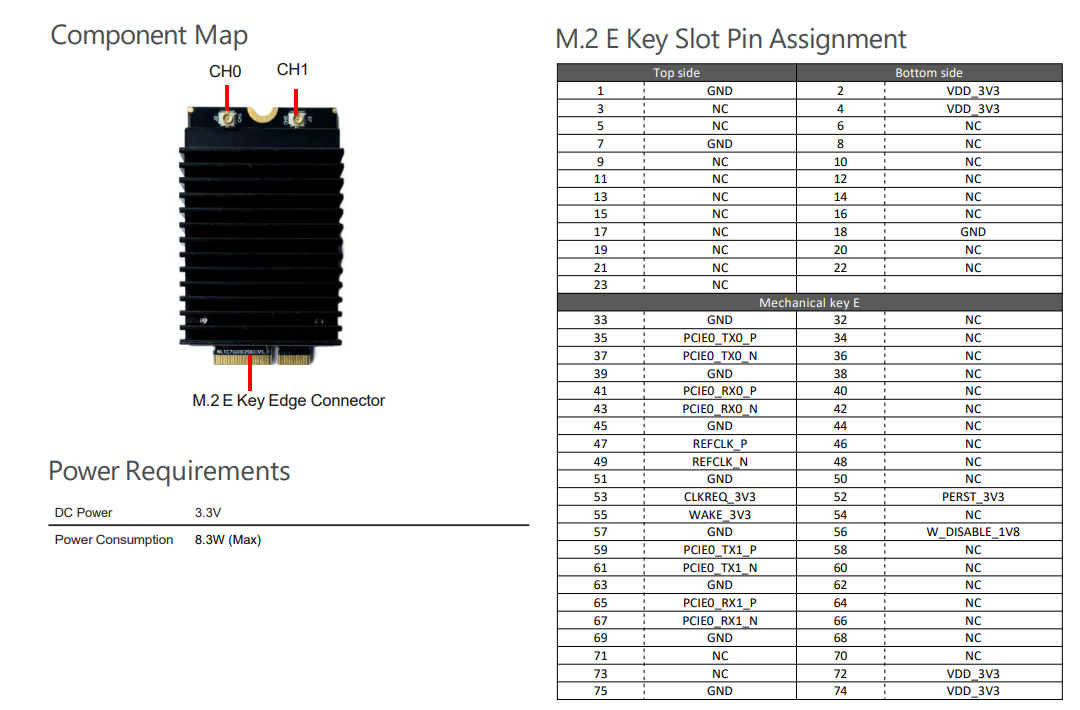

WLTE7000E2560 with high-efficiency heatsink design
Key Features
WiFi 7 (802.11be) Technology
Supports up to 5.8Gbps combined throughput with 4096-QAM modulation and OFDMA technology for improved spectral efficiency and reduced latency.
Multi-Link Operation (MLO)
Enables simultaneous data transmission across multiple frequency bands, aggregating throughput and providing redundancy for mission-critical applications.
High-Power Transmit
Delivers 20dBm per chain at 2.4GHz and 18dBm at 5GHz, ensuring extended coverage and reliable connectivity in demanding environments.
Integrated Heatsink
Robust aluminum heatsink design enables stable high-power operation, essential for continuous industrial deployments.
Dual-Band Concurrent
Simultaneous 2.4GHz and 5GHz operation supports mixed client environments while maintaining high throughput on both bands.
FIPS L2 Security
Industrial-grade QCN9274 variant includes FIPS L2 cryptographic protection for high-security government and enterprise applications.
Target Applications
- Enterprise Networks: High-performance AP/STA solutions for office environments requiring reliable, high-speed wireless connectivity
- Industrial IoT: Reliable wireless connectivity for industrial automation, IoT gateways, and smart factory applications
- Transportation Systems: Robust connectivity for railway, public transit, and vehicle-to-infrastructure communication
- Cybersecurity Devices: Secure wireless solutions with FIPS-compliant variants for network security appliances
- SMB Networks: Cost-effective high-performance wireless solutions for small-to-medium business environments
Frequently Asked Questions
Q: What is WLTE7000E2560?
WLTE7000E2560 is a high-performance dual-band concurrent 2.4+5GHz WiFi 7 (802.11be) wireless module based on Qualcomm QCN6224/QCN6274/QCN9274, with 2T2R MU-MIMO and M.2 E-Key form factor.
Q: What chipsets are available for WLTE7000E2560?
Commercial: Qualcomm QCN6224 / QCN6274
Industrial: Qualcomm QCN9274
Q: What frequency bands does WLTE7000E2560 support?
2.4GHz + 5GHz dual-band concurrent operation.
Q: What is the MIMO configuration?
2T2R (2×2) MU-MIMO for both 2.4GHz and 5GHz bands.
Q: What is the maximum throughput?
2.4GHz: up to 688Mbps
5GHz: up to 2882Mbps
Q: What is the transmit power?
2.4GHz: 20dBm per chain
5GHz: 18dBm per chain
Q: Does it support AP + STA concurrent mode?
Yes, it supports simultaneous AP and STA mode for wireless backhaul and client access.
Q: What WiFi 7 features are supported?
4096-QAM, OFDMA, Multi-Link Operation (MLO), Preamble Puncturing.
Q: What is the power supply and power consumption?
Operating Voltage: 3.3V DC
Maximum Power Consumption: 8.3W
Q: What form factor and interface?
Form Factor: M.2 22x30mm with heatsink
Interface: PCIe 3.0 (M.2 E-Key)
Antenna: 2× U.FL connectors
Q: Does QCN9274 support FIPS L2 encryption?
Yes, FIPS L2 cryptographic security is supported exclusively on the industrial QCN9274 version.
Q: What certifications does WLTE7000E2560 have?
FCC, CE RED, IC, RoHS, REACH compliant.
Q: What are the main applications?
Enterprise Networks, Industrial IoT, Transportation Systems, Cybersecurity Devices.
