Bridging the Last Mile: A 6 GHz Point-to-Point Deployment Walkthrough

Published by Zukaka  ·  Last updated August 22, 2026  ·  14 min read

Every rural connectivity dream ends the same way: somebody has to climb a tower, point a dish, and make a thin radio beam carry a whole community’s internet across several kilometres of empty countryside. This is that somebody’s playbook.

Getting fixed broadband to a farm, a remote school, or a mountain village rarely means laying fibre — it means one or more point-to-point wireless links stitching the far site back to the populated core. The 6 GHz band is a favourite for this work: clean, wide, and happily uncongested compared with the crowded lower frequencies.

But a wireless bridge is only as dependable as its setup discipline. This guide lays out the four phases that separate a link that runs for years from one that limps along at a fraction of its rated speed, then digs into the band, the hardware, and the failure modes most operators meet in the field.

Phase One — Evaluate Before You Lift a Tool

The single most decisive input to a wireless link is line of sight. You cannot fix a blocked path with more power. Two things decide whether the path works:

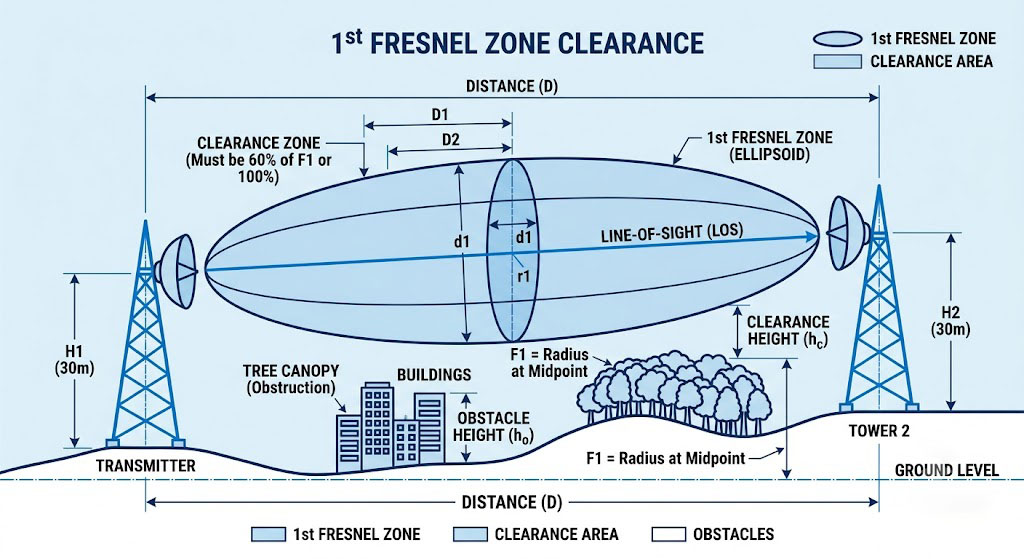

Get the geometry in front of you with the standard Fresnel relationship:

For a 6 GHz link over 10 km, that works out to roughly 11 m of clearance above the tallest obstacle — a real number worth writing down before you commit to mount points.

A few practical notes about reading the Fresnel clearance correctly. First, the zone widens with distance and narrows with frequency — which is why the same 10 km path at 2.4 GHz demands far more clearance than at 6 GHz, even though 6 GHz gives you cleaner spectrum. Second, “60% of the first Fresnel zone clear” is a working guideline, not a hard law: in flat, arid terrain you can often get away with less, while in wet, hilly country you should ask for more. Third, survey tools that render the terrain profile between two points are worth using, because eyeballing the path from one end almost always underestimates what sits in the middle of the zone. The clearance is the single place a mistake costs the most and is the easiest to verify before anyone climbs.

Phase Two — Do the Math Before You Climb

Your survey answers “can it work at all?” The link budget answers “will it work through a thunderstorm.” The goal is a fade margin of at least 20 dB — the cushion between your expected signal and the radio’s receiver sensitivity.

The two equations that do most of the work:

A worked example for a 10 km link at 6 GHz, with 30 dBm of transmit power and a 33 dBi dish at each end (about 1 dB of cable/jumper loss):

• Path loss = 92.45 + 20 + 15.56 ≈ 128 dB
• RSSI = 30 + 33 − 128 + 33 − 1 ≈ −33 dBm

Against a receiver sensitive to about −95 dBm, that is a sculpted 62 dB of margin — so comfortable that rain and seasonal foliage are unlikely to threaten it. If your numbers come out to a margin below 20 dB, fix the link on paper before the tower work starts.

It is worth writing the margin out line by line, because every term hides a real site decision:

Notice how much of the margin is bought by the two dishes. If each one is a few decibels of gain lower, or the cable run adds a couple more dB of loss, the margin erodes quickly from a comfortable 62 dB toward a marginal 20 dB. That is why it is a mistake to treat the antenna sticker and the jumper as afterthoughts: in a fixed P2P link they are the entire game, because distance and the operating point are fixed and only the hardware terms are under your control.

Phase Three — Build It to Survive Its Environment

A dish on a pole is a mechanical system holding a radio in the air for years. Three details decide its lifespan:

Water in a connector is responsible for more “mystery” rural-link failures than any other single cause. The fix is boring and non-negotiable: the connection is only as good as its waterproofing, and the waterproofing only lasts as long as the technician is disciplined about it. A fractional dB of connector loss on a dry day can become a dead link after a wet season if moisture gets inside, because the resulting reflection and corrosion quietly degrade the signal until one day it drops below threshold. Treat sealing as part of the RF link design, not as cleanup. The same discipline applies to the mounting and surge-protection work: every detail that keeps the beam still, dry, and electrically safe is a detail that keeps the community’s connection alive through weather it cannot schedule around.

Phase Four — Squeeze the Band, Then Monitor

With the link up, the work turns to configuration and vigilance:

• Choose channels deliberately. On a wide, clean band you have room to breathe — pick width and channel to protect against interference and radar events, not just for peak speed.
• Use the radio’s alignment tool. Nudging azimuth and elevation until the signal lands within a couple of dB of budget is minutes of work that prevents years of regret.
• Keep other radios apart. Near-end self-interference — one transmitter bleeding into another receiver on the same tower — is the most common reason a “strong” link underperforms. Keep at least ~3 m of vertical separation (and ~1.5 m horizontal) between stacked units.
• Test end-to-end, not just link-level. A picture-perfect RSSI can still hide routing or load problems. Push real throughput and multi-user traffic before you walk away.

Rain, foliage, and the physics of seasonal fading

The reason a rural bridge behaves differently in July than it does in January is that the atmosphere and the landscape between the two ends are themselves part of the path. Two attenuation mechanisms matter most at 6 GHz:

• Rain fade. Water droplets in the beam absorb and scatter energy. As a rule of thumb for the band and link lengths used here, budget roughly 0.3 dB per kilometre for heavy rain; the longer your link, the more this accumulates, which is one of many reasons very long links need more margin than short ones.
• Foliage loss. A single tree line in the Fresnel zone is not a “slight” cost — wet, leafy vegetation can remove 10–15 dB of signal that was not present when the tree was bare. Because both rain and foliage penalties hit at once in spring and early summer, a link that passes its winter survey with 20 dB of margin can fall below threshold by midsummer.

There is no way to remove these losses; there is only a way to budget for them. If your deployment region sees significant weather, the disciplined move is to size your fade margin against the worst reasonable season for the operating frequency — not the day you happened to climb the tower. The same logic applies inside the radio as well: a temperature-grade-lacking unit that throttles its output under an afternoon sun quietly erases margin exactly when you need it most. This connection between environmental budget and hardware choice is covered in more depth in the industrial module temperature guide.

Mast, power, and grounding: the unglamorous half

Invisible to the link budget but decisive to uptime are the civil and electrical details holding the bridge up. Three areas deserve the same rigour as the RF math:

• Mounting structure. The mast must be plumb and stiff enough that wind gusts do not wave the beam around. A dish that oscillates a fraction of a degree in a storm converts into signal fluctuation at the far end at exactly the moment people rely on it.
• Power integrity. PoE injectors and remote power must be sized for the cable run and the radio’s real consumption, with enough headroom to ride out sag. A link that reboots on every voltage dip is indistinguishable from a broken link to the community it serves.
• Grounding and surge protection. A rural mast is often the highest point for miles — precisely the thing lightning finds. Bond every conductor, ground at the tower base and at the radio, and route all cabling through surge protection. One good strike can otherwise take out an entire site board.

These are not glamorous topics, but they are where many “reliable” rural networks quietly earn or lose their reputation. The beam can be perfect and the link still fail if the ladder that holds it is moving or the power feeding it is marginal.

Channel planning and interference discipline

Clean spectrum is a gift you can squander with careless channel choice. On 6 GHz rural links, a few habits keep the band clean over the long run:

• Plan the whole region, not one link. If you operate several bridges, co-ordinate the channel plan across all of them so adjacent links do not step on each other’s channels.
• Match channel width to need. Wider channels move more data but consume more of the band and are more exposed to interference. Choose the narrowest width that still meets the throughput requirement.
• Respect co-sited radios. The near-end self-interference problem on a shared tower is real: keep vertical separation of a few metres and horizontal separation of about 1.5 m between stacked units, and avoid facing a transmitter’s sidelobes into a co-sited receiver.
• Watch for radar and dynamic events. Some 6 GHz sub-bands share with incumbent services and can trigger interference-avoidance events; design so a channel change is the exception, not the norm.

Channel planning is the quietest way to convert a “fast but flaky” link into one that behaves itself for years. It costs nothing at install and prevents the most common class of post-deployment complaints.

Monitoring, alerting, and the maintenance rhythm

A rural bridge that cannot report its own health is a problem you will discover late. The monitoring discipline has three parts:

1. Baseline it. Capture a reference RSSI, throughput, and latency at install so later drift has something to compare against.
2. Alert on trends, not just outages. A slow degradation — a couple of dB every month — is far more useful than a hard down event, because it points to a mechanical or seasonal problem you can fix before the link fails.
3. Schedule physical checks. Re-tighten fasteners, re-inspect sealing, and clean the dish on a calendar, not in response to an incident. Alignment drift and water ingress are slow, patient failures.

The reliable rural network is not the one that never has an issue; it is the one that notices the issue early and has someone on the road to it. Monitoring is that early-warning layer, and it is where operators who treat the link as “set and forget” pay the price in community-facing outages. When a link matters to the people behind it, the small effort of a baseline, a threshold alert, and a seasonal walk-around is repaid many times over in avoided downtime.

The 6 GHz band itself: why it wins and where it trips

6 GHz is attractive for P2P bridges because it offers a large amount of relatively clean spectrum compared with the crowded 2.4 GHz and lower 5 GHz ranges. For rural links this means wide channels and, often, less interference from neighbouring networks. That said, the band has two features that trip unprepared operators:

• Regulatory complexity. In many regions 6 GHz is tiered: some sub-bands are open to low-power unlicensed use, while others require automated frequency coordination (AFC) or are reserved for licensed point-to-point (P2P) operators. The specific channel, power, and coordination rules differ substantially between the United States, Europe, and APAC markets. Confirm the rules for your market before ordering channel-width or transmit-power configs.
• Higher frequency behaviour. At 6 GHz, rain and foliage attenuate the signal more aggressively than at 2.4 GHz. The clean spectrum is won at the price of needing a more disciplined link budget — the exact reason Phase Two matters more here than on a short indoor hop.

The practical consequence is that 6 GHz is an excellent tool when deployed within its rules and budgeted honestly, and a painful one when an operator assumes its ISM-band habits carry over. For a companion look at how frequency policy shapes other radio builds on the same site, the V2X and vehicular networking guide and the Wi-Fi 7 overview examine adjacent spectrum decisions.

Choosing the bridge hardware

Once the link budget closes, hardware choice comes down to matching the radio and antenna to the specific path rather than to a marketing headline. A practical selection checklist:

• Frequency plan support. Confirm the device actually covers the exact 6 GHz sub-band and power limits your regulator allows for your deployment class, not just “supports 6 GHz.”
• Gain that matches the distance. Choose dish gain that delivers the fade margin you computed. Oversized dishes cost alignment difficulty and wind load; undersized ones leave you short on margin.
• An integrated or remote radio. Rack the radio close to the antenna to minimise cable loss — every decibel of jumper loss is decibels taken straight from your margin.
• Environmental rating. Prefer hardware with an industrial temperature grade and a sealed enclosure rated for the region’s extremes. This mirrors the lesson in the industrial module temperature guide: the temperature grade on the datasheet, not the headline throughput, decides whether the link survives the summer.
• Management and monitoring. Build in an interface that reports RSSI, throughput, and hardware health remotely. You cannot maintain a link you cannot see.

Take the time to confirm these three issues — regulation, gain, and sealing — before climbing, because each is far harder to fix after the unit is bolted to a pole.

A note on how much to buy versus how much you need: it is tempting to buy the highest-gain dish on the shelf “just in case.” But every decibel of extra gain arrives with a narrower beam, more demanding alignment, and more wind load on the mount. The disciplined purchase is the one that closes the link with a solid margin — not the one that adds margin you will then forfeit to a poorly aligned, wind-shaken dish. Match the hardware to the computed budget and to the practical realities of the site, and you will get more dependable years out of a modest rig than out of an oversized one bolted up in a hurry.

What to do when line of sight fails

Not every path is recoverable, and an honest assessment up front saves months. When a direct bridge cannot close the link, the standard fallbacks, in rough order of preference:

1. Add a relay site. A small repeater or a second P2P hop around the obstruction converts one long path into two shorter, clearer ones.
2. Raise the mount. If the obstruction is a near-field tree line, extra tower height can clear the Fresnel zone without a new hop.
3. Change the path geometry. Move the site laterally along a ridgeline so the direct beam avoids the obstacle instead of boring through it.
4. Drop to a lower band. A 5 GHz or even 2.4 GHz link obeys more forgiving foliage attenuation, at the cost of less clean spectrum — sometimes the right trade when trees are unavoidable.

The point is not to exhaust every option blindly but to know which lever actually fixes this failure. A link that is short on margin and short on clearance needs a different answer than one that merely has trees filling the first Fresnel zone.

A worked example: a farm link across a valley

To tie the phases together, run a small scenario end to end. Imagine connecting a remote farmhouse to a village, with the path crossing a shallow valley and a standing treeline partway along the route:

• Survey (Phase One). The direct distance is 8.5 km at 6 GHz. The first Fresnel radius works out to roughly 10 m, and a check along the profile finds a ridgeline tree standing about 5 m into that zone during summer. That single finding is enough to say the path is marginal before any math.
• Budget (Phase Two). Free-space path loss for 8.5 km at 6 GHz is about 126 dB. With two 33 dBi dishes and 30 dBm, plus roughly 2 dB of combined cable loss, the expected RSSI lands near −32 dBm, a very large margin against a −95 dBm receiver.
• Accounting for the tree (Phase Three/Seasonal). That comfortable margin is exactly what the treeline is about to eat. Another 12–15 dB of summer foliage on top of the ideal figure still leaves the link working, but with far less safety headroom. The defensible move is either a few extra metres of mast to clear the zone or a small lateral shift of the farm mount to get the beam past the tree line.
• Decision. Rather than accept a link that works only in winter, raise the far mount 4 m. That cheap mechanical change buys back most of the lost clearance and turns a seasonal gamble into a dependable year-round link.

This is what the whole guide reduces to: collect the geometry, run the numbers, and then let the two together tell you where the honest fix is — usually in the clearance or the margin, not in a bigger radio.

The complete field checklist

Bring discipline to the site with a checklist that covers every phase at once:

Most rural-bridge failures are found on this list: a survey done in the wrong season, a fade margin never actually computed, a connector sealed on a sunny day and forgotten. Run the checklist honestly and the link tends to run for years.

If you take only three things from the whole guide, let them be these: clearance is the cheapest range you will ever buy, so never trade it away for a bigger radio; the fade margin is the real specification, so compute it with the actual cable, connector, and dish numbers; and the link is a mechanical system with a radio on it, so seal, torque, and monitor it the way you would maintain any piece of infrastructure that has to survive a decade of weather.

Frequently asked questions

How far can a 6 GHz wireless bridge reach?

Range is decided by line of sight and the link budget, not by the radio alone. A 10 km link at 6 GHz with 30 dBm of transmit power and 33 dBi dishes at each end closes with roughly 62 dB of fade margin. The working target is at least 20 dB of margin; below that, fix the link on paper before climbing.

How do you calculate a point-to-point wireless link budget?

Free-space path loss is about 92.45 + 20·log₁₀(distance in km) + 20·log₁₀(frequency in GHz), then RSSI = transmit power + TX antenna gain − path loss + RX antenna gain − cable loss. Budget the fade margin against the worst reasonable season — add roughly 0.3 dB/km for heavy rain and a few extra dB for leafy summer canopy.

Does 6 GHz travel farther than 5 GHz or 2.4 GHz?

No — 6 GHz attenuates more aggressively in rain and foliage than 2.4 GHz, and it needs less Fresnel clearance for the same distance because the zone narrows with frequency. Its real advantage is clean, uncrowded spectrum and wide channels for rural links, not raw propagation. Budget the link honestly and the band wins.

What Fresnel zone clearance does a long bridge need?

Use the Fresnel radius r = 8.657 × √(d / f) with d in kilometres and f in GHz, and keep about 60% of the first Fresnel zone clear. For a 6 GHz link over 10 km that is roughly 11 m of clearance above the tallest obstacle — a real number to write down before choosing mount points.

What causes a rural wireless bridge to fade in summer?

Rain attenuation (roughly 0.3 dB per kilometre in heavy rain) plus wet, leafy foliage can remove 10–15 dB of signal that was not present when trees were bare. A link that passes a winter survey with 20 dB of margin can fall below threshold by midsummer, so size the fade margin against the worst reasonable season.

Glossary

P2P bridge

— Point-to-point wireless link; two radios connected by a focused beam across a fixed, clear path.

Fresnel zone

— The invisible elliptical volume around the direct path that must stay clear for a clean signal; the first Fresnel zone is the critical one.

Line of sight

— An unobstructed straight path between the two antennas (not necessarily a visible sightline).

Link budget

— The arithmetic balancing transmit power, gains, losses, and receiver sensitivity to yield a fade margin.

Fade margin

— The decibels of cushion between expected received signal and the receiver’s sensitivity threshold.

EIRP

— Effective Isotropic Radiated Power; the combination of transmitter power and antenna gain that regulators limit.

Free-space path loss

— The theoretical signal loss over distance in clear air; the baseline before fading and occlusion.
