WiFi 7 (802.11be) 4×4 MU-MIMO 6GHz Single Band Module QCN6274/QCN9274 WLE7000E6
Qualcomm QCN6274 ‘Waikiki’ series for Commercial Grade Qualcomm QCN9274 ‘Waikiki’ series for Industrial Grade MiniPCIe Interface with PCIe 3.0 Based on WK01.6 reference design Supports up to 4096-QAM -20°C to 70°C operating temperature
WLE7000E6 – WiFi 7 (802.11be) 4×4 MU-MIMO 6GHz Single Band Module
Product Overview
WLE7000E6 is a high-performance single-band 6GHz WiFi 7 (802.11be) module based on Qualcomm’s QCN6274/QCN9274 ‘Waikiki’ series, featuring 4×4 MU-MIMO with up to 11.53Gbps throughput for enterprise and industrial applications.
Key Overview
Target Users：Enterprise network integrators, industrial IoT solution providers, network security appliance manufacturers, transportation system developers, SMB networking equipment vendors.
Core Strengths：WiFi 7 (802.11be) with 4096-QAM, OFDMA, Multi-Link Operation (MLO), preamble puncturing, and 320MHz channel support. 4×4 MU-MIMO architecture for extended signal coverage and multi-user capacity. FIPS L2 cryptographic security available on QCN9274.
Typical Applications：Enterprise APs, Industrial IoT gateways, Transportation systems, Cybersecurity appliances, Embedded edge devices.
Hardware Interface & Pinout

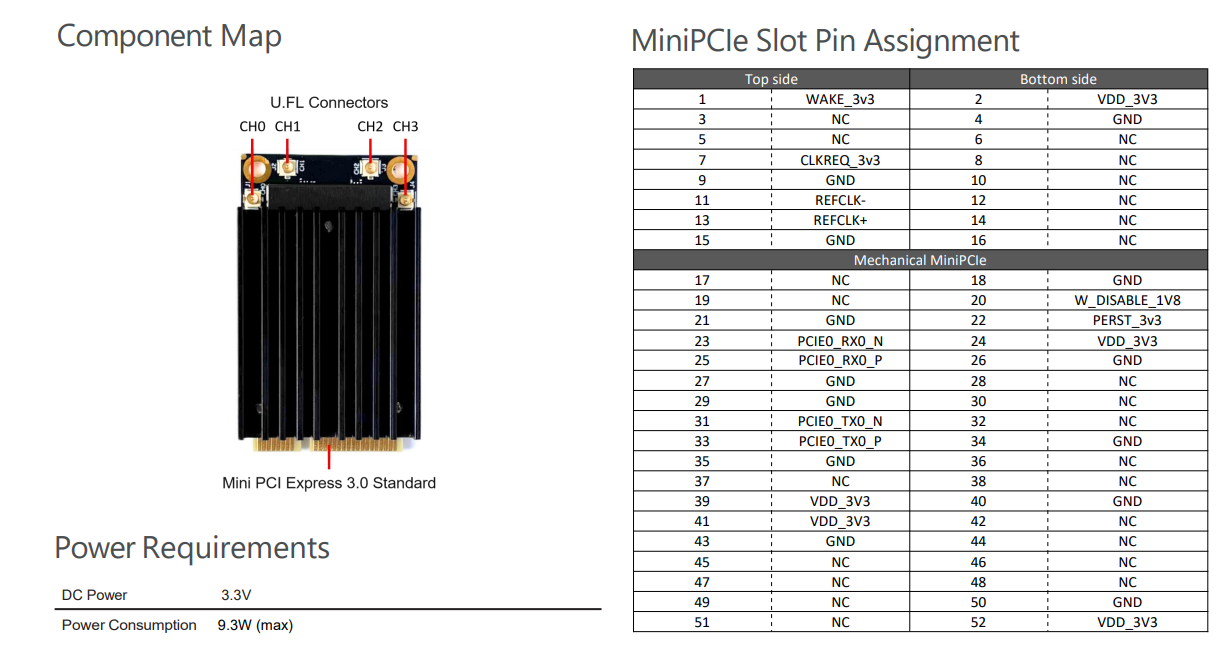

Component Map & MiniPCIe Pin Assignment
Key Hardware Features
- 4x U.FL antenna connectors (CH0~CH3) for 4T4R MIMO operation
- Standard Mini PCI Express 3.0 interface for wide platform compatibility
- Onboard heatsink for stable high-load operation
- Single 3.3V DC power supply with max 9.3W power consumption
Pinout Highlights
- PCIe 3.0 differential data lanes (PCIE0_RX0_N/P, PCIE0_TX0_N/P)
- Reference clock (REFCLK±) for PCIe link stability
- Multiple VDD_3V3 and GND pins for reliable power delivery
- Wake and reset signals (WAKE_3v3, PERST_3v3) for system integration
Technical Specifications
WLE7000E6 is a high-performance 6GHz WiFi 7 module with 4×4 MU-MIMO, delivering up to 11.53Gbps throughput. Available in both commercial grade (QCN6274) and industrial grade (QCN9274) options.
| Parameter | Specification |
|---|---|
| Chipset | Qualcomm QCN6274 (Commercial) / QCN9274 (Industrial) |
| WiFi Standard | IEEE 802.11ax/be (WiFi 7) |
| Frequency Band | 6GHz (5.925~7.125 GHz) |
| MIMO Configuration | 4×4 MU-MIMO (4T4R), 4 spatial streams |
| Max Throughput | Up to 11530 Mbps (11.53Gbps) |
| Transmit Power | Up to 17 dBm per chain |
| Channel Widths | 20/40/80/160/320 MHz |
| Interface | Mini PCI Express 3.0 |
| Antenna Connectors | 4× U.FL Connectors |
| Operating Voltage | 3.3V DC |
| Max Power Consumption | 9.3W |
| Certifications | FCC, CE RED, IC, REACH, RoHS |
Key Features
4×4 MU-MIMO Technology
Four transmit and four receive antenna configuration enables simultaneous data streams to multiple devices, significantly improving network capacity and coverage in dense environments.
WiFi 7 Advanced Features
Supports 4096-QAM for higher data rates, OFDMA for efficient channel utilization, Multi-Link Operation (MLO) for reduced latency, and preamble puncturing for improved spectral efficiency.
320MHz Channel Support
320MHz channel bandwidth enables peak PHY rates up to 11.53Gbps, providing ultra-fast wireless connectivity for bandwidth-intensive applications.
Flexible Deployment
Supports both AP and STA modes concurrently, enabling simultaneous backhaul and client connectivity. Compatible with Intel x86, NXP, Marvell, and Qualcomm platforms.
Security Features
Industrial-grade QCN9274 variant includes FIPS L2 cryptographic security, providing enhanced protection for sensitive data transmission in secure environments.
Dual Grade Options
Available in commercial grade (QCN6274) for cost-sensitive applications and industrial grade (QCN9274) for extended temperature range and rugged environments.
Target Applications
- Enterprise High-Density Access Points: 6GHz WiFi 7 with 320MHz bandwidth and MU-MIMO supports high client density and low-latency connectivity in office and campus environments.
- Industrial Wireless Bridges & CPE: 4T4R design with high transmit power enables long-range backhaul for industrial IoT and outdoor connectivity.
- Embedded & Edge Devices: Standard MiniPCIe form factor and low power consumption make it ideal for gateways, industrial PCs, and surveillance systems.
- Transportation & Rail Systems: Industrial-grade QCN9274 variant provides reliable wireless connectivity for on-board systems and trackside communication.
- Cybersecurity & Network Appliances: FIPS-compliant QCN9274 supports secure wireless communication for sensitive network environments.
Frequently Asked Questions
Q: What is WLE7000E6?
WLE7000E6 is a high-performance Single-Band 6GHz WiFi 7 (802.11be) wireless module based on Qualcomm QCN6274/QCN9274, with 4T4R MU-MIMO and MiniPCIe 3.0 form factor.
Q: What chipsets are available for WLE7000E6?
Commercial: Qualcomm QCN6274
Industrial: Qualcomm QCN9274
Q: What frequency band does WLE7000E6 support?
6GHz Single-Band (5.925~7.125 GHz).
Q: What is the MIMO configuration?
4T4R (4×4) MU-MIMO.
Q: What is the maximum throughput?
Up to 11530 Mbps (11.53 Gbps) with 4×4 320MHz channel.
Q: What is the transmit power?
Up to 17 dBm per chain.
Q: Does it support AP + STA concurrent mode?
Yes, it supports simultaneous AP and STA mode for wireless backhaul and client access.
Q: What WiFi 7 features are supported?
4096-QAM, OFDMA, Multi-Link Operation (MLO), Preamble Puncturing, 320MHz channel bandwidth.
Q: What is the power supply and power consumption?
Operating Voltage: 3.3V DC
Maximum Power Consumption: 9.3W
Q: What form factor and interface?
Form Factor: Standard MiniPCIe
Interface: PCIe 3.0
Antenna: 4× U.FL connectors
Q: Does QCN9274 support FIPS L2 encryption?
Yes, FIPS L2 cryptographic security is supported exclusively on the industrial QCN9274 version.
Q: What certifications does WLE7000E6 have?
FCC, CE RED, IC, RoHS, REACH compliant.
Q: What are the main applications?
Enterprise High-Density APs, Industrial Wireless Bridges, Embedded Edge Devices, Transportation Systems, Cybersecurity Appliances.
