Industrial WiFi6E Module (802.11ax) QCN9074 4×4 MU-MIMO 6GHz for Enterprise & IIoT WLW3000H6
- Qualcomm QCN9024 ‘Pine’ series for Commercial Grade
- Qualcomm QCN9074 ‘Pine’ series for Industrial Grade
- M.2 E-key with PCIe 3.0 Interface
- Based on PN02.6 Reference Design
- Supports up to 4096QAM
- -20°C to 70°C operating temperature for commercial grade
- -40°C to 85°C operating temperature for industrial grade
WLW3000H6 – Industrial WiFi 6E Module (802.11ax) QCN9074 4×4 MU-MIMO 6GHz
Key Overview
Target Users：Enterprise wireless infrastructure providers, Industrial IoT system integrators, Transportation wireless solution builders, Cybersecurity appliance manufacturers
Core Strengths：Qualcomm QCN9074 stable performance, 26dBm high-power FEM design, 4×4 MU-MIMO spatial streams, true interference-free 6GHz operation, FIPS L2 security (QCN9074)
Typical Applications：Enterprise 6GHz APs, Industrial IoT gateways, Long-range 6GHz backhaul, Outdoor wireless bridges, Public safety communications
Product Overview
High-power 6GHz WiFi 6E (802.11ax) single-band module based on Qualcomm QCN9074 Pine series. Features 4×4 MU-MIMO with up to 26dBm per chain using 5V high-power FEMs. Designed for interference-free long-range 6GHz backhaul and enterprise/IIoT applications with M.2 2230 E Key form factor.
Technical Specifications
WLW3000H6 delivers enterprise-grade 6GHz wireless performance with industrial reliability. Built with 5V high-power FEMs achieving 26dBm per chain for extended range coverage. Supports both AP and STA modes for simultaneous backhaul and client connectivity.
Chipset & Interface
| Parameter | Specification |
|---|---|
| Chipset | Qualcomm QCN9074 (Industrial Grade) / QCN9024 (Commercial Grade) |
| WiFi Standard | WiFi 6E 6GHz 802.11a/n/ac/ax |
| MIMO Configuration | 4×4 MU-MIMO (4T4R, 4 spatial streams) |
| Host Interface | PCIe 3.0 x1 (Gen 3, 8Gbps per lane) |
| Antenna Connector | 4× U.FL Connectors (CH0, CH1, CH2, CH3), 50 ohm impedance |
| Form Factor | M.2 Type 2230 (22mm × 30mm) E Key |
Wireless Performance
| Parameter | Specification |
|---|---|
| Max Speed | Up to 4804Mbps (4.8Gbps) at 6GHz |
| Channel Bandwidth | 20/40/80/160MHz at 6GHz |
| Frequency Range | 5.925~7.125GHz (Country dependent, refer to datasheet) |
| Tx Power | Up to 26dBm per chain (with 5V high-power FEMs) |
| Modulation | Up to 4096-QAM (OFDMA) |
Power & Electrical
| Parameter | Specification |
|---|---|
| Operating Voltage | 5V DC |
| Max Power Consumption | 16W (Max) |
| FEM Support | 5V External Power Pin for high-power FEMs |
Temperature & Environmental
| Parameter | Specification |
|---|---|
| Operating Temperature | -40°C to +85°C (Industrial Grade with QCN9074) |
| Storage Temperature | -40°C to +85°C |
Certifications
| Region | Certification |
|---|---|
| USA | FCC, REACH |
| EU Region | CE RED, RoHS |
| Canada | IC |

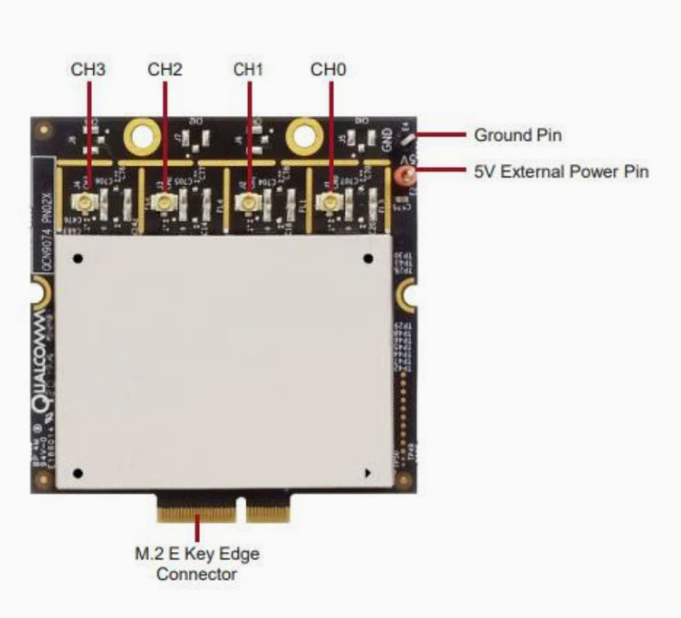

Key Components
| Component | Parameters | Function | Application |
|---|---|---|---|
| CH0-CH3 (U.FL) | 4x U.FL IPX connectors, 50 ohm impedance | Four independent RF channels for 4×4 MU-MIMO operation. Each channel supports up to 26dBm transmit power with 5V FEMs. | Connect external antennas for spatial diversity, enabling simultaneous data streams to multiple clients. Ideal for high-density environments. |
| Ground Pin | Gold-plated through-hole, chassis ground | Provides electrical grounding for EMI shielding and signal integrity. Reduces electromagnetic interference. | Critical for industrial applications requiring robust EMC compliance. |
| 5V Power Pin | 5V DC input, 3.2A max current | Supplies power to high-power FEMs. Enables 26dBm output per chain for extended range. | Required for long-range connectivity: outdoor backhaul, industrial IoT, enterprise infrastructure. |
| M.2 E Key | PCIe 3.0 x1, M.2 Type 2230 | High-speed data interface supporting PCI Express 3.0. Up to 8Gbps bandwidth. | Seamless integration with x86, ARM, embedded platforms. Mini-PCs, industrial gateways. |
Key Features
WiFi 6E 6GHz Single-Band
True interference-free 6GHz operation avoiding congested 2.4GHz and 5GHz bands. Perfect for mission-critical backhaul applications requiring clean spectrum.
4×4 MU-MIMO Spatial Streams
Four concurrent spatial streams enabling simultaneous data transmission to multiple clients. Delivers up to 4.8Gbps aggregate throughput with 160MHz bandwidth.
26dBm High-Power FEMs
5V high-power Front-End Modules deliver up to 26dBm per chain. Significantly extends coverage range compared to standard 3.3V module designs.
Dual Mode: AP + STA
Supports concurrent AP and STA modes. Can perform wireless backhaul while providing 6GHz client connectivity simultaneously.
FIPS L2 Security (QCN9074)
Hardware-level cryptographic protection unique to industrial-grade QCN9074. Essential for government and enterprise security requirements.
M.2 2230 E Key Form Factor
Compact 22mm × 30mm module with standard M.2 E Key edge connector. Compatible with mini-PCs, industrial gateways, and network appliances.
Model Variants
| Model | Chipset | Grade | Temperature | Security |
|---|---|---|---|---|
| WLW3000H6-I | Qualcomm QCN9074 | Industrial | -40°C to +85°C | FIPS L2 |
| WLW3000H6-C | Qualcomm QCN9024 | Commercial | -20°C to +70°C | Standard |
Target Applications
- Enterprise 6GHz Wireless APs and Access Points
- Industrial IoT Gateways and Wireless Sensors
- Long-Range 6GHz Point-to-Point and Point-to-Multipoint Backhaul
- Vehicle-Mounted Wireless Systems (Transportation)
- Outdoor Wireless Bridges and Coverage Extensions
- Cybersecurity Appliances with FIPS L2 Requirements
- Smart City Kiosks and Public Safety Communications
Comparison Table
| Parameter | WLW3000H6 (QCN9074) | Typical 6GHz Module |
|---|---|---|
| Chipset | Qualcomm QCN9074 | Various |
| MIMO | 4×4 MU-MIMO | 2×2 typical |
| Max Speed | 4804Mbps | 2400Mbps typical |
| Tx Power | 26dBm per chain | 20dBm typical |
| Voltage | 5V DC | 3.3V typical |
| Form Factor | M.2 2230 E Key | M.2 or MiniPCIe |
| Industrial Temp | -40°C to +85°C | -20°C to +70°C typical |
| FIPS L2 | Yes (QCN9074) | No |
Pin Assignment
The M.2 E Key edge connector provides PCIe 3.0 x1 host interface and RF connectors are brought out via U.FL pins.
| Connector | Function | Description |
|---|---|---|
| M.2 E Key | PCIe 3.0 x1 | Host interface, 8Gbps per lane |
| CH0 U.FL | RF Channel 0 | Primary 6GHz antenna |
| CH1 U.FL | RF Channel 1 | Secondary 6GHz antenna |
| CH2 U.FL | RF Channel 2 | Third 6GHz antenna |
| CH3 U.FL | RF Channel 3 | Fourth 6GHz antenna |
| 5V Pin | Power Input | 5V DC for high-power FEMs, 3.2A max |
| Ground Pins | Ground | EMI shielding and signal reference |

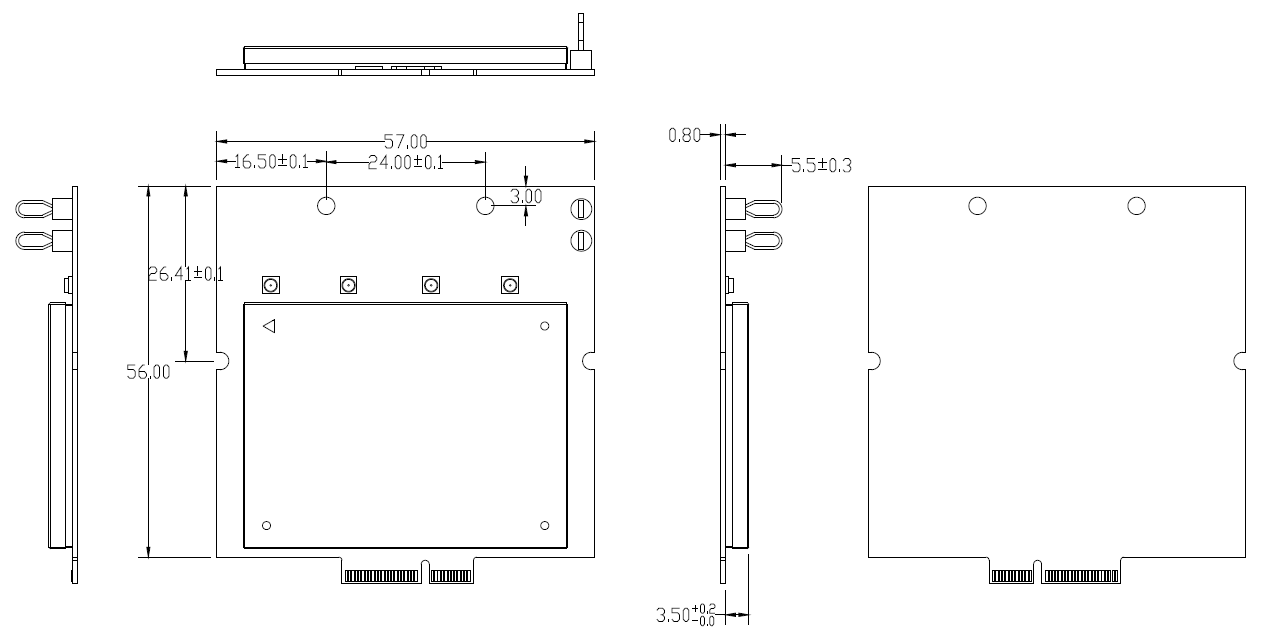

Mechanical & Electrical
| Parameter | Specification |
|---|---|
| Form Factor | M.2 Type 2230 (22mm × 30mm) |
| M.2 Key Type | E Key |
| Dimensions | 30mm × 22mm × 3.5mm (typical) |
| Operating Voltage | 5V DC |
| Max Power | 16W |
| Antenna Connectors | 4× U.FL (IPX) |
Ordering Information
| Model | Description | Chipset | Temperature | Ordering Code |
|---|---|---|---|---|
| WLW3000H6-I | 4×4 MU-MIMO, WiFi 6E, 6GHz, FIPS L2 | QCN9074 | -40°C to +85°C | WLW3000H6-I-XX |
| WLW3000H6-C | 4×4 MU-MIMO, WiFi 6E, 6GHz | QCN9024 | -20°C to +70°C | WLW3000H6-C-XX |
Frequently Asked Questions
Q: What chipset does WLW3000H6 use?
WLW3000H6 uses Qualcomm QCN9024 (commercial grade) and QCN9074 (industrial grade) Pine series chipsets.
Q: Is WLW3000H6 a WiFi 6E module?
Yes, it is a dedicated high-power 6GHz WiFi 6E (802.11ax) single-band module operating in the 5.925-7.125GHz range.
Q: What is the MIMO configuration and maximum speed?
4×4 MU-MIMO (4T4R) with 4 spatial streams, supporting up to 4804Mbps (4.8Gbps) with 160MHz channel bandwidth.
Q: What is the transmit power per chain?
Up to 26dBm per RF chain, powered by 5V high-power FEMs for long-range coverage and penetration.
Q: Does WLW3000H6 support AP and STA mode?
Yes, it supports both AP and STA modes simultaneously, enabling 6GHz wireless backhaul while providing client access.
Q: How many antenna connectors does it have?
4× U.FL (IPX) antenna connectors to support 4×4 MU-MIMO spatial streams (CH0, CH1, CH2, CH3).
Q: What is the power supply and power consumption?
Operating voltage: 5V DC. Maximum power consumption: 16W. Includes 5V power pin for high-power FEMs.
Q: Does QCN9074 support FIPS L2 encryption?
Yes, FIPS L2 cryptographic security is a unique feature of the industrial-grade QCN9074 version.
Q: What interface and form factor does it use?
M.2 E Key Type 2230 form factor with PCIe 3.0 x1 high-speed host interface.
Q: What platforms are compatible with WLW3000H6?
Not restricted to Qualcomm ecosystem. Compatible with Intel x86, ARM processors (NXP, Marvell), and other embedded platforms supporting PCIe.
