WiFi 7 (802.11be) 4×4 MU-MIMO 6GHz Single Band Module QCN6274/QCN9274 WLTE7000E6
- Qualcomm QCN6274 ‘Waikiki’ series for Commercial Grade
- Qualcomm QCN9274 ‘Waikiki’ series for Industrial Grade
- M.2 E Key Interface with PCIe 3.0
- Based on WK01.6 reference design
- Supports up to 4096-QAM
- -20°C to 70°C operating temperature
WLTE7000E6 – WiFi 7 4×4 MU-MIMO 6GHz Module
Product Overview
WLTE7000E6 is a single-band 6GHz WiFi 7 (802.11be) module based on Qualcomm QCN6274/QCN9274, delivering up to 11.53Gbps throughput with 4×4 MU-MIMO for enterprise and industrial applications.
Key Overview
Target Users：Enterprise network integrators, industrial IoT solution providers, cybersecurity appliance manufacturers, transportation system integrators, SMB networking solution providers
Core Strengths：4×4 MU-MIMO with 11.53Gbps throughput, 17dBm transmit power per chain, Multi-Link Operation (MLO), Preamble Puncturing, FIPS L2 security (QCN9274), cross-platform compatibility
Typical Applications：Enterprise high-density WiFi deployments, industrial automation, secure wireless backhaul, in-vehicle connectivity, SMB networking infrastructure
Technical Specifications
WLTE7000E6 WiFi 7 module technical specifications covering chipset, wireless capabilities, power requirements, and environmental compliance.
| Parameter | Specification |
|---|---|
| Chipset | Qualcomm QCN6274 (Commercial) / QCN9274 (Industrial) |
| WiFi Standard | IEEE 802.11be (WiFi 7), 802.11ax (WiFi 6) compatible |
| Frequency Band | 6GHz (5.925~7.125GHz), Single-band |
| MIMO Configuration | 4×4 MU-MIMO, 4 spatial streams |
| Maximum Throughput | Up to 11530Mbps (11.53Gbps), Typical |
| Transmit Power | Up to 17dBm per chain, Max |
| Channel Widths | 20/40/80/160/320MHz at 6GHz |
| Interface | PCIe 3.0 |
| Form Factor | M.2 2280, E Key |
| Antenna Connectors | 4x U.FL Connectors |
| Operating Voltage | 3.3V DC |
| Power Consumption | 9.3W, Max |
| Regulatory Compliance | REACH (USA), RoHS (EU) |
Complete Module Specifications

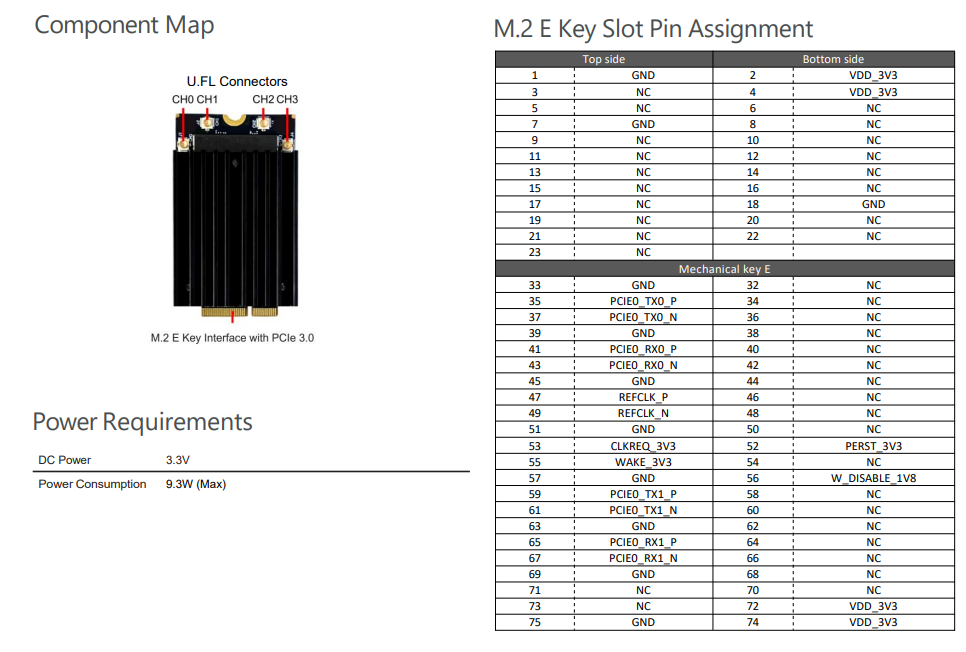

The above diagram illustrates the complete technical specifications of the WLTE7000E6 WiFi 7 module, encompassing three key sections: Component Map, Power Requirements, and M.2 E Key Slot Pin Assignment. Below is a detailed explanation of each section.
1. Component Map (Top-Left Section)
| Component | Specification | Function |
|---|---|---|
| U.FL Connectors | 4 channels (CH0-CH3) | RF antenna interfaces for 4×4 MU-MIMO |
| Interface | M.2 E Key with PCIe 3.0 | High-speed data transfer interface |
| Form Factor | M.2 2280 | Standard compact form factor |
The module features a compact M.2 form factor with an integrated heat sink for optimal thermal management. The four U.FL antenna connectors enable 4×4 MU-MIMO operation, supporting simultaneous data streams for enhanced throughput up to 11.53Gbps.
2. Power Requirements (Bottom-Left Section)
| Parameter | Specification |
|---|---|
| DC Power Input | 3.3V DC |
| Power Consumption (Max) | 9.3W |
The 3.3V design ensures wide signal coverage by providing sufficient power to the RF front-end, delivering up to 17dBm per chain. This power-efficient design is ideal for applications requiring extended wireless range while maintaining high-performance connectivity.
3. M.2 E Key Slot Pin Assignment (Right Section)
The M.2 E Key interface provides a standardized 76-pin connector for PCIe 3.0 communication. Below is a summary of the key signal groups:
| Signal Group | Description & Pins |
|---|---|
| Power | VDD_3V3 (pins 2, 4, 72, 74) – 3.3V power supply |
| Ground | GND (pins 1, 7, 19, 33, 39, 49, 55, 57, 63, 69, 73, 75) |
| PCIe Tx/Rx | PCIE0_TX0_P/N (35/37), PCIE0_RX0_P/N (41/43), PCIE0_TX1_P/N (59/61), PCIE0_RX1_P/N (65/67) |
| Clock | REFCLK_P/N (45/47) – 100MHz reference clock |
| Control | CLKREQ_3V3 (51), PERST_3V3 (52), WAKE_3V3 (53), W_DISABLE_1V8 (58) |
Key Features
4×4 MU-MIMO
Four spatial streams enable simultaneous data transmission to multiple clients, delivering aggregate throughput up to 11.53Gbps for high-density environments.
Multi-Link Operation (MLO)
Supports simultaneous connectivity across multiple channels, reducing latency and aggregating throughput for improved reliability and performance.
4096-QAM Modulation
Higher-order modulation scheme increases data density per symbol, enabling higher throughput compared to previous WiFi generations.
Preamble Puncturing
Improves spectral efficiency by allowing transmission on punctured spectrum portions when legacy devices occupy parts of the channel.
17dBm Transmit Power
High transmit power per chain ensures wide signal coverage, suitable for applications requiring extended wireless range.
FIPS L2 Security (QCN9274)
Industrial-grade cryptographic protection ensures secure wireless communications for sensitive applications.
Cross-Platform Compatibility
Works seamlessly with Qualcomm ecosystem as well as 3rd party platforms including Intel x86, NXP, and Marvell ARM processors.
AP + STA Concurrent Mode
Supports simultaneous access point and station modes, enabling both backhaul connectivity and client access in a single device.
Model Variants
| Model | Chipset | Grade | Key Features |
|---|---|---|---|
| WLTE7000E6-C | Qualcomm QCN6274 | Commercial Grade | Standard WiFi 7 feature set |
| WLTE7000E6-I | Qualcomm QCN9274 | Industrial Grade | FIPS L2 security, extended temperature range |
Target Applications
- Enterprise Networking: High-density WiFi deployments with 4×4 MU-MIMO supporting multiple concurrent clients
- Industrial IoT: Reliable wireless connectivity for industrial automation and sensor networks
- Cybersecurity Appliances: Secure high-speed wireless links with advanced encryption support (FIPS L2 available on QCN9274)
- Transportation: In-vehicle and transportation hub connectivity solutions
- SMB Solutions: Small-to-medium business networking with extended coverage
Comparison Table
| Parameter | WLTE7000E6 | WiFi 6 Module | WiFi 5 Module |
|---|---|---|---|
| WiFi Standard | 802.11be (WiFi 7) | 802.11ax (WiFi 6) | 802.11ac (WiFi 5) |
| Max Throughput | 11.53Gbps | 9.6Gbps | 3.5Gbps |
| MIMO | 4×4 MU-MIMO | 4×4 MU-MIMO | 2×2 MU-MIMO |
| Modulation | 4096-QAM | 1024-QAM | 256-QAM |
| Channel Width | 320MHz | 160MHz | 80MHz |
| MLO Support | Yes | No | No |
| Preamble Puncturing | Yes | No | No |
Ordering Information
| Model | Description | Chipset | Ordering Code |
|---|---|---|---|
| WLTE7000E6-C | WiFi 7 6GHz 4×4 MU-MIMO, Commercial Grade | QCN6274 | WLTE7000E6-C-XX |
| WLTE7000E6-I | WiFi 7 6GHz 4×4 MU-MIMO, Industrial Grade | QCN9274 | WLTE7000E6-I-XX |
For pricing and availability, please contact our sales team for B2B inquiry.
Frequently Asked Questions
Q: What is WLTE7000E6?
WLTE7000E6 is a Single-Band 6GHz WiFi 7 (802.11be) module based on Qualcomm QCN6274/QCN9274, supporting 4×4 MU-MIMO and up to 11.53Gbps throughput.
Q: What chipset does WLTE7000E6 use?
Commercial: Qualcomm QCN6274
Industrial: Qualcomm QCN9274
Q: What frequency band does WLTE7000E6 support?
6GHz only (5.925~7.125GHz), single-band dedicated high-speed WiFi 7.
Q: What is the MIMO configuration?
4T4R (4×4) MU-MIMO, 4 spatial streams.
Q: What is the maximum throughput?
Up to 11530Mbps (11.53Gbps).
Q: What is the transmit power?
Up to 17dBm per chain.
Q: Does it support AP + STA concurrent mode?
Yes, it supports AP and STA mode at the same time for backhaul and client access.
Q: What WiFi 7 features are supported?
4096-QAM, OFDMA, Multi-Link Operation (MLO), Preamble Puncturing.
Q: What is power input and consumption?
Operating voltage: 3.3V DC
Max power consumption: 9.3W
Q: What interface and form factor?
M.2 2280, M.2 E Key, PCIe 3.0, 4×U.FL antenna connectors.
Q: Does QCN9274 support FIPS L2?
Yes, FIPS L2 cryptographic security is available on industrial-grade QCN9274.
Q: What are typical applications?
Enterprise Networking, Industrial IoT, Cybersecurity, Transportation, SMB Solutions.
